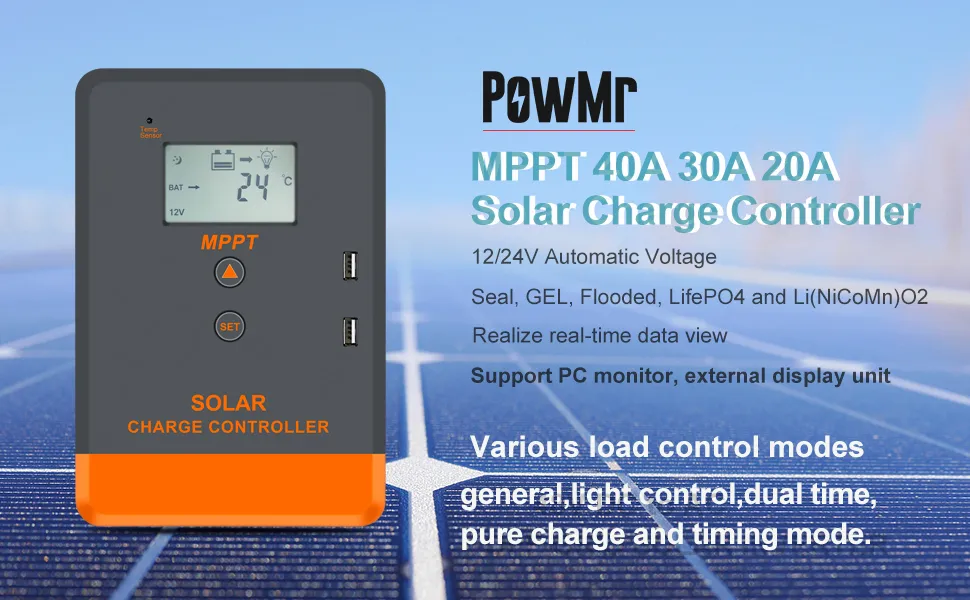

PowMr 30A MPPT Solar Charger Controller 12V 24V 75Vdc

PowMr MPPT Solar Charger Controller 30A 12V 24V Solar Panel Regulator 75V PV INPUT LCD Display Various Load Control Modes POW-Keeper1230

Technical features: Model:POW-Keeper1230

Type: MPPT Rated voltage: 12/24V

automatic Rated current: 30A PV

input power: 12V:360W, 24V:720W

System Voltage: Adaptive 12/24V

 Load current rating: 30A

Solar PV voltage: 75Voc

Optional battery types (sealed by default): user default, sealed, flooded,LiFePo4.

 Feature:

1.MPPT maximum power point tracking technology is advanced and the tracking efficiency is not less than 99.5%.

2.Using high quality components, improve the system performance, the maximum conversion efficiency can reach 97%.

3. 12/24V automatic voltage recognition.

4.Battery temperature compensation function.

5.Power statistics recording function.

 Advantage:

1.All kinds of real-time data are displayed on one screen, which is convenient for users to see.

2.The input voltage of solar panel is up to 75V, which is suitable for various specifications of solar panels.

3.The power supply adopts ultra-low power chips, which reduces standby static power consumption and power loss. 4.2 USB 5V /2A outputs for charging cell phones.

Note:Please connect the battery first, set the system parameters before connecting the solar panel, if not in order, it will damage the battery.

Ask:How to set the battery type?

Reply:

(1) Under the main interface, press and hold the "MENU" button for 3 seconds to enter the setting page, and then press the "MENU" key to switch to the battery type page (user mode 1).

(2) After entering the battery type page (user mode 1), press and hold the "MENU" key for 3 seconds to enter the battery type selection page, and press the "MENU" key or "SET" key to switch the battery type option between sealed battery, flooded battery, and lithium battery.

Thank you for selecting MPPT series solar charge controller with the most advanced MPPT control algorithm and the maximum power point of the pv array can be quickly tracked in any environment so that it can get the maximum energy from the solar panel and significantly improve the utilization of energy in solar system. The machine has the dual display function of LCD and Remote header (optional) and standard communication interface, convenient for user extension application and satisfy different monitoring needs to the maximum extent. It can be used in communication base station, home power supply system, traffic light, solar street lamp, courtyard lamp systems, etc.
