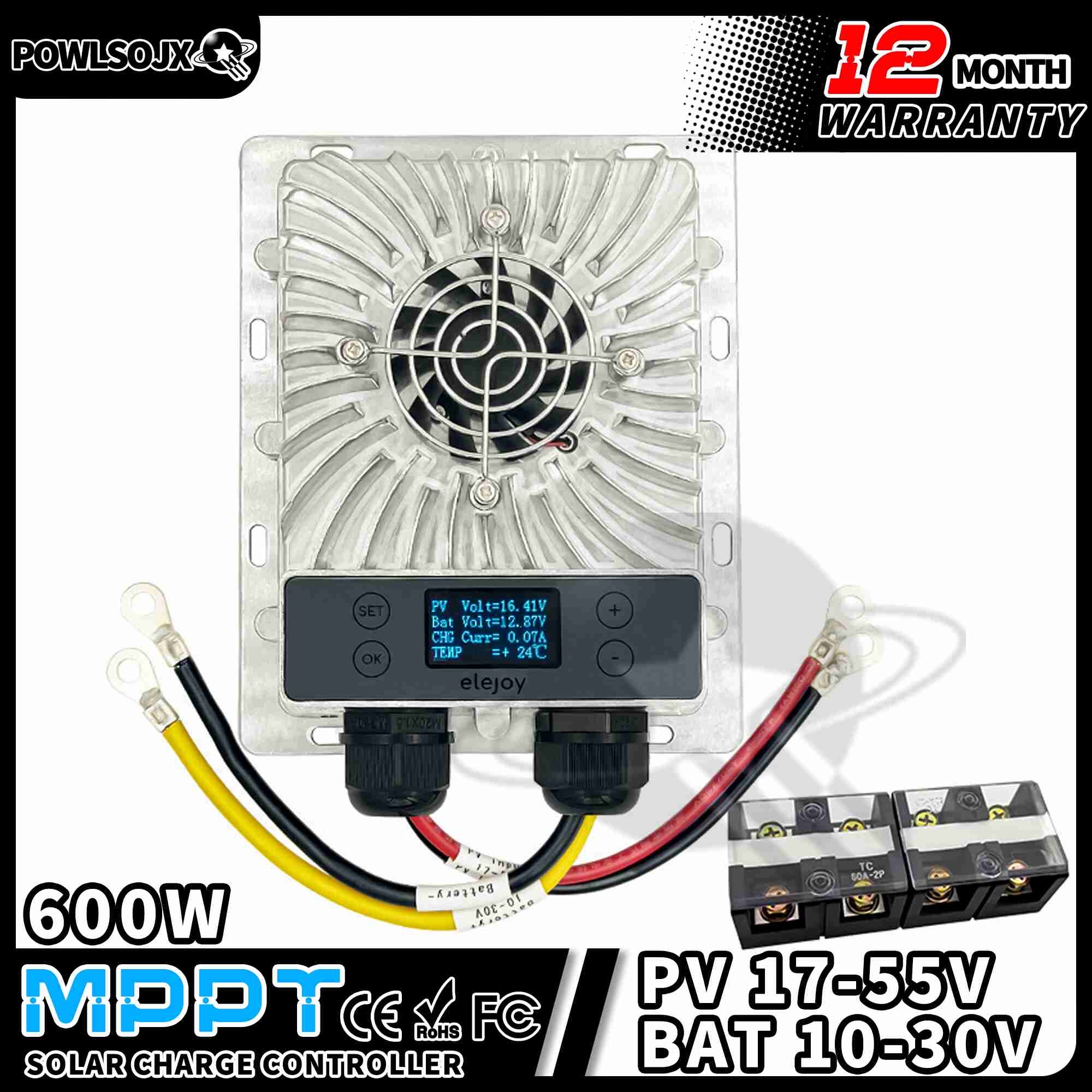

POWLSOJX 600W MPPT Solar Controller 12V/24V - Step-Down Buck Converter with Lithium Wake-Up Function - Intelligent Fan Cooling & Aluminum Heat Dissipation
Brand: POWLSOJX | Similar products from POWLSOJX
₦ 82,865
5 units left
+ shipping from ₦ 1,500 to LEKKI-AJAH (SANGOTEDO)
0 out of 5
(No ratings available)Variation available
Promotions
Delivery & Returns
The BEST products, delivered faster. Now PAY on DELIVERY, Cash or Bank Transfer Anywhere, Zero Wahala!
Choose your location
Pickup Station
Delivery Fees ₦ 1,500
Ready for pickup between 14 January and 16 January if you place your order within the next 21hrs 30mins
Door Delivery
Delivery Fees ₦ 2,500
Ready for delivery between 14 January and 16 January if you place your order within the next 21hrs 30mins
Return Policy
Free return within 7 days for ALL eligible itemsDetails
Seller Information
POWLSOJX-COD
New Seller
Be the first to follow
Seller Performance
This seller does not have enough history for us to evaluate his performance yet
Product details

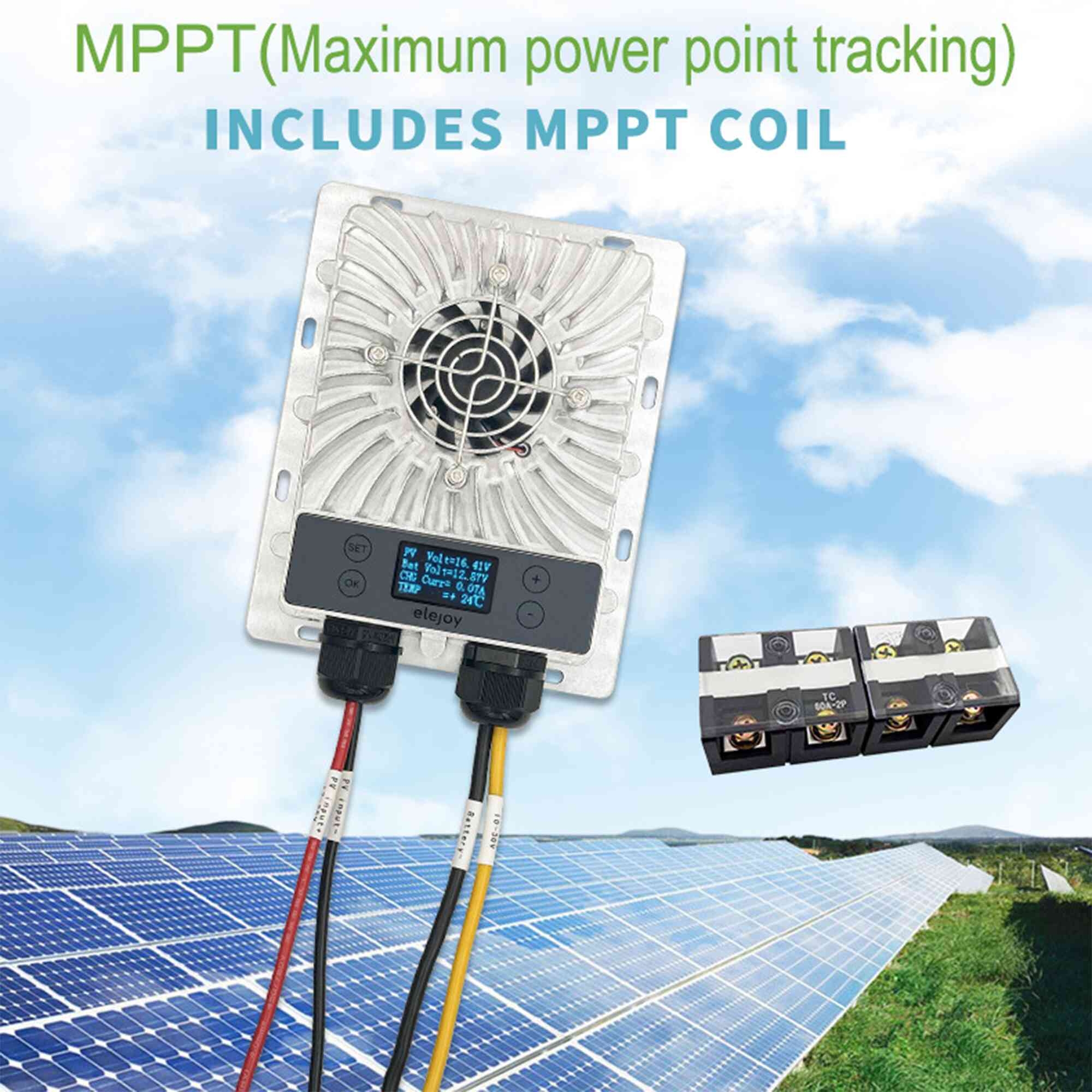

Product Overview:Upgrade your solar system with the EMD600W, a professional Step-Down MPPT Solar Charge Controller. Designed for off-grid systems, it utilizes advanced synchronous rectification technology to maximize energy harvest from your solar panels. Whether you are powering a home inverter system or a DIY project, this controller ensures your batteries are charged fast and safely.
Ultimate Efficiency: Unlike cheap PWM controllers that lose energy, our MPPT technology tracks the maximum power point with 99% efficiency. It converts excess voltage from your panels into extra charging amps.
Intelligent Thermal Management: Built for durability. The device features a rugged aluminum casing for heat dissipation. An internal fan automatically turns on when the temperature exceeds 65°C or the charging current hits 30A, ensuring stable operation even in extreme heat.
Universal Battery Support: Fully compatible with Lead-Acid and Lithium batteries. It includes a unique Lithium Activation Function to restore lithium batteries that have entered sleep mode due to over-discharge protection.

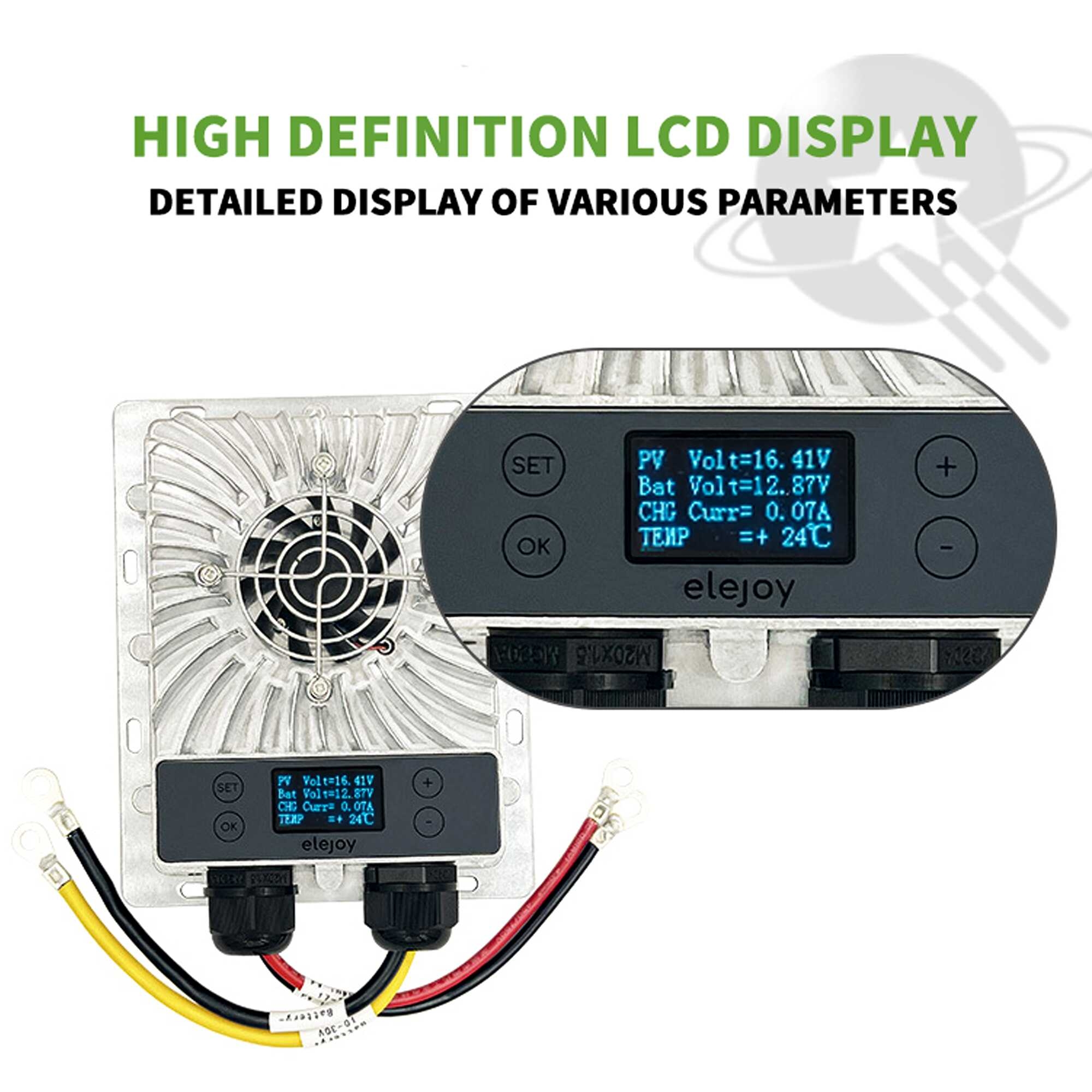

Real-Time Monitoring: The high-definition LCD screen displays critical data including PV Voltage, Battery Voltage, Charging Current, and Temperature.
⚠️ CRITICAL INSTALLATION NOTES (Please Read):
Step-Down Only: This is a BUCK (Step-Down) controller. The Solar Panel Input Voltage must be higher than your Battery Voltage by at least 1.15 times.
Example: To charge a 12V battery, your solar panel voltage must be 17V-55V.
Example: To charge a 24V battery, your solar panel voltage must be 30V-55V.
Start-Up Voltage: The controller requires a minimum PV input of 17V to start working.
Connection Order: Always connect the Battery first, then connect the Solar Panel.
Technical Specifications:
Model: EMD600W
Max Output Power: 600W
PV Input Voltage Range: 17V - 55V
Output Voltage Range: 10V - 30V (Adjustable)
Max Charging Current: 43A (12V System) / 22A (24V System)
Protection Level: IP65 (Dust & Water Resistant)
Dimensions: 172 x 138 x 47mm
Net Weight: 1050g
What's in the Box:1x MPPT Solar Charge Controller 1x User Manual 1x Connector Set
Specifications
Key Features
- True MPPT Technology: 99% tracking efficiency & 97% peak conversion efficiency. Far superior to PWM controllers.
- 600W High Power Output: Max charging current up to 43A (for 12V system) or 22A (for 24V system).
- Lithium Battery Activation: Special feature to "wake up" protected Lithium batteries. Compatible with Lead-Acid, Gel, AGM, and LiFePO4.
- Wide PV Input (17V-55V): Step-down design allows you to use high-voltage commercial solar panels to charge 12V/24V batteries.
- Smart Cooling System: All-aluminum body with an intelligent fan that auto-starts at >65°C or >30A current. Ideal for hot Nigerian weather.

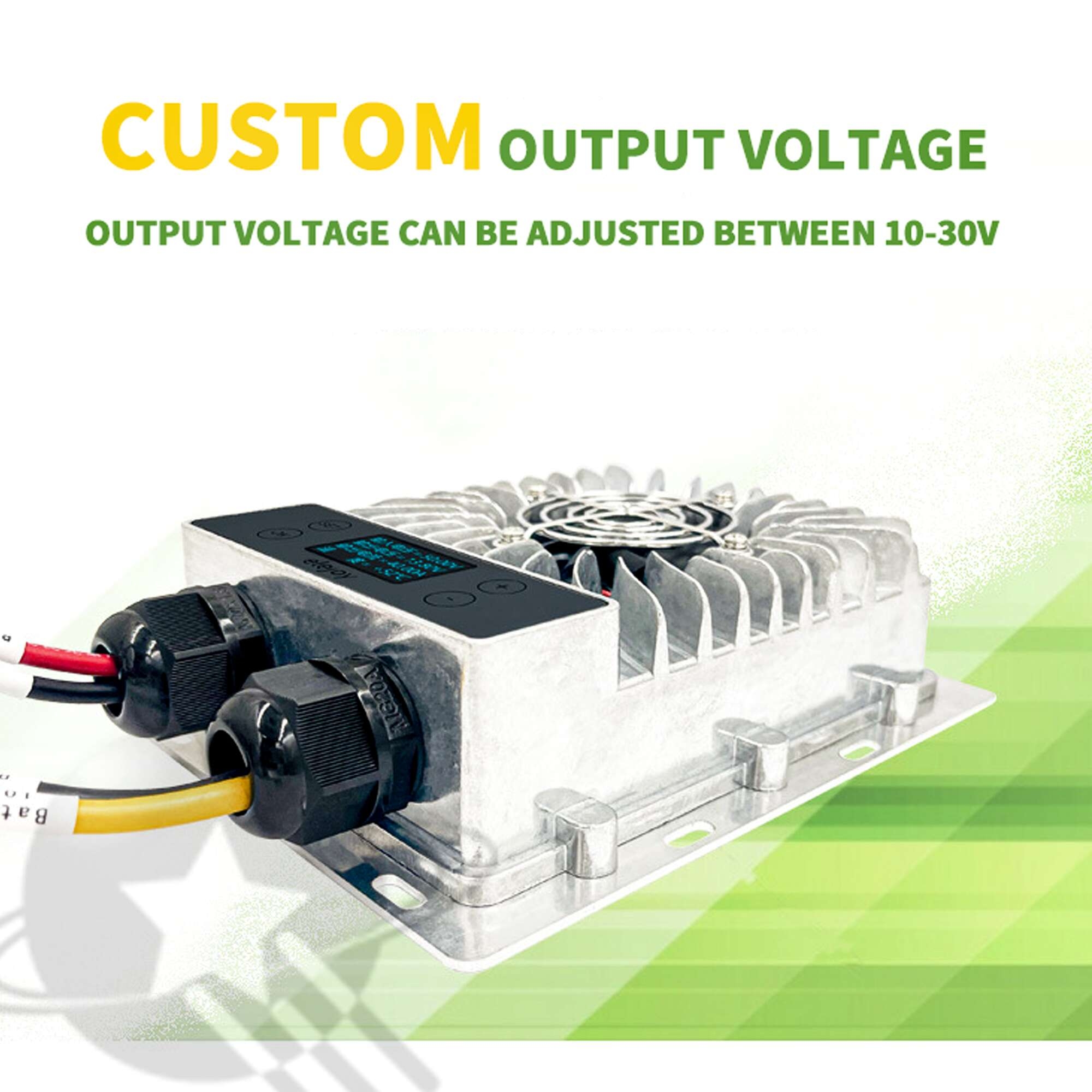

- Adjustable Output: Output voltage can be manually set between 10-30V for custom battery requirements.
Specifications
- SKU: PO192GP7X3NKZNAFAMZ
- Weight (kg): 1.25
