FDYJE

30A PWM Solar Panel Regulator Charge Controller Auto Focus Tracking USB 12/24V

₦ 7,820
₦ 14,07644%

In stock

+ shipping from ₦ 250 to LEKKI-AJAH (SANGOTEDO)

Promotions

Delivery & Returns

Free delivery on thousands of products in Lagos, Ibadan & Abuja

Choose your location

Door Delivery

Delivery Fees ₦ 620
Ready for delivery between 04 October & 05 October when you order within next 21hrs 29mins

Pickup Station

Delivery Fees ₦ 250
Arriving at pickup station between 04 October & 05 October when you order within next 21hrs 29mins

Return Policy

Free return within 15 days for Official Store items and 7 days for other eligible items.Details

Seller Information

ZPL SHOP-COD

80%Seller Score

233 Followers

Follow

Seller Performance

Order Fulfillment Rate: Excellent

Quality Score: Good

Customer Rating: Average

Product details

  • Product characteristics
  • 1. Industrial main control chip is adopted
  • 2. Large-screen LCD display; Charging and discharging current display; Query of accumulated power generation and discharge quantity; Temperature display light control + delay control; Charge and discharge parameters can be adjusted; With power off memory and other functions.
  • 3, double USB output, maximum current up to 2.5A, support iPhone charging
  • 4. Complete 3-stage charge management.
  • 5, built-in overcurrent, short circuit protection, open circuit protection, reverse protection, are self-recovery type, no damage to the controller 6, anti-backflow circuit, ultra-low calorific value.
  •

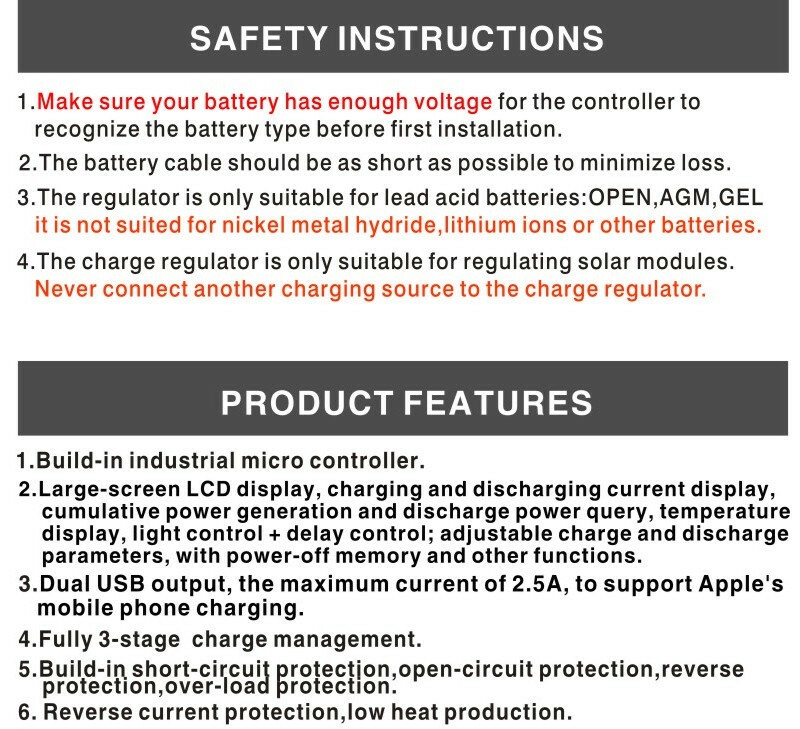

  • Suggestions for safe use
  • 1. The controller is 12V/24V automatic identification. When installing the controller for the first time, please ensure that the battery has enough voltage so that the controller can identify the correct battery type
  • 2. Install the controller as close to the battery as possible to avoid voltage drop caused by too long wire and affect normal voltage judgment
  • 3, this controller is only suitable for all kinds of lead-acid batteries (including opening, sealing, colloid, etc.)
  • 4, this controller can only use photovoltaic panel as the charging source, do not use DC or other power sources as the charging source
  • 5, the controller will be hot when running, please pay attention to the controller installed on a smooth, well-ventilated surface

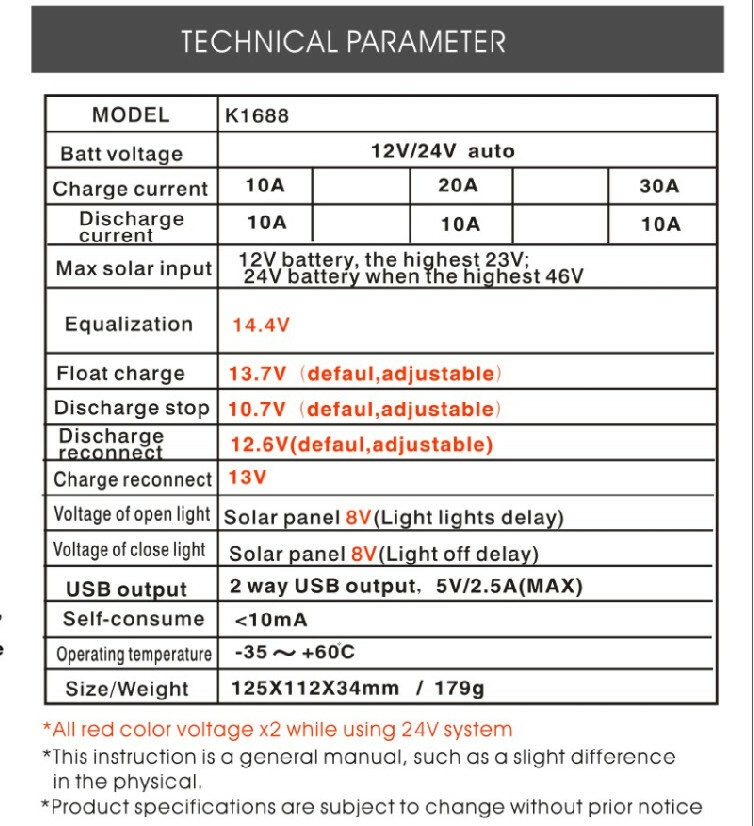

Specifications

Key Features

  • Model number: K1688
  • System voltage: 12V/24V automatic adaptation
  • Rated charging current: 30A
  • Rated discharge current: 10A

What’s in the box

solar controller*1specification*1

Specifications

  • SKU: GE779GP3L7RX5NAFAMZ
  • Product Line: ZPL SHOP-COD
  • Model: solar controller
  • Size (L x W x H cm): 13x10.5x3.8
  • Weight (kg): 0.2
  • Color: Black
  • Main Material: ABS
