Power cable for ccd camera

Start by matching the camera's DC voltage (usually 12V or 24V) and the connector size. Most CCTV cameras use a 5.5 x 2.1 mm DC plug, with both male and female variants available. Verify the current rating to ensure the power supply can meet the camera's draw. Choose the appropriate length for your setup, for example 0.5 m or 1.5 m, or use RG59 with power for longer runs. Consider buying a kit from generic brands that includes the power cable and, if needed, a splitter or power supply to cover a complete CCTV setup.

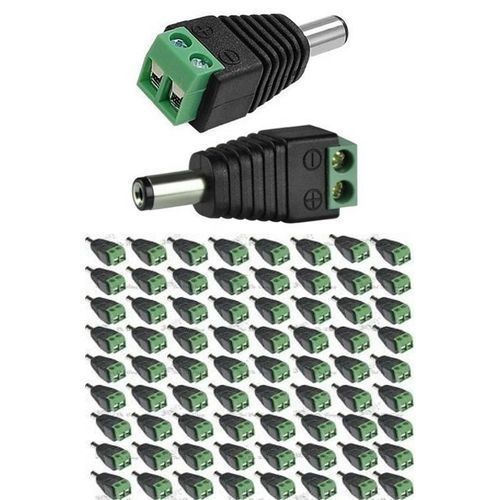

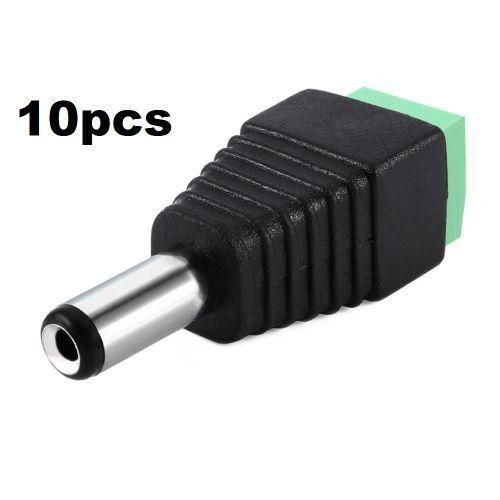

Focus on the connector size and gender to match your camera and the power supply. The most common is 5.5 x 2.1 mm with male and female ends. Make sure you have the correct pair to fit both the camera input and the power brick. If you are adding multiple cameras, consider cables that support a direct male-to-female connection or a splitter arrangement.

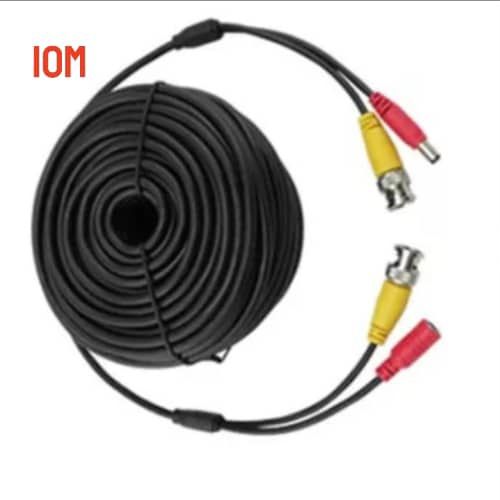

For a beginner installing a single CCD camera, a simple 12V or 24V DC cable with a standard connector is usually enough. For a professional multi-camera setup, use a DC power splitter to feed multiple cameras, and consider RG59 with power for combining power and video runs.

Start by confirming voltage and current requirements and ensuring the connector matches (5.5 x 2.1 mm). Use weatherproof or shielded cables for outdoor setups, and avoid bending or pinching cables. Unplug before cleaning and keep connections dry; store cables properly when not in use to maintain reliability.

Consider a DC power splitter to feed several cameras, a compatible power supply adapter, and long-run RG59 cables with power for integrated video and power runs. These accessories help scale from a single camera to multi-camera setups while keeping wiring clean and secure.

Measure the distance from the power source to the camera and select a gauge that minimizes voltage drop. For short runs, 18 AWG is common (as seen in standard 5.5 x 2.1 mm cables). For longer runs, opt for thicker gauge or powered extenders to maintain stable voltage to the CCD camera.
