Generator module

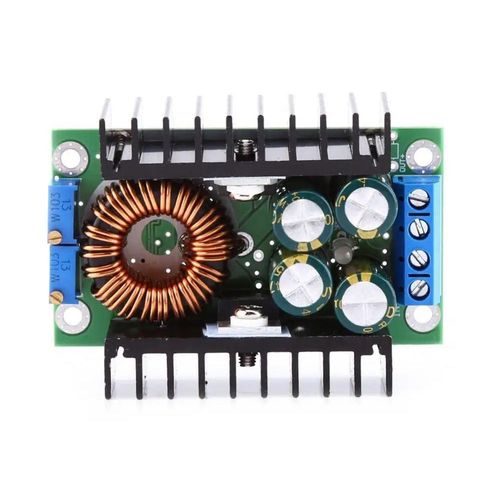

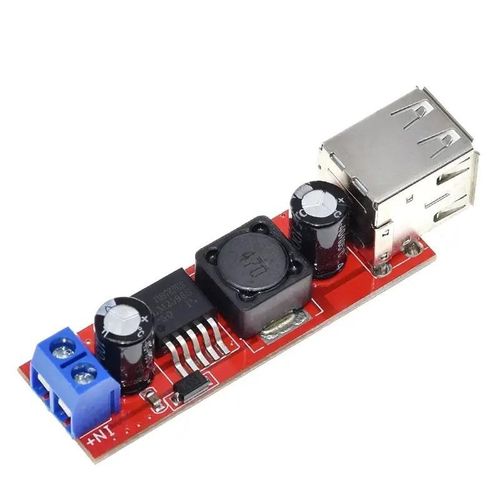

Match the generator module to your power source and load first, then confirm the module’s voltage, current, and protection features. Look for an input range that suits your generator output and an output rating that comfortably covers peak demand. Consider regulation quality, efficiency, and whether you need added features like charging, display, or communication interfaces. If you’re wiring IoT or monitoring features, pair a generator module with compatible Bluetooth or sensor modules; for simple power tasks, a straightforward DC-DC buck converter or charging module may be enough. Finally, check heat dissipation and enclosure options to keep the module reliable in your setup.

The most complex spec is voltage regulation accuracy and output ripple under load. Regulation tells you how closely the output stays to your target voltage as input or load changes, while ripple shows the voltage fluctuations you can expect. Read the tolerance and ripple figures in the datasheet or product notes, and compare them across options. Test practical performance with a multimeter or oscilloscope if possible, and choose modules with higher efficiency and adequate cooling to maintain stable output in real use.

A beginner should start with simple, well-documented generator modules that are easy to wire and offer safety features. A professional maker often integrates multiple generator modules (such as DC-DC regulation, charging, and sensing interfaces) to build a smart power system with remote monitoring. Prioritize clear pinouts, straightforward setup, and robust protection for starters, then scale up with IoT or sensor modules for advanced control. This approach keeps learning curve manageable while enabling future upgrades.

Mount the module in a ventilated enclosure and use secure, appropriately rated connectors to prevent loose wires. Verify input/output voltage levels and polarity, provide adequate heat sinking, and include fusing or protection for safety. Confirm that logic levels match for any sensor or wireless modules (3.3V vs 5V) and keep high-current paths separate from low-current signal lines to minimize noise.

Common issues include unstable output, no charging, or modules failing to communicate. Start by checking the input supply, wiring correctness, and any fuses or protection features. Inspect connections, test with a known-good load, and monitor for overheating or physical damage. For wireless or sensor modules, re-check pairing, baud rates, and sensor wiring to isolate the fault.

Look for generic, well-documented module families with clear pinouts and reliable community support. Prioritize modules that cover the common building blocks for generator systems—DC-DC converters, charging modules, and IoT or Bluetooth interfaces—as these enable flexible configurations. Favor options with good documentation and ongoing updates to ensure long-term compatibility, rather than rely on scarce or unclear specifications. This approach helps you assemble a dependable, scalable generator module setup.
