Schneider 6A, 4CO, lockable test but to n, 24V DC miniature plug in relay, Harmony Electromechanical Relays
Brand: Schneider | Similar products from Schneider
₦ 9,459
₦ 13,45930%
Few units left
+ shipping from ₦ 1,500 to LEKKI-AJAH (SANGOTEDO)
0 out of 5
(No ratings available)Variation available
Promotions
Delivery & Returns
Choose your location
Pickup Station
Delivery Fees ₦ 1,500
Ready for pickup between 02 March and 03 March if you place your order within the next 6hrs 41mins
Door Delivery
Delivery Fees ₦ 2,500
Ready for delivery between 02 March and 03 March if you place your order within the next 6hrs 41mins
Return Policy
Free return within 7 days for ALL eligible itemsDetails
Seller Information
Jet Gate Nigeria Ltd
96%Seller Score
3 Followers
Seller Performance
Shipping speed: Good
Quality Score: Excellent
Product details
| Range of Product | Harmony Electromechanical Relays |
|---|---|
| Series name | RXM series |
| Product or Component Type | Plug-in relay |
| Relay Type | Miniature relay |
| Contacts type and composition | 4 C/O |
| Status LED | Without |
| Control Type | Lockable test button |
| [Uc] control circuit voltage | 24 V DC |
| [Ithe] conventional enclosed thermal current | 6 A |
| Continuous output current | 5 A |
| [Uimp] rated impulse withstand voltage | 2.5 kV 1.2/50 µs |
|---|---|
| [Ie] rated operational current | 3 A 28 V DC) NC IEC 3 A 250 V AC) NC IEC 6 A 28 V DC) NO IEC 6 A 250 V AC) NO IEC 6 A 277 V AC) UL 8 A 30 V DC) UL |
| Minimum switching capacity | 170 mW 10 mA, 17 V |
| Electrical durability | 100000 cycles resistive |
| Rated operational voltage limits | 19.2...26.4 V DC |
| [Ui] rated insulation voltage | 250 V IEC 300 V CSA 300 V UL |
| Maximum switching voltage | 250 V IEC |
| Drop-out voltage threshold | >= 0.1 Uc |
| Load current | 6 A 250 V AC 6 A 28 V DC |
| Operating time | 20 ms |
| Maximum switching capacity | 1500 VA/168 W |
| Average resistance | 650 Ohm 20 °C +/- 10 % |
| Average coil consumption | 0.9 W |
| Mechanical durability | 10000000 cycles |
| Safety reliability data | B10d = 100000 |
| Operating rate | <= 1200 cycles/hour under load <= 18000 cycles/hour no-load |
| Utilisation coefficient | 20 % |
| CAD overall height | 3.1 in (79 mm) |
| CAD overall depth | 3.09 in (78.45 mm) |
| reset time | 20 ms |
| Dielectric strength | 1300 V AC between contacts with micro disconnection 2000 V AC between coil and contact with basic insulation 2000 V AC between poles with basic insulation |
| Compatibility code | RXM |
| Protection category | RT I |
| Pollution degree | 2 |
| Operating position | Any position |
| Test levels | Level A group mounting |
| Device presentation | Complete product |
| Contacts material | AgNi |
| Shape of pin | Flat (faston type) |
| Net Weight | 0.082 lb(US) (0.037 kg) |
| Ambient air temperature for operation | -40…131 °F (-40…55 °C) |
|---|---|
| IP degree of protection | IP40 conforming to IEC 60529 |
| Standards | UL 508 IEC 61810-1 CSA C22.2 No 14 |
| Product Certifications | UL Lloyd's CE CSA GOST IECEE CB Scheme |
| Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
| Vibration resistance | 3 gn +/- 1 mm 10…150 Hz)5 cycles in operation 5 gn +/- 1 mm 10…150 Hz)5 cycles not operating |
| Shock resistance | 10 gnin operation 30 gnnot operating |
| Category | US10CP221127 |
|---|---|
| Discount Schedule | 0CP2 |
| GTIN | 3389119403719 |
| Returnability | Yes |
| Country of origin | CN |
| Unit Type of Package 1 | PCE |
|---|---|
| Nbr. of units in pkg. | 1 |
| Package 1 Height | 0.827 in (2.100 cm) |
| Package 1 Width | 1.063 in (2.700 cm) |
| Package 1 Length | 1.890 in (4.800 cm) |
| Package weight(Lbs) | 1.235 oz (35.000 g) |
| Unit Type of Package 2 | BB1 |
| Number of Units in Package 2 | 10 |
| Package 2 Height | 1.220 in (3.100 cm) |
| Package 2 Width | 4.016 in (10.200 cm) |
| Package 2 Length | 5.000 in (12.700 cm) |
| Package 2 Weight | 13.580 oz (385.000 g) |
| Unit Type of Package 3 | S02 |
| Number of Units in Package 3 | 240 |
| Package 3 Height | 5.906 in (15.000 cm) |
| Package 3 Width | 11.811 in (30.000 cm) |
| Package 3 Length | 15.748 in (40.000 cm) |
| Package 3 Weight | 21.440 lb(US) (9.725 kg) |
Specifications
Key Features

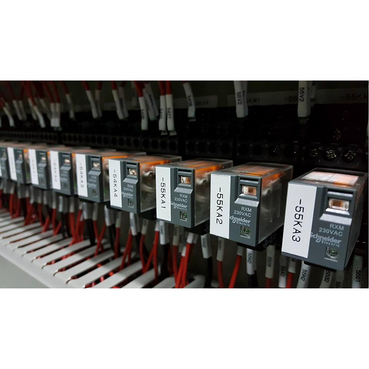

RXM miniature relays are part of Harmony Electromechanical Relays. This is a plug in relay to be mounted on a RXZE socket. It is a 4 C/O relay with current rating of 6A, control circuit voltage of 24 V DC. It also offers one-step loackable test button and mechanical indicator for contact status. The testbutton is activated momentarily by pushing the blue pushbutton on the front and locked by flipping up the green part. The mechanical indicator is next to the testbutton, where an orange flag indicates the relay contact status. Workablity for hard-wired logic automated systems to complement the functions of industrial progammable logic controllers (PLCs). Its design is fit for industrial machines, packaging, textile, HVAC, automation control panels, low/medium voltage switchgear, motor controls, PLC Interfaces, power supplies, building or medical equipment, lighting controls. It conforms to international standards and certifications like IEC, CE, UL, CSA, EAC, Lloyd's, RoHS and REACH. RXM Relay should be used with a RXZE socket (screw clamp, screw connector, push-in terminal). To protect against vibrations, plastic/metal clamp can be added to the socket. Protection modules and marking legend are also available. It is sold in lots of 10 and reference includes relay only. The RXM plug-in relays are a series of industrial plug-in relays designed for both simple and complex automation systems and available with 2 CO (12A), 3 CO (10A), 4 CO (6A) contacts, 4 CO (3A) low level contacts.
What’s in the box
miniature plug in relay, Harmony Electromechanical Relays, 6A, 4CO, lockable test but to n, 24V DC
Specifications
- SKU: SC692IP81F8W7NAFAMZ
- Production Country: China
- Size (L x W x H cm): 21 mm (width) × 27.5 mm (depth) × 36 mm
- Weight (kg): 0.037 kg
- Color: GREY
- Main Material: thermoplastic
