PowMr 60A MPPT Solar Charge Controller 12-48V Max PV 190VDC

This is PowMr MPPT solar controller, 1 year free warranty, any questions can contact us at any time, we support dealers to cooperate with us and fully cooperate.

Receive the product or have any questions during use can contact us at any time, we hope you have a pleasant shopping experience, wish you a happy lifeidad.

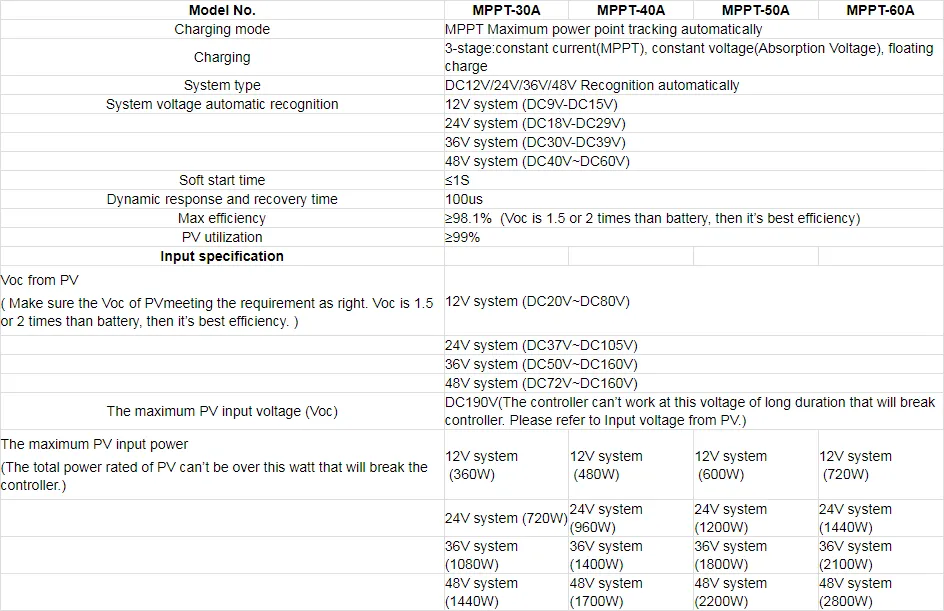

• Model: HHJ-60A
• Display type: LCD display
• Voltage: 12V/24V/36V/48V
• automatic Current: 60A
• Maximum photovoltaic voltage: 190V
• Maximum photovoltaic power: 720W/12 V,1440W/24V,2100W/36V,2800W/48V
• Housing material: aluminum alloy
• Charging mode: MPPT
• Dynamic response recovery time: 100us
• Integral efficiency: 98.1%
• Utilization rate of PV module: 99%.
• Maximum input voltage limit: DC190V
• Product weight: 1130g
• Item size: 215*115*50mm

Feature:

• 100% mppt controller
• Intelligent maximum power point tracking technology
• Integrated dsp controller with high performance
• Automatic battery voltage detection 12v/24v/36v/48v
• Three-stage charging optimizes battery performance

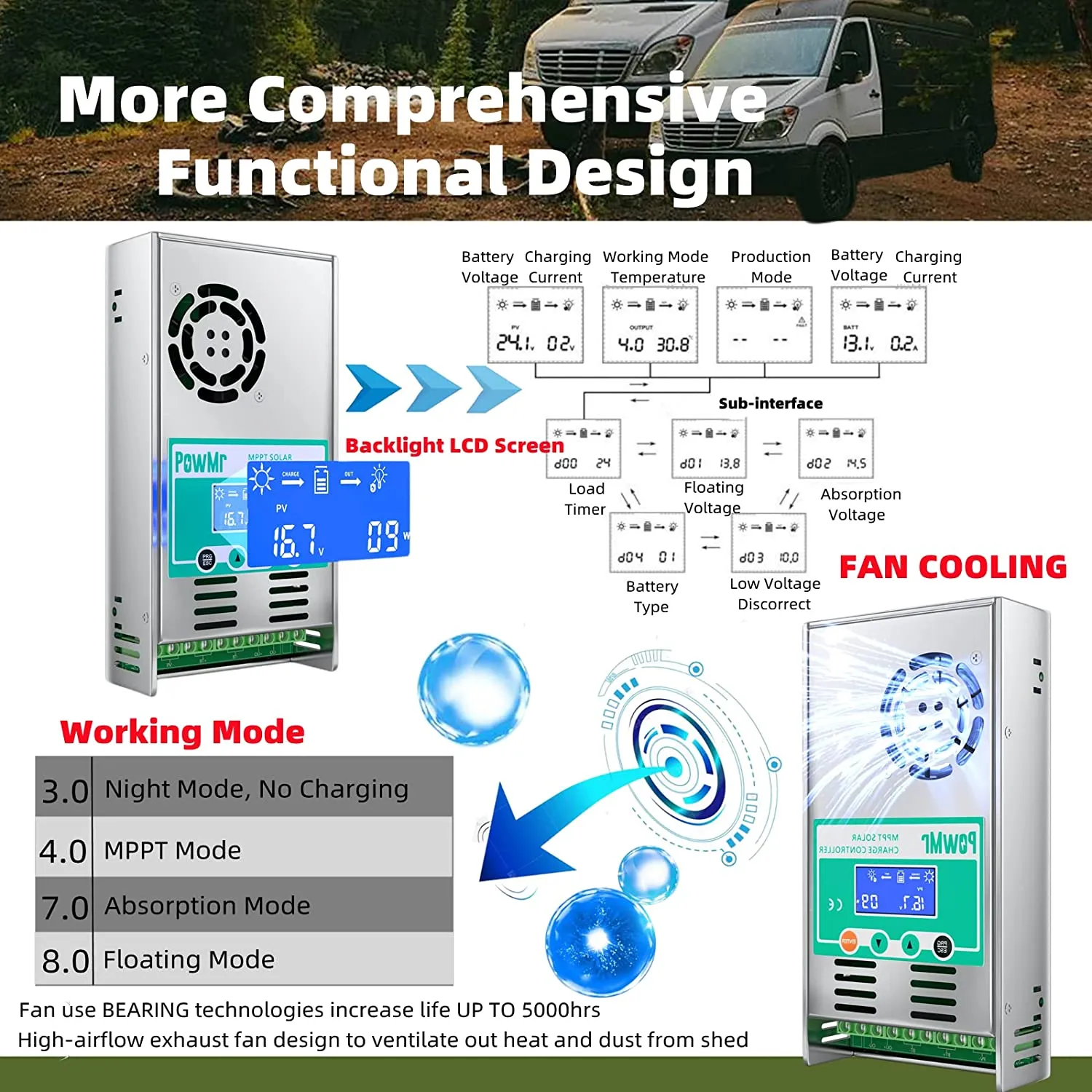

• Multifunctional LCD Displays

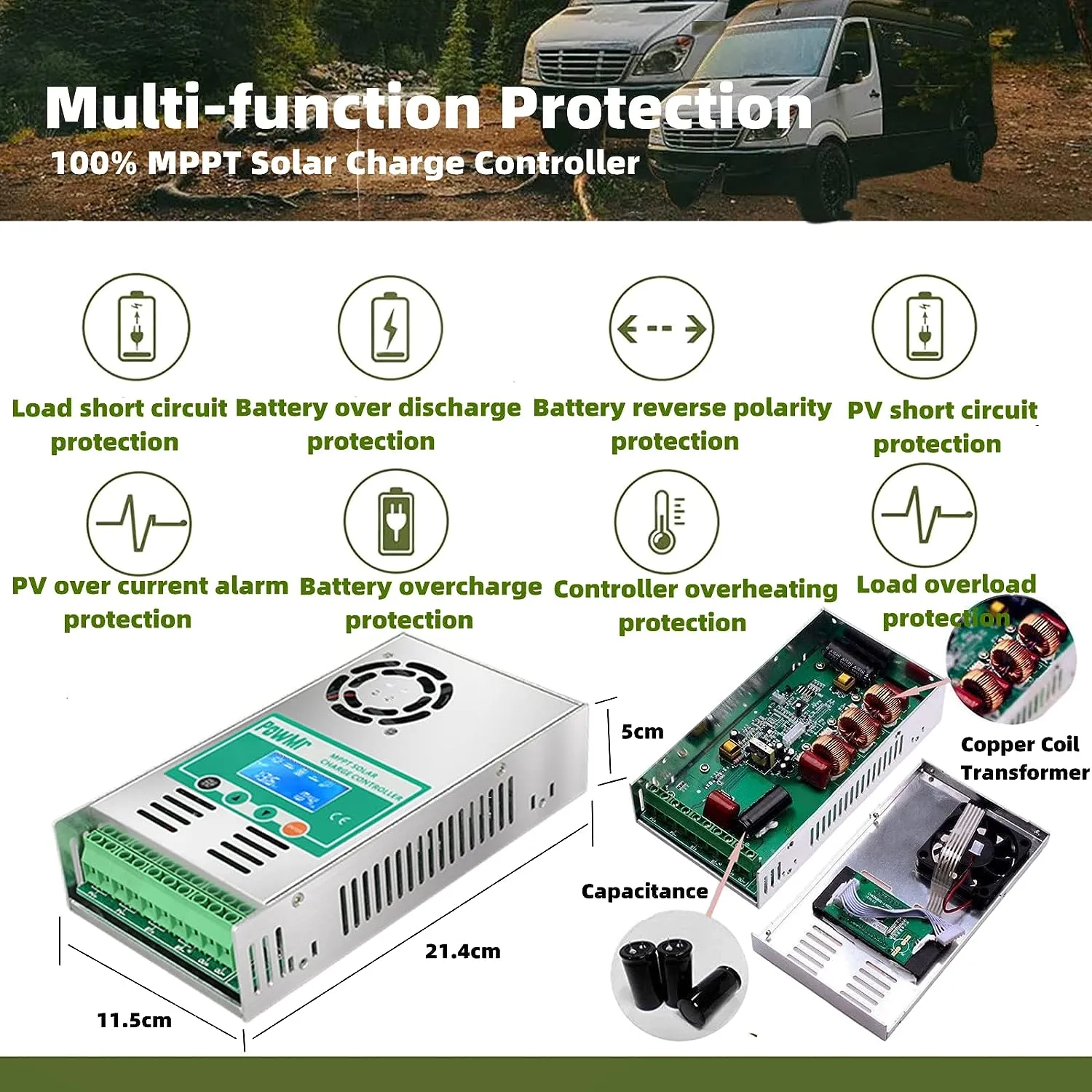

• Solar panel reverse polarity protection
• Overload protection
• Can be assembled easily
• Suitable for sealed lead acid, lithium battery types

Notes: The output terminal is for lamp only (12V system minus 60W, 24V/36V/48V system minus 100W), and will burn out if connected to other loads. The battery output has no reverse polarity protection.
