PowMr 6.2KW 120A MPPT Hybrid Solar Inverter 48V 500VOC 230V

Inverter Use Note:

The Battery Capacity OF The Correct Matching System Is Determined According To The Specific Usage Requirements OF The Load And Application Scenarios, Otherwise It will Easily Lead To Insufficient Battery Capacity Or Excessive Waste OF Power Generation.

Product features: This product can work without batteries, when you don't use the battery, the starting voltage of the solar panel is 150voc, when you connect the 48V battery, the starting voltage of the solar panel is 60voc, which means the solar system can be installed with less budget.

PowMr 6.2kw On-grid/off-grid hybrid inverter 48Vdc 230VAC PV Panel Input 500vdc Pure Sine Wave Solar Inverter 120A MPPT Solar Controller Lithium Battery

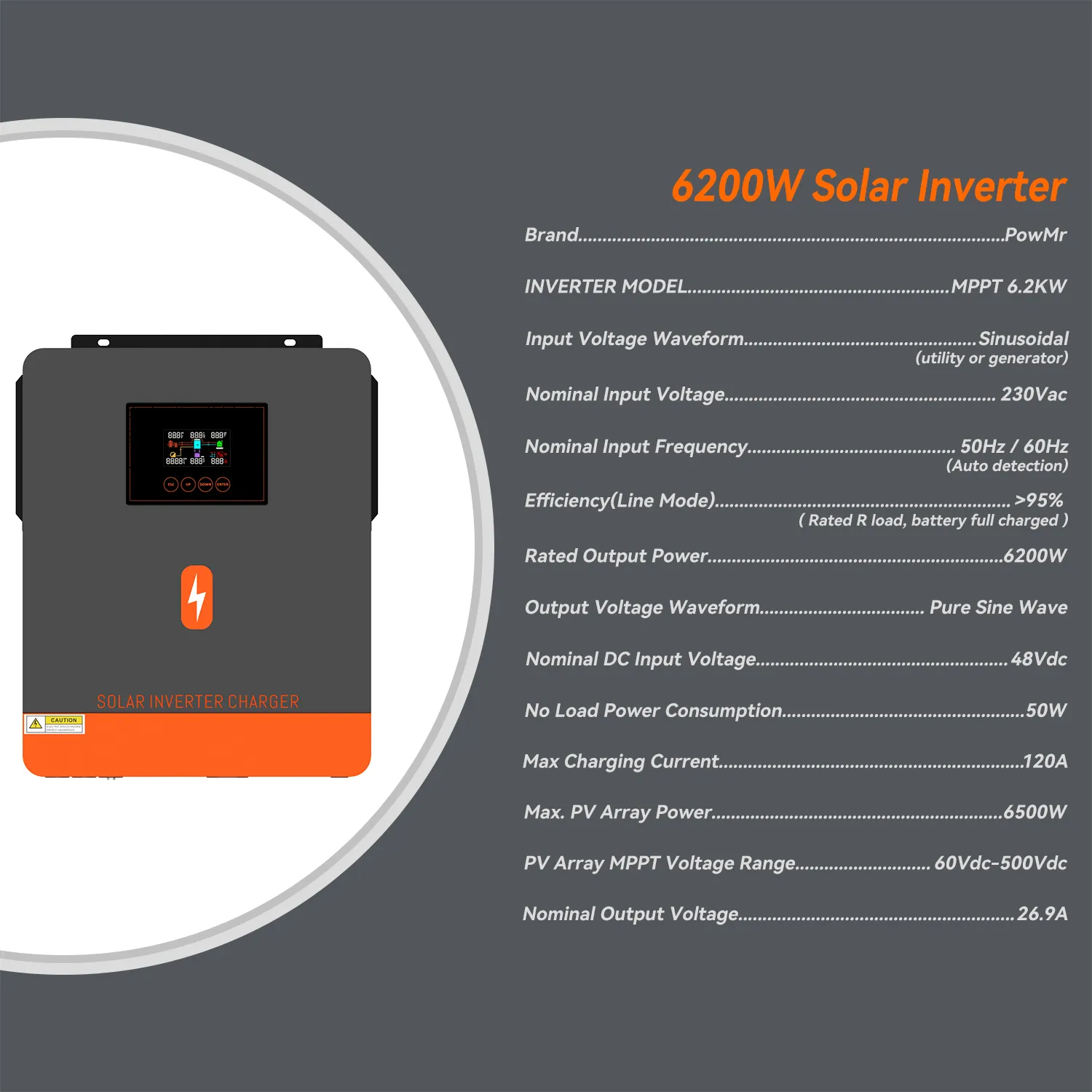

• INVERTER MODEL:POW-HVM6.2M-48V-N
• Rated output power: 6200w

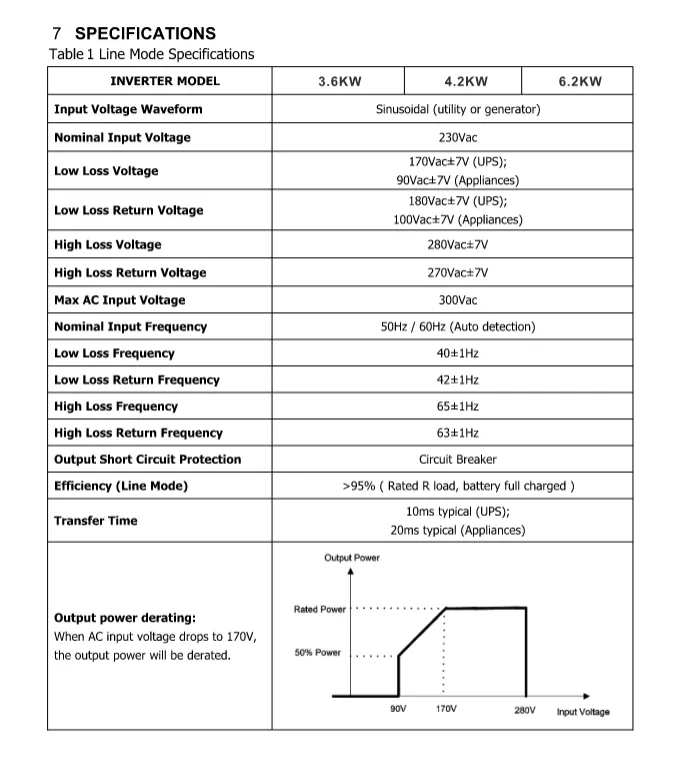

• Input Voltage Waveform: Sinusoidal (utility or generator)
• Nominal Input Voltage: 230Vac
• High Loss Voltage: 280Vac±7V
• High Loss Return Voltage: 270Vac±7V
• Max AC Input Voltage: 300Vac
• Nominal Input Frequency: 50Hz/60Hz(Auto detection)
• Output Short Circuit Protection: Circuit Breaker
• Efficiency(Line Mode):>95%(Rated R load, battery full charged
• Transfer Time:10ms typical (UPS);20ms typical (Appliances)

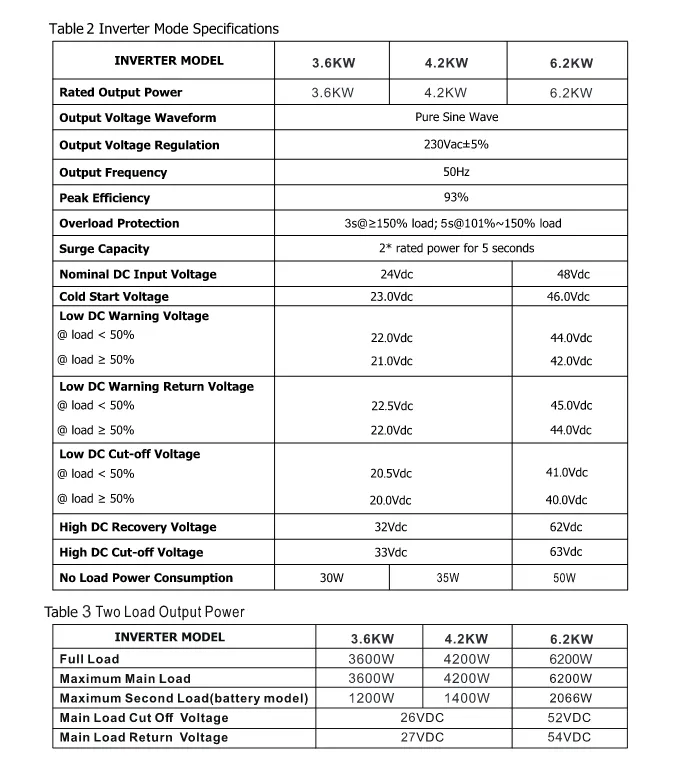

• Output Voltage Waveform:Pure Sine Wave
• Output Voltage Regulation:230Vac±5%
• Output Frequency:50Hz
• Peak Efficiency:93%
• Overload Protection:3s@>150% load; 5s@101%~150% load
• Surge Capacity:8400w for 5 seconds
• Nominal DC Input Voltage:48Vdc
• Cold Start Voltage:46.0Vdc

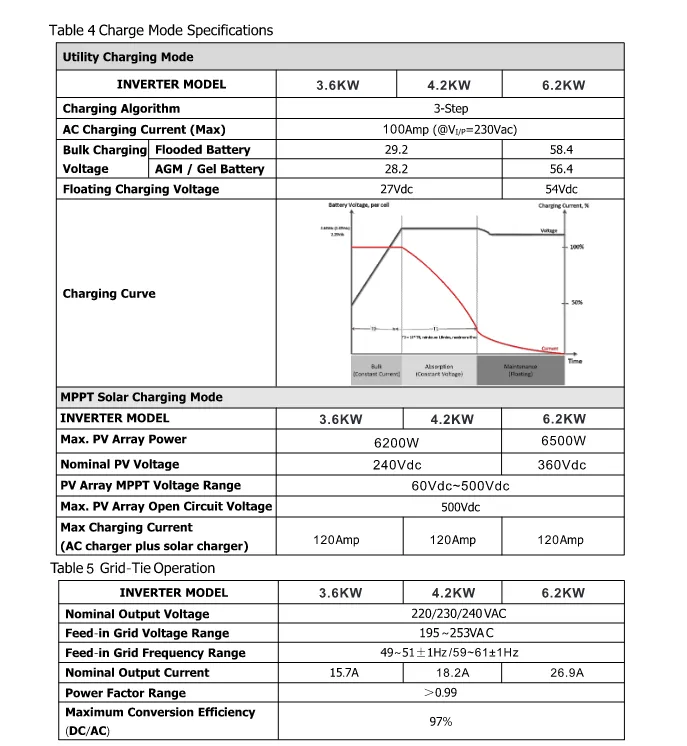

• Charging Algorithm:3-Step
• AC Charging Current(Max):100Amp(@VP=230Vac)
• Floating Charging Voltage:54Vdc
• Max. PV Array Power:6500W
• Nominal PV Voltage:360Vdc
• PV Array MPPT Voltage Range:60Vdc~500Vdc
• Max. PV Array Open Circuit Voltage:500Vdc
• Max Charging Current(AC charger plus solar charger):120A

• Nominal Output Voltage:220/230/240VAC
• Feed-in Grid Voltage Range:195 ~253VAC
• Feed-in Grid Frequency Range：50+1Hz/60+1Hz
• Nominal Output Current：26.9A
• Power Factor Range：>0.99
• Maximum Conversion Efficiency(DC/AC)：97%

Overviwe:

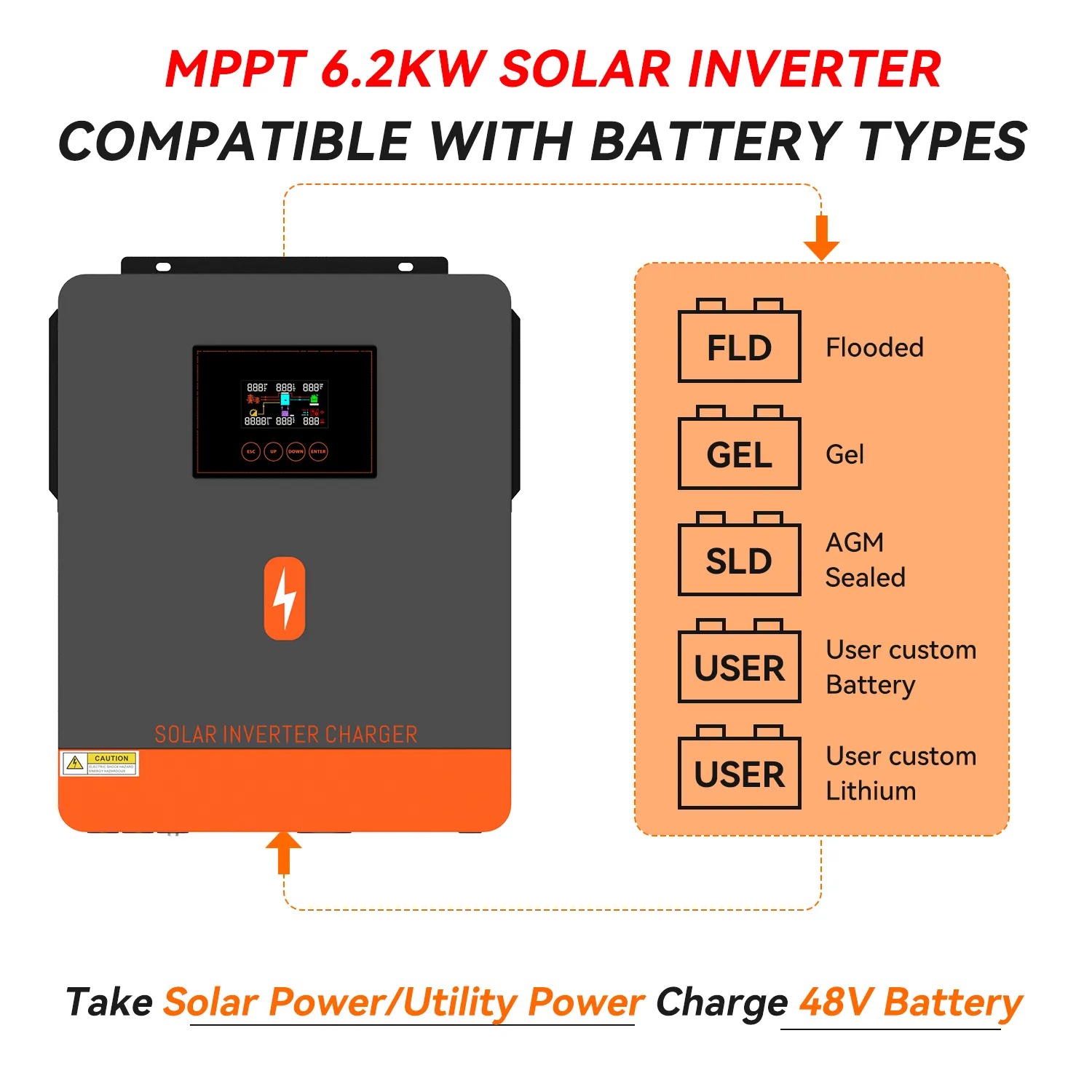

PowMr 6200W Solar Hybrid Inverter is a new hybrid solar charge inverter, which integrates solar energy storage & means charging energy storage and AC sine wave output, suitable for 48V lead acid and lithium batteries, supporting tools/generators/solar charging.This hybrid PV inverter can provide power to connected loads by utilizing PV power, utility power, and battery power.

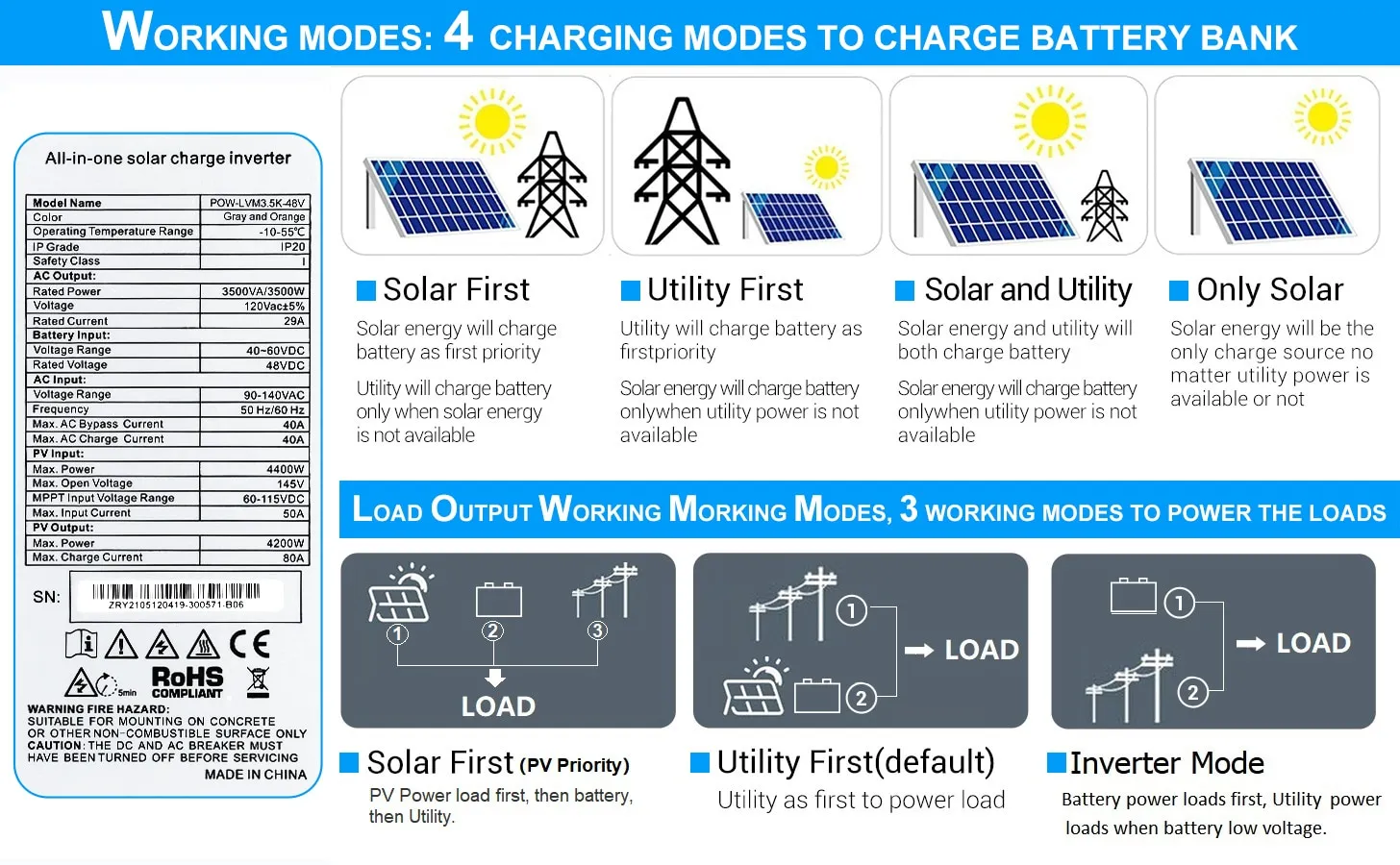

Depending on different power situations, this hybrid inverter is designed to generate continuous power from PV solar modules (solar panels), batteries, and the utility. When the MPP input voltage of PV modules is within an acceptable range (see specification for the details), this inverter is able to generate power to feed the grid (utility) and charge the battery.

Please read this manual carefully and familiarize yourself with the installation procedures before installation. If you have any questions, please contact me. We have a professional technical team to serve you.

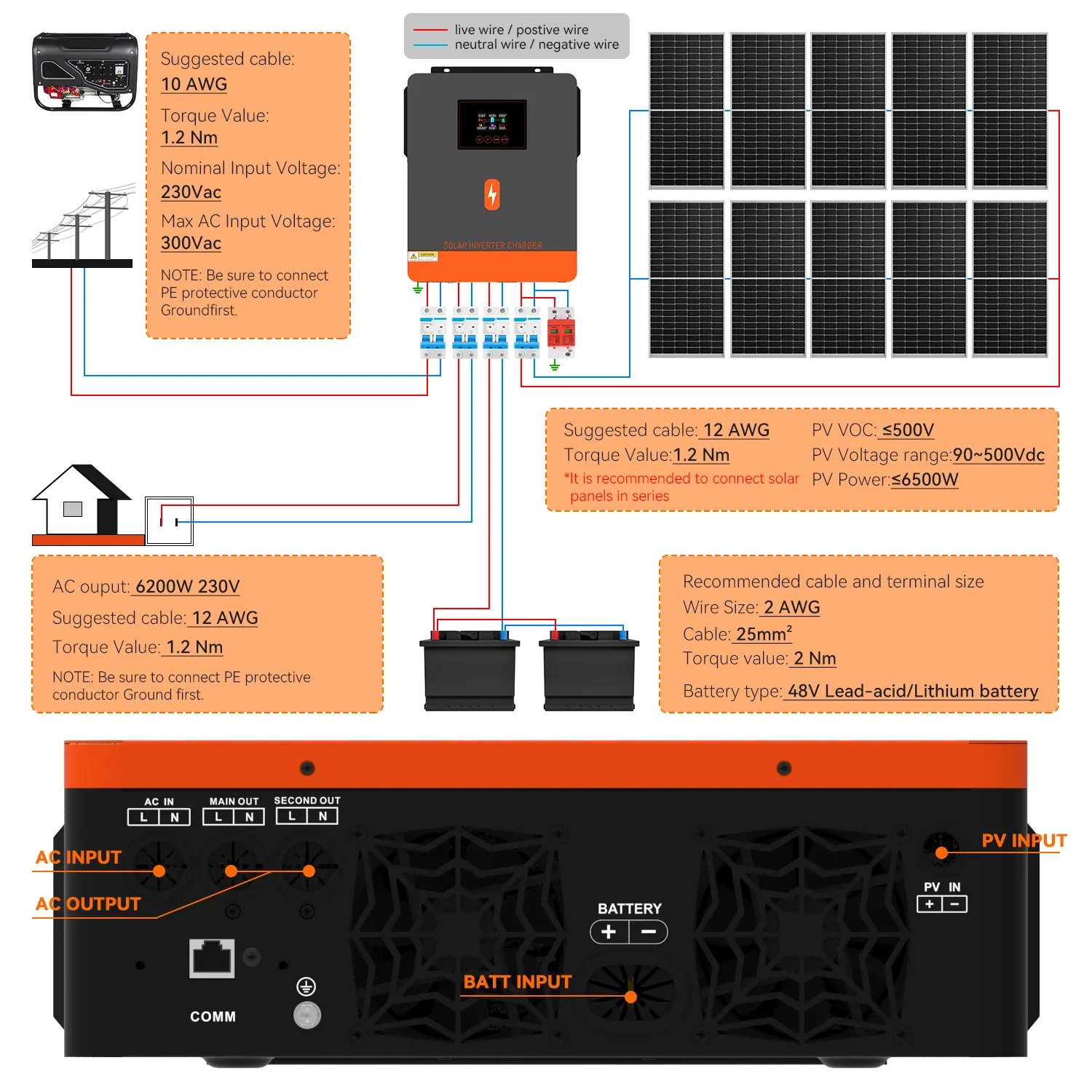

Never connect the positive and negative terminals of the solar panel to the ground.

Product Details:
