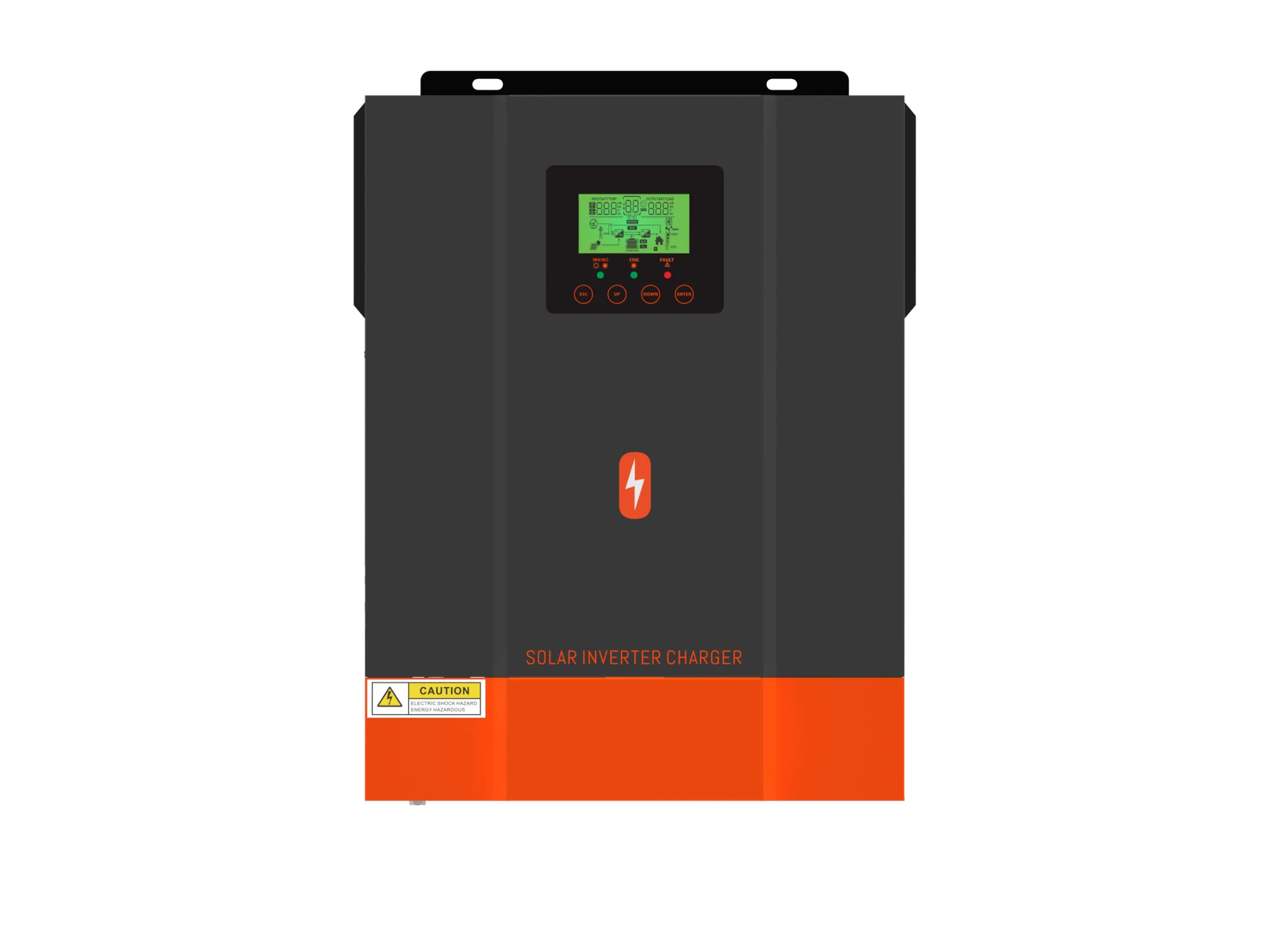

PowMr 1600W 80A MPPT Hybrid Solar Inverter 12vdc To AC 230V

PowMr 2.0kva/1600W Hybrid Solar Inverter 230Vac PV Start Voltage 30Voc Built In 80A MPPT Solar Charge Controller 50/60Hz Auto Pure Sine Wave Inverter 12vdc

Note:This is PowMr's latest hybrid inverter, its biggest feature is that the solar panel starting voltage only needs 30Voc,The battery must be connected,The lower start-up voltage means that the cost of setting up a solar system can be greatly reduced,if you are interested in this product, you can contact us at any time

• Features
• 1.Pure sine wave inverter
• 2.Configurable input voltage range for home appliances and personal computers via LCD setting
• 3.Configurable battery charging current based on applications via LCD setting
• 4.Configurable AC/Solar Charger priority via LCD setting
• 5.Compatible to mains voltage or generator power
• 6.Auto restart while AC is recovering
• 7.Overload/ Over temperature/ short circuit protection
• 8.Smart battery charger design for optimized battery performance
• 9.Cold start function
• 10WIFI/GPRS(Option)
• 11.Can connect to lithium battery

• INVERTER MODEL：POW-HVM2H-12V-N
• Input Voltage Waveform：Sinusoidal (utility or generator)
• Nominal Input Voltage：230Vac
• High Loss Voitage：280Vac+7V
• High Loss Return Voltage：270Vac+70V
• Max AC Input Voltage：300Vac
• Nominal Input Frequency：50Hz/60Hz(Auto detection)
• Output Short Circuit Protection：>93%
• Efficiency (Line Mode)：Circuit Breaker
• Transfer Time：10ms

• Rated Output Power:2000VA/1600W

• Output Voltage Waveform:Pure Sine Wave
• Dutput Voltage Regulation:230Vac士5%
• Output Frequency：50Hz
• Peak Efficiency：94%
• Overload Protection：5s@>150% load; 10s@ 100%~150% load
• Surge Capacity；3200w *5seconds
• Nominal DC Input Voltage:12Vdc
• Cold start Voltage:11.5v

• INVERTER MODEL:POW-HVM2H-12V-N
• Charging Algorithm:3-Step
• AC Charging Current (Max):60A
• Floating Charging Voltage：13.5vdc

• Max.PV Array Power：2000W
• Nominal PV Voltage:240Vdc
• PV Array MPPT Voltage Range：30-400Vdc
• Max. PV Array Open Circuit Voltage：400vdc
• Max(AC+Solar)Charging current:80A
