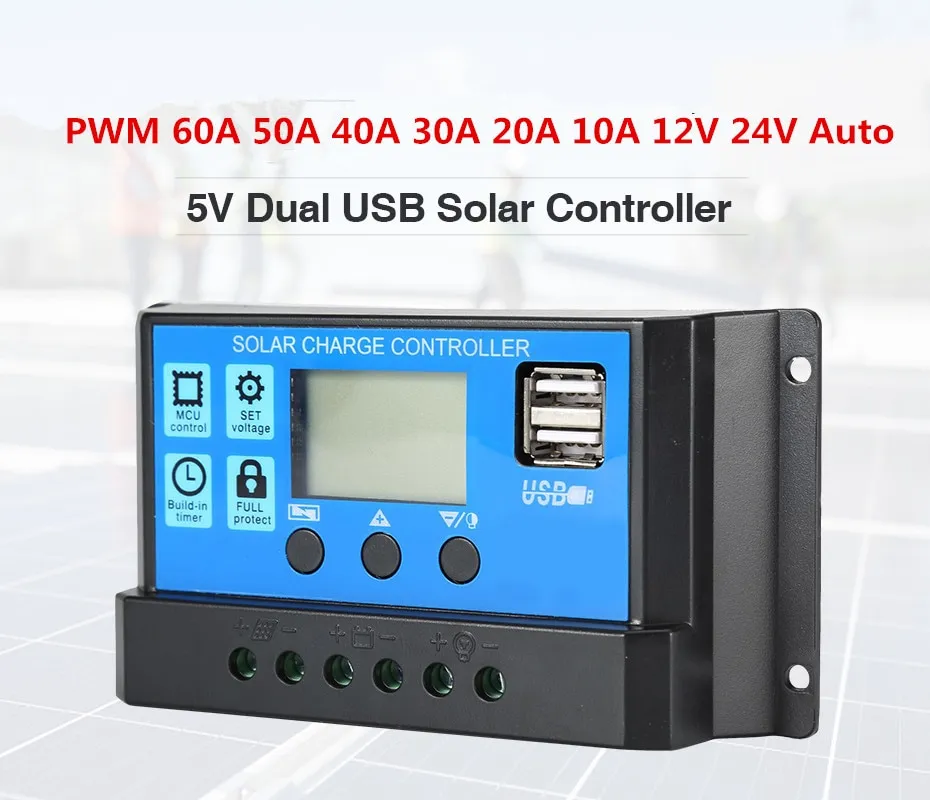

PowMr 10A-60A PWM Solar Charger Controller 12V 24V Dual USB

PowMr Solar Charge Controller 10A-60A12v/24v PWM Dual USB Solar Panel Controller Charge Regulator

• About Solar: Solar power systems offer a practical solution to the high cost of living and the energy crisis. It can provide a constant source of power support for a home or commercial premises. After installing a solar power system, you can utilize the solar panels on your own roof or open space to convert sunlight into electricity for various power needs.
• 1. Solar power systems offer an efficient and environmentally friendly solution when faced with the challenge of the rising cost of living. By utilizing solar energy, an inexhaustible natural resource, we can significantly reduce energy expenses for our homes and businesses.
• 2. As energy prices continue to rise, the financial strain of traditional energy sources has become a major issue for many households and businesses. However, the emergence of solar energy systems has brought a whole new approach to solving this dilemma. Solar panels convert sunlight into electricity, and when installed on a rooftop or open ground, they can provide a stable and reliable supply of electricity to homes and businesses. This not only drastically reduces reliance on traditional power supplies, but also effectively lowers electricity bills in the long run.
• 3. The benefits of choosing solar go beyond reducing energy costs. Solar systems are relatively simple to install and maintain, and while the initial investment is high, it can bring significant financial returns in the long run. With modern technology, such as the introduction of smart inverters and high-efficiency batteries, the performance and affordability of solar systems have been further enhanced, making them increasingly cost-effective.

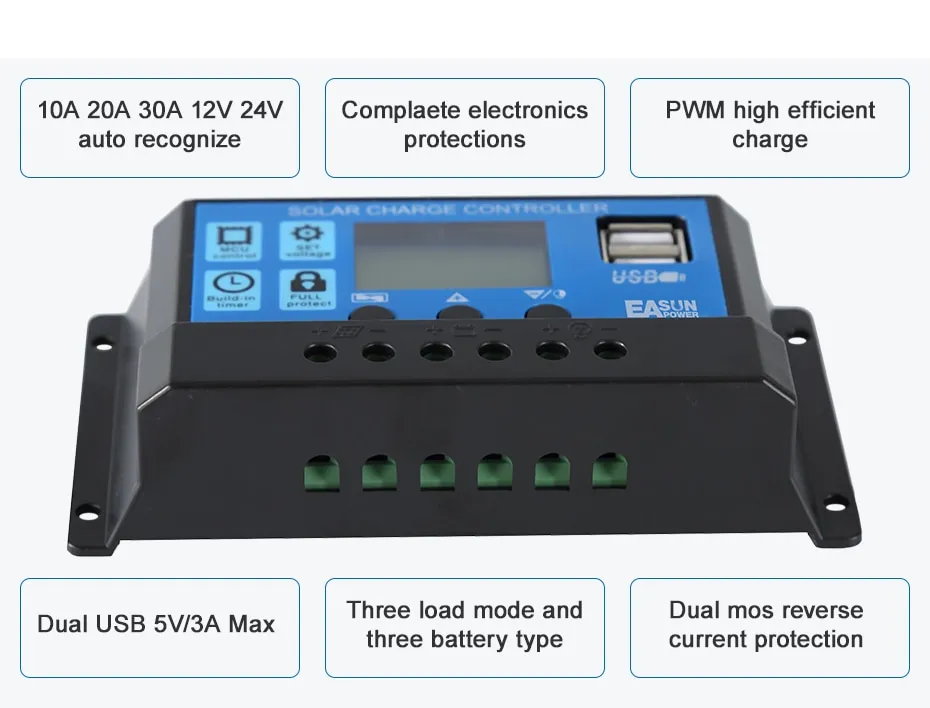

FEARURE:

1.Build-in industrial micro controller.

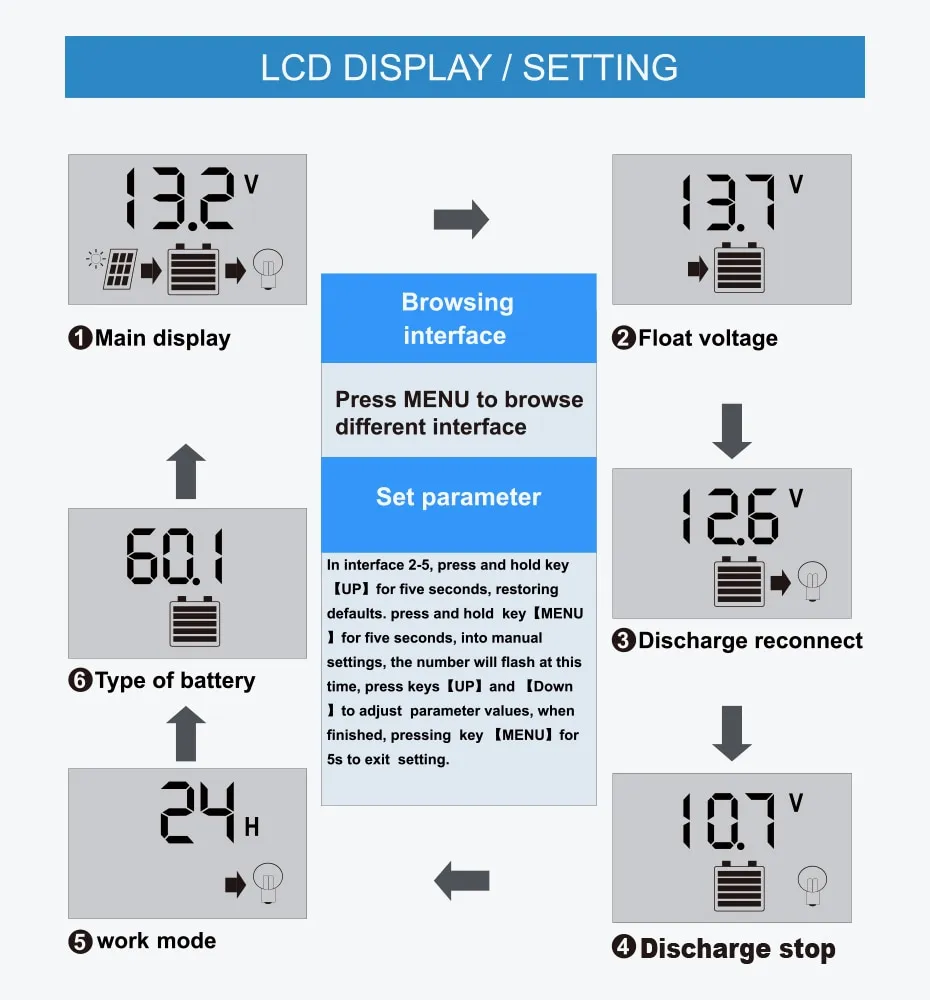

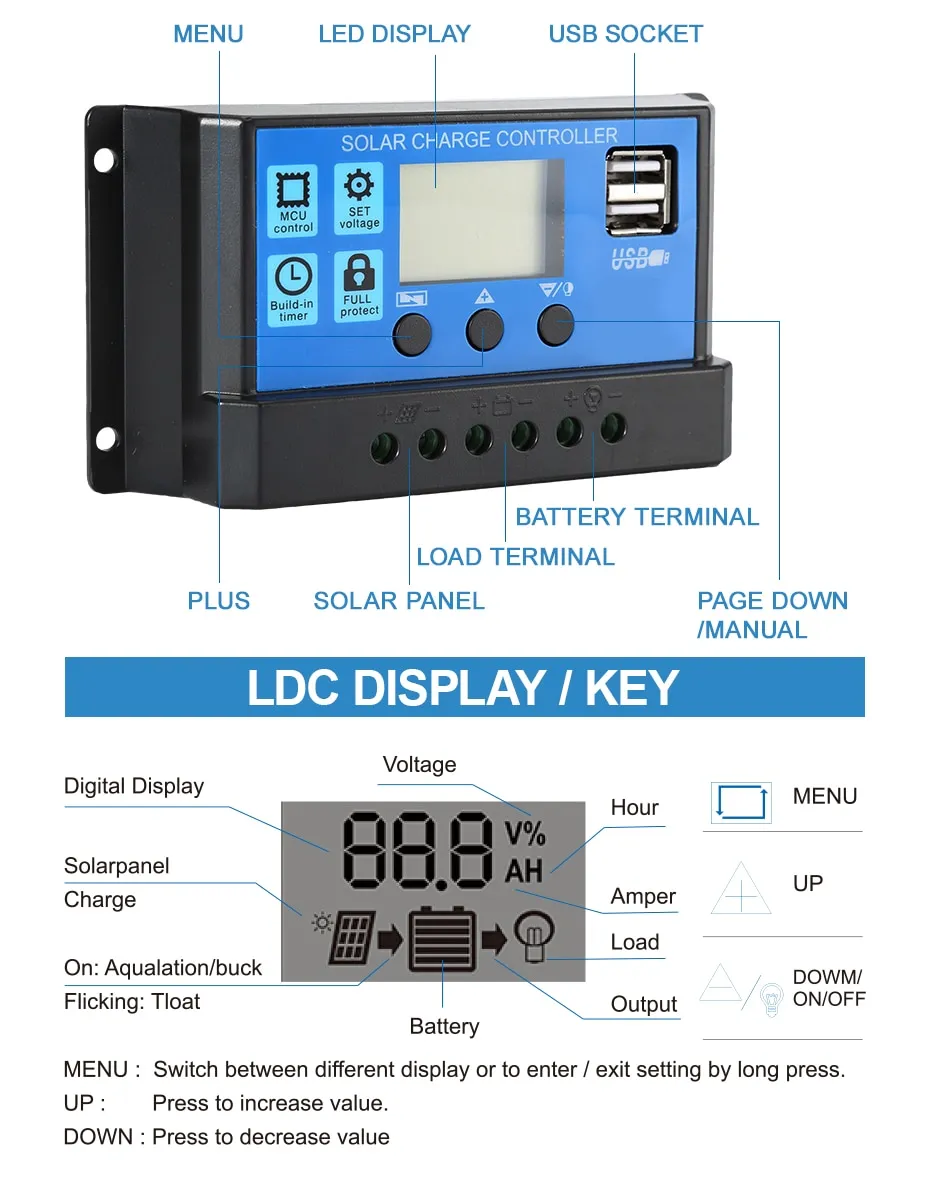

2.Big LCD display,all adjustable parameter.

3.Fully 4-stage PWM charge management.

4.Build-in short-circuit protection,open-circuit protection,reverse protection,over-load protection.

5.Dual mosfet Reverse current protection ,low heat production.

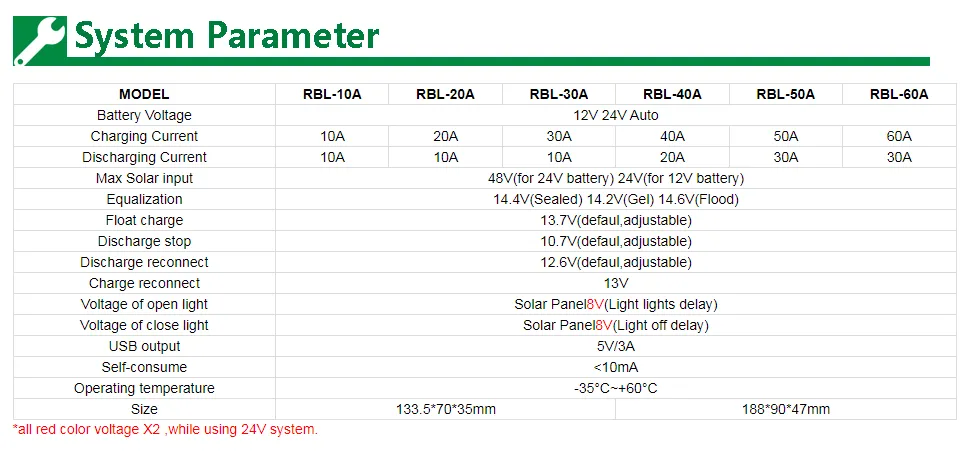

Specifications:

• Batt voltage: 12V/24V auto
• Charge current: 10A/20A/30A/40A/50A/60A
• Discharge current: 10A/10A/10A/20A/30A/30A
• Maximum solar input power:
• 10A:120W /12V ,240W / 24V
• 20A:240W /12V ,480W / 24V
• 30A: 360W /12V ,720W / 24V
• 40A:520W /12V ,1040W / 24V
• 50A:650W /12V ,1300W / 24V
• 60A:780W /12V ,1560W / 24V
• Maximum solar input: 48V(24V battery) /24V(12V battery)
• Equalization: B01 sealed 14.4V B02 14.2VB03 flood 14.6V
• Float charge: 13.7V(defaul,adjustable)
• Discharge stop: 10.7V(defaul,adjustable)
• Discharge reconnect: 12.6V(defaul,adjustable)
• USB output: 5V/3A
• Self-consume: 10mA
• Operating temperature: -35~+60 degree C
•

•   Packing List:
• 1X Solar Charge Contorller
• 1X English User Manual

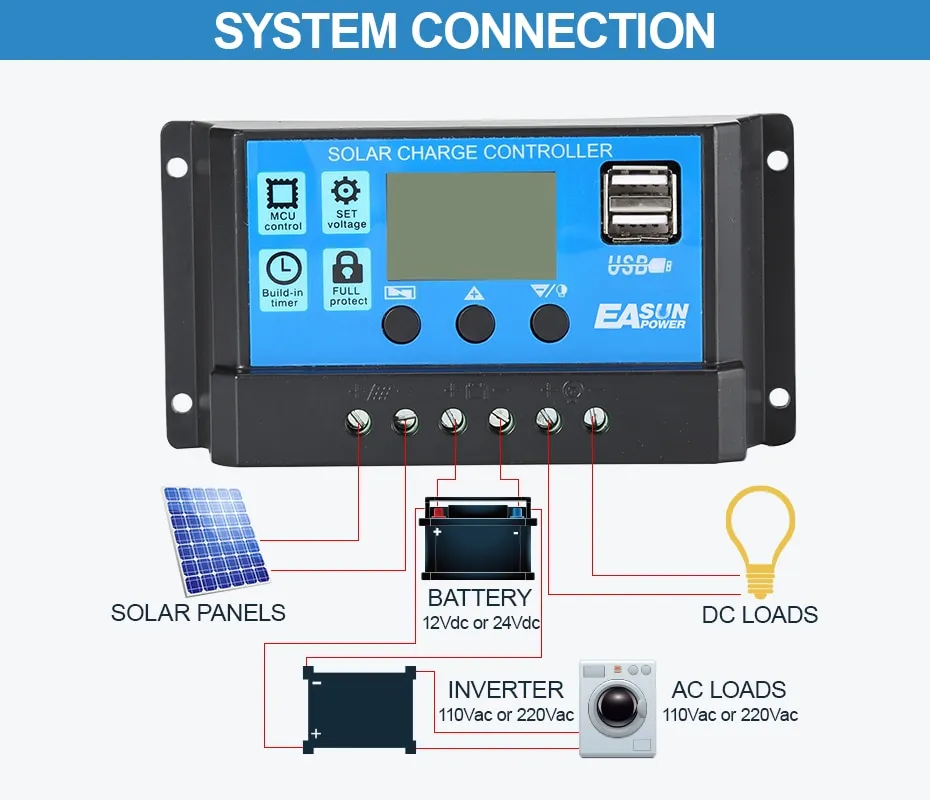

1.Connect the battery to the charge regulator - plus and minus.

2.Connect the photovoltaic module to the regulator - plus and minus.

3. Connect the consumer to the charge regulator - plus and minus.

The reverse order applies when deinstalling!

An improper sequence order can damage the controller!
