Specifications:
Content Specs.
Dim. 83mm x 54mm x 26mm
Weight Approx. 120g
Network GSM / GPRS
Band 850/900/1800/1900Mhz or 900/1800/1900Mhz
GPS chip SIRF3 chip
GSM/GPRS module Simcom Sim340d or Simcom Sim300d
GPS sensitivity -159dBm
GPS accuracy 5m
Time To First Fix Cold status 45sWarm status 35s Hot status 1s
Voltage of carpower system 12V - 24V
Battery Chargeable changeable 3.7V 800mAh Li-ion battery
Standby 80hours
Storage Temp. -40°C to +85°C
Operation Temp. -20°C to +55°C
Humidity 5%--95% non-condensing




Features:
Used widely for vehicle and other moving objects tracking
Support SMS/GPRS/Internet Network data transmission (GPRS/Internet instructions in CD enclosed）
Support both GPS / GSM station positioning ways
Support GPRS on-line and GPRS re-connected automatically if GPRS drops
Support SMS / GPRS dual-mode switching
Support SMS / GPRS dual-mode switching
Support for point-to-point, point to group, group-to-group monitoring
Set multiple functions of security, positioning, monitoring surveillance, emergency alarms and tracking in its entirety
Free PC GPRS monitor software ,install from package CD

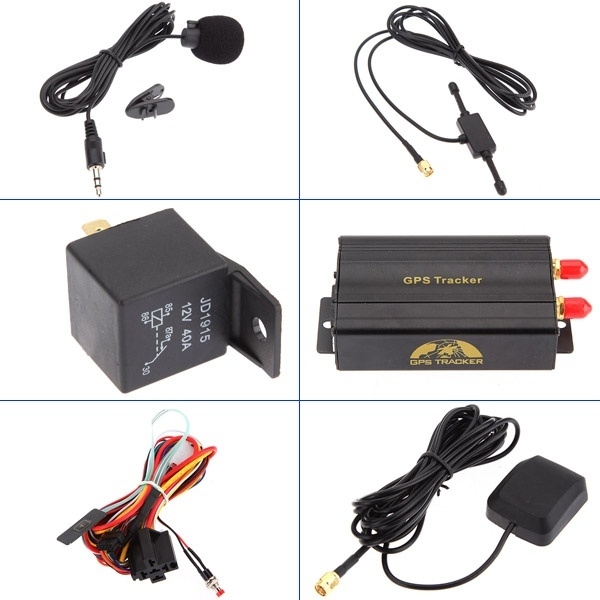

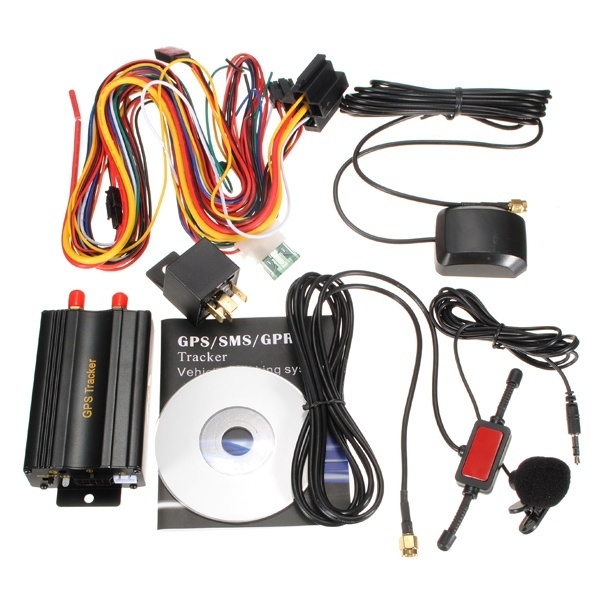

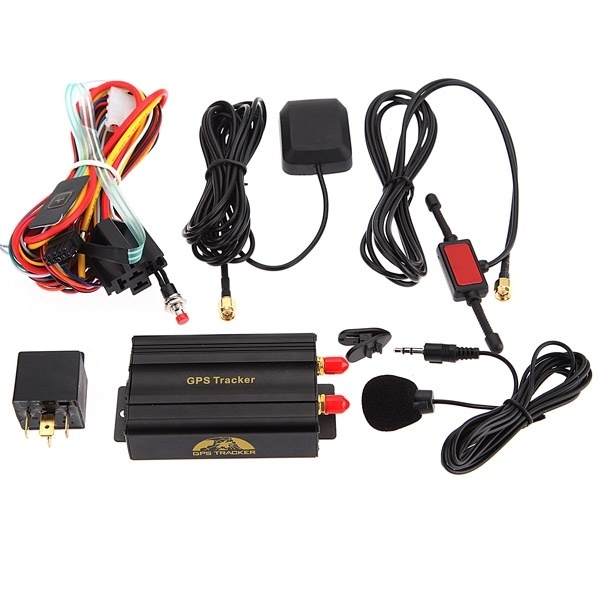

Package Includes:
1 X GPS Tracker 103A
1 X GPS Antenna 3 meters long
1 X GSM Antenna 3 meters long
1 X Relay
1 X Harness
1 X User Manual
1 X CD (GPS Manage Software)

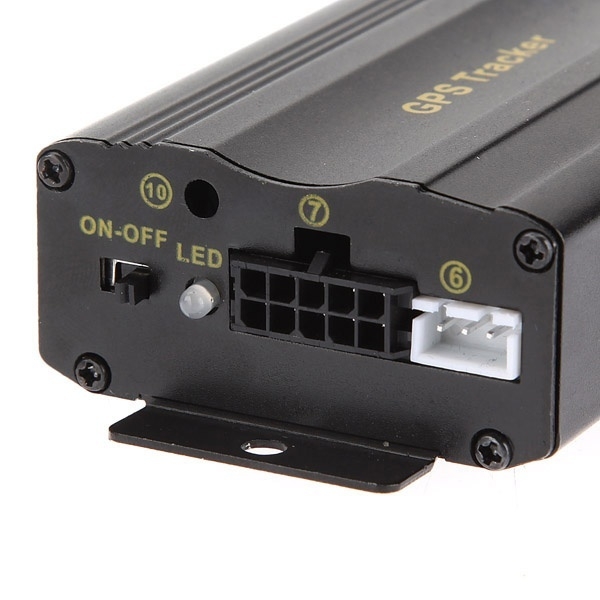

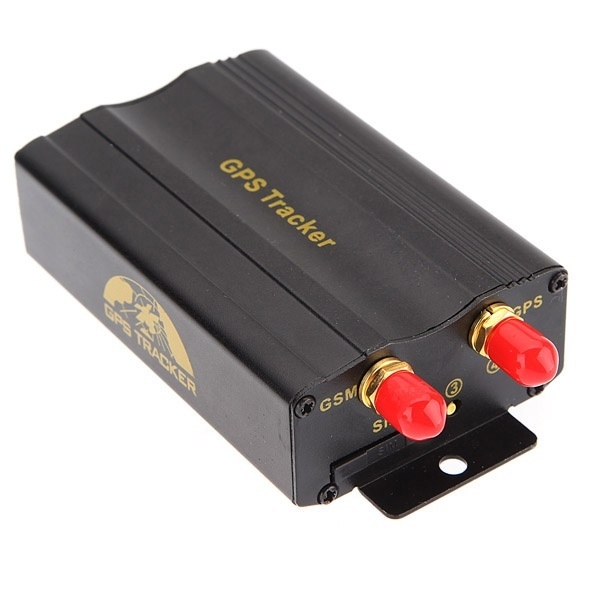

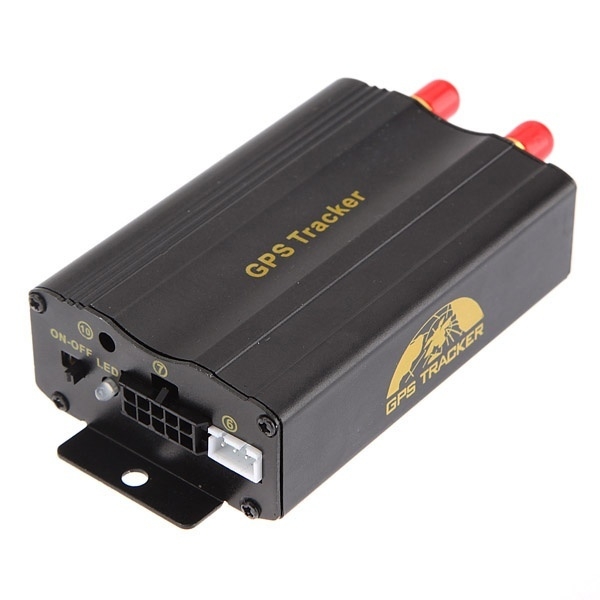

①. GSM Antenna jack ⑥. Sensor jack
②. SIM card slot ⑦. External Connection jack
③. SIM card slot Pop-up switch ⑧. Power/GSM/GPS LED indicator
④. Monitor jack ⑨. Backup battery switch
⑤. GPS Antenna jack
