Solar Charger Controller 12V / 24V Rated Current 20A

₦ 11,800

In stock

+ shipping from ₦ 1,700 to LEKKI-AJAH (SANGOTEDO)

3.6 out of 5

(8 verified ratings)

Promotions

Call 02018883300 To Place Your Order Enjoy cheaper shipping fees when you select a PickUp Station at checkout.

Report incorrect product information

Delivery & Returns

Choose your location

Pickup Station

Delivery Fees ₦ 1,700

Ready for pickup between 25 September and 28 September if you place your order within the next 18hrs 4mins

Door Delivery

Delivery Fees ₦ 2,750

Ready for delivery between 25 September and 28 September if you place your order within the next 18hrs 4mins

Return Policy

Free return within 7 days for ALL eligible itemsDetails

Seller Information

Bea

90%Seller Score

3 Followers

Seller Performance

Shipping speed: Excellent

Quality Score: Excellent

Customer Rating: Average

Cancellation Rate: Excellent

Product details

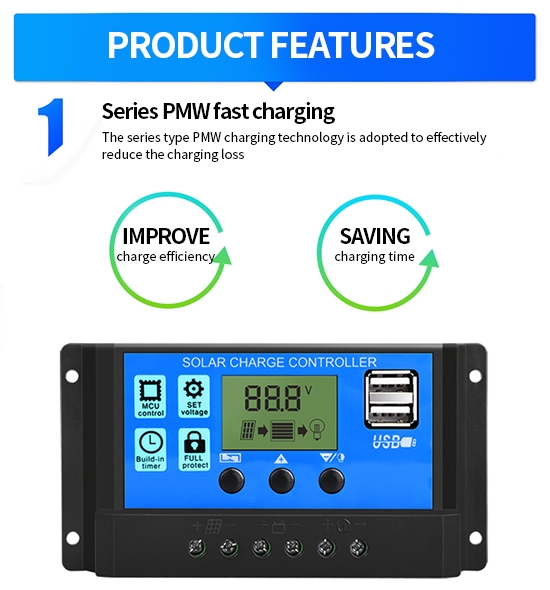

Solar Charge Controller 20A Solar Panel Battery Controller PWM Solar Controller Intelligent Regulator Adjustable LCD Display Description: Type:Solar Power Meters Material:ABS+component Power:12V/24V Display Type:LCD Display Interface:Dual USB Package List: 1x Solar Panel Battery Charge Controller Feature: Security instructions: 1. Make sure that the battery has enough voltage for the controller to recognize the type of battery before first installation. 2. The battery cable should be as short as possible to minimize losses. 3. The regulator is only suitable for lead-acid batteries: OPEN, AGM, GEL It is not suitable for nickel metal hydride batteries, lithium ions or batteries. 4. The charge controller is only suitable for the regulation of solar modules. Never connect another load source to the charge controller. Characteristics: 1. Build-in industrial microcontroller. 2. One-key configuration, digital display, automatic memory function. 3. Fully pwm-load management load. 4. Build-in short circuit protection, open circuit protection, reverse protection, over load protection 5. Dual mosfet Reverse current protection, low heat productions. Connection of the system: 1. Connect the battery to the charge controller plus and minus. 1 will be displayed, in case of detecting 12 V battery, 2 in case of detecting 24 V battery. 2. Connect the photovoltaic module to the plus and minus regulator. 3. Connect to the consumer for the charge controller plus and minus. the reverse order applies when uninstalling! An incorrect sequence order can damage the controller! Notes: 1.Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! 2.Please allow 1-3cm measuring deviation due to manual measurement.

Product connection mode
1. Connect the positive and negative electrodes of the livestock battery into the controller according to the diagram, and the controller will automatically detect the voltage of the livestock battery.
2. Connect the positive and negative poles of the load into the controller according to the diagram, and be careful not to connect them in reverse.
3. Connect the solar panel to the controller as shown in the figure.
Note: please connect in strict accordance with the above order, otherwise the controller may be damaged,
The disassembly sequence is opposite to the wiring sequence.

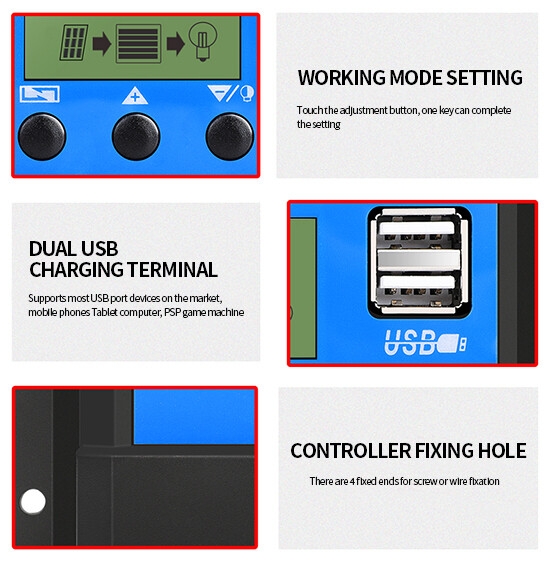

Setting parameters
In the interface 2-5, long press the up key for 5 seconds to restore the default value.
Press and hold the menu key for 5 seconds to enter the manual setting. At this time, the number will flash,
Press the up and down keys to adjust the parameter value, and then press the menu key for 5 seconds to exit the setting.

Note: 1. Main interface 1. Press the flip key alone to turn on / off the load.

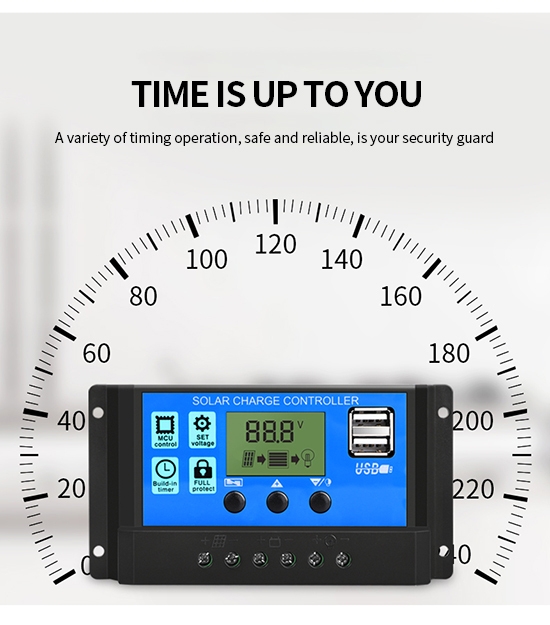

2. Interface 5 load working mode: [24h] load normally open mode

Specifications

Key Features

Application:Charger Controller
Maximum Current:30A
is_customized:Yes
Model Number:Solar Charge Controller

What’s in the box

Solar charger controller x 1

Specifications

SKU: GE779GP3SFVCQNAFAMZ
Product Line: Bea
Model: Solar charger controller
Production Country: China
Size (L x W x H cm): 13.35 x 7 x 3.5
Weight (kg): 0.165
Color: Black
Main Material: N/A
Care Label: N/A
