30A PWM Solar Charge Controller, 12V 24V Dual USB Solar Panel Battery Intelligent Regulator with LCD Display

₦ 10,080

Few units left

+ shipping from ₦ 1,700 to LEKKI-AJAH (SANGOTEDO)

0 out of 5

(No ratings available)

Promotions

Call 02018883300 To Place Your Order Enjoy cheaper shipping fees when you select a PickUp Station at checkout.

Report incorrect product information

Delivery & Returns

The BEST products, delivered faster. Now PAY on DELIVERY, Cash or Bank Transfer Anywhere, Zero Wahala!

Choose your location

Pickup Station

Delivery Fees ₦ 1,700

Ready for pickup between 13 October and 14 October if you place your order within the next 12hrs 42mins

Door Delivery

Delivery Fees ₦ 2,750

Ready for delivery between 13 October and 14 October if you place your order within the next 12hrs 42mins

Return Policy

Free return within 7 days for ALL eligible itemsDetails

Seller Information

Wufeng-COD

82%Seller Score

14 Followers

Seller Performance

Shipping speed: Excellent

Quality Score: Average

Customer Rating: Average

Cancellation Rate: Excellent

Product details

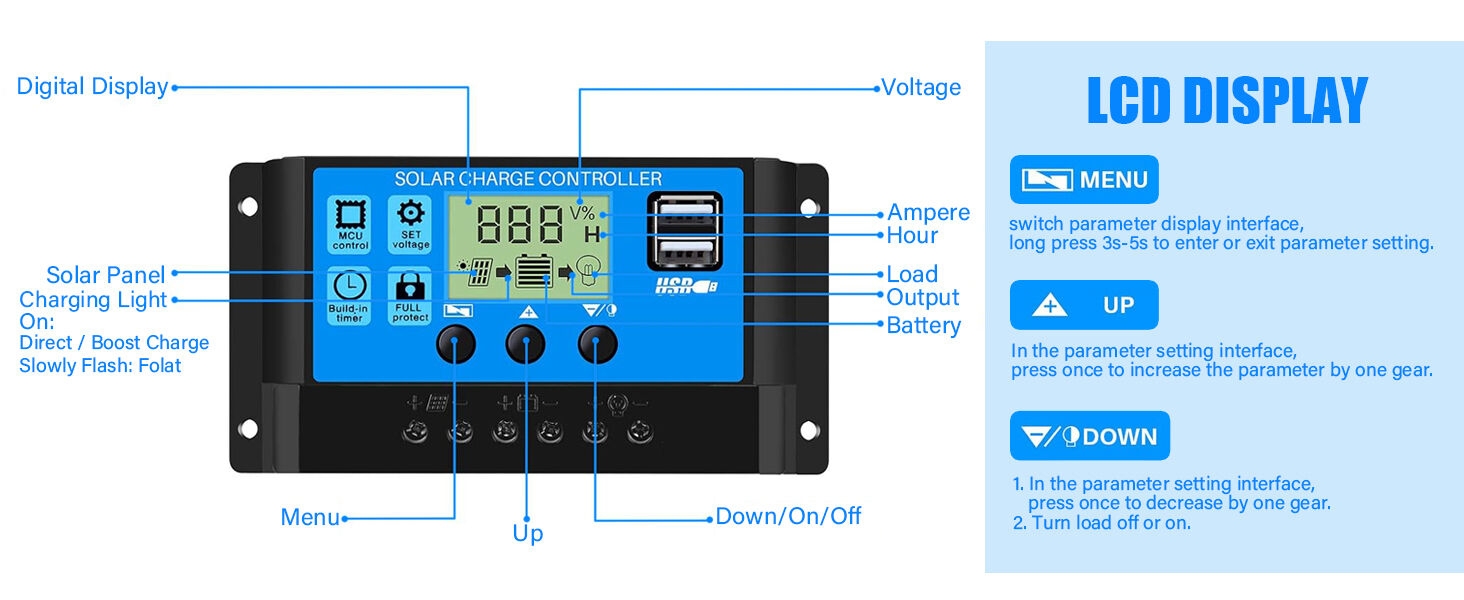

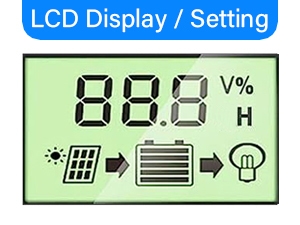

LCD Display/Setting

Easy to read the status and data with an LCD display, which is also able to switch modes and parameter configuration

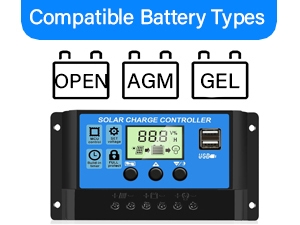

Compatible Battery Types:

Suitable for Lead-acid Batteries:

1.OPEN

2.AGM

3.GEL

Dual USB Ports

Long USB charging life, supports most USB port devices on the market.Dual USB output 5V/2A to charge your phone, tablet or PC

Float Charge

How to install it?

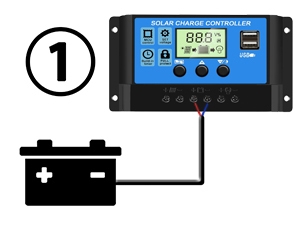

1.Connect the battery

Suitable for lead-acid batteries

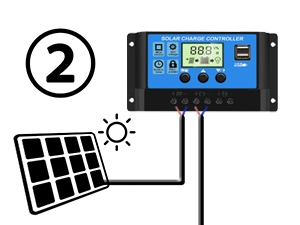

2.Connect solar panels

Suitable for solar panels 30A within 360W, 40A within 480W, 50A within 600W, 60A within 720W

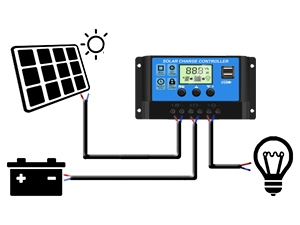

3.Connect DC load port

Compatibility with 12V and 24V system

4.Form a complete system

For the first use, please ensure the battery has enough power so that this PWM charge controller can recognize the battery.

Specification

Battery voltage	12V/24V auto adapt
Charge current	30A
Discharge current	10A
Max solar input	<41V
Float	13.7V (defaults, adjustable range 12.7-15V)

Discharge stop	10.7V (defaults, adjustable range 9-11.3V)
Discharge reconnect	12.6V (defaults, adjustable range 11.5-13V)
Standby current	<10mA
USB output	5V/2A Max
Operating temperature	-35~+60℃

Specifications

Key Features

UPGRADED SOLAR CONTROLLER: With the built-in industrial microcontroller, this PWM solar charge controller automatically helps you manage the working of solar panels and batteries in solar systems.When the battery runs out, it will memorize various parameters you set, so you don't need to reset it, which is easy and safe
WIDELY COMPATIBILITY IN BATTERY: The 30A solar charge controller is compatible with 12V or 24V systems automatically, only suitable for lead-acid batteries, such as OPEN, AGM, and GEL.Dual USB 5V/3A output ports support mobiles, tablet PCs, or other devices that require 5V voltage.Please refer to the manual for more details.（NOTE: This PWM solar charge controller is NOT suitable for Lithium Battery.)
EASY TO READ AND ADJUSTABLE: Easily to read the status and data with an LCD display, which is also able to switch modes and parameter configuration, such as adjustment of battery float, reconnect, and stop discharge voltage, which can perfectly protect the battery from over-discharge, suitable for home, industrial, commercial, etc
SAFE TO USE: Built-in overcurrent protection, short circuit protection, reverse connection protection, open circuit protection, all automatic recovery, no damage to the solar controller, but a reliable protector for your devices and prolong the lifespan
EASY TO INSTALL AND OPERATE: The charge controller should connect the battery first, then the solar panel, and finally the load. The disassembly sequence is contrary to the wiring order. Please refer to the manual for details.
