30A 2USB Intelligent Regulator PWM Solar Charge Controller

30A 12V/24V Smart PWM Solar Charge Controller with Dual USB Ports

Description:

• The solar charge controller automatically manages the work of solar panels and batteries in the solar system. Built-in short circuit protection, open circuit protection, reverse protection, overload protection. The solar controller has dual MOSFET reverse current, lightning protection. Dual USB output, maximum current 20A, the solar panel charge controller supports mobile phone charging. Easy to set up and operate. The solar panel charge controller is suitable for solar systems, extending battery life and keeping the load working properly.

Features:

• 1. [Solar Charge Controller] The solar charge controller is compatible with 12V 24V systems. The discharge current is 30A, with a built-in industrial microcontroller, which automatically manages the work of solar panels and batteries in the solar system. Dual USB, supports mobile phone charging.
• 2. [Multiple protection functions] The solar controller has short circuit protection, open circuit protection, reverse protection, overload protection. Improve system efficiency and extend the life of the battery.

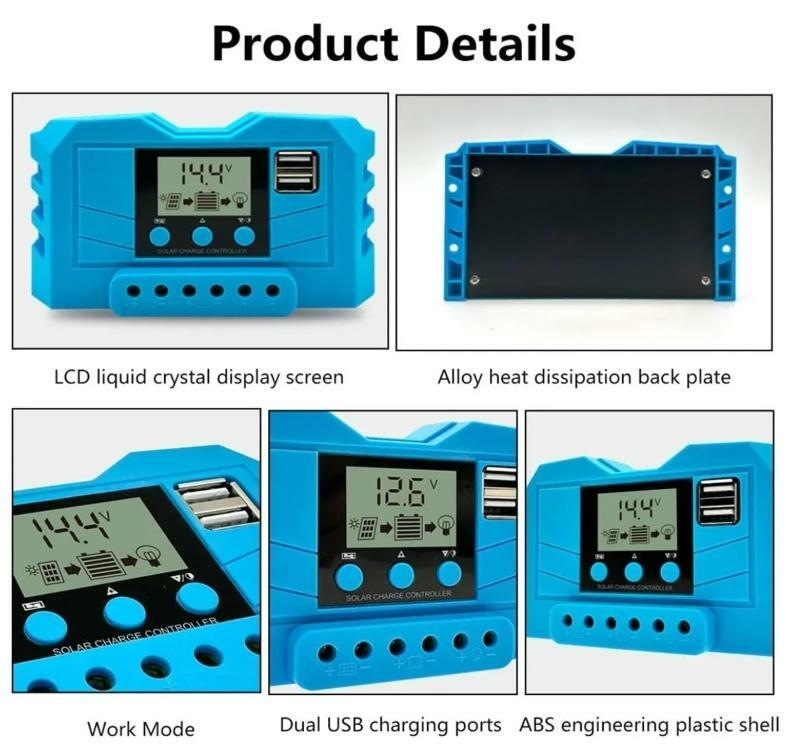

• 3. [LCD display] The solar panel charge controller is equipped with a display screen, which can clearly display the status and data, and can easily switch modes and parameter configurations, suitable for home, industry, business, etc.
• 4. [Solar charge controller control] The charge controller is used to protect the life of the battery. Once the battery voltage is out of range, the solar controller will automatically shut down.
• 5. [Easy to use] The charge controller should first connect the battery, then the solar panel, and finally the load. LCD display, adjustable parameters, the solar panel charge controller is suitable for home, industry, business, etc.

Specifications:

• Product name: Solar Controller
• Color: Blue
• Working time (hours): 24
• Maximum PV voltage: 12V/24V automatic
• Controller type: PWM
• DC voltage: 12V/24V
• Battery voltage: 12VDC-48VDC
• Display: LCD screen
• Battery type: GEL/lead acid/AGM
• Packing size: 13.2*4*7.5cm
• Weight: 0.3kg

Solar charge controller connection steps:

• 1. Connect the battery to the charge regulator.
• 2. Connect the solar panel to the solar charge controller.
• 3. Connect the load to the charge controller regulator.
• Note: Connect the battery first, then connect the load and solar panel. This will help the solar charge controller to identify the battery voltage. When disconnecting the controller, remove the solar panel and then install the battery.

Package List:

• Solar Charge Controller*1
• User Manual*1
•
•
•
•
•
•
•
