Product details
This inverter provides a reliable continuous power output of 3600 Watts (3600W / 3600VA).
It is designed to operate in a wide variety of environments, with an acceptable ambient temperature range from as cold as minus ten degrees Celsius (-10°C) up to a very hot sixty degrees Celsius (60°C).
The enclosure is built to the Ingress Protection standard of IP21, meaning it is protected against finger touch and vertically dripping water, making it suitable for indoor installation.
The unit is classified as Safety Class I, ensuring proper grounding protection.
This specific model is a stand-alone unit and is not capable of being connected in parallel with other inverters.
Cooling for the system is likely achieved through forced air, using internal fans.
Specifications
Key Features
Continuous Power Output: 3600W / 3600VA
Operating Temperature: -10°C to 60°C
Parallel Operation: Not Available (stand-alone unit)
AC Output (Battery/Inverter Mode)
Waveform: Pure Sine Wave
Rated Voltage: 230VAC (±5%)
Rated Frequency: 50Hz / 60Hz (auto-sensing)
Rated Current: 15.7A
Battery System
Nominal DC Voltage: 24VDC
Operating DC Voltage Range: 20VDC – 30VDC
Solar (PV) Input
Solar Charger Type: MPPT (Maximum Power Point Tracking)
Maximum Solar Input Power: 5000 Watts (5kW)
Maximum PV Open Circuit Voltage (Voc): 500VDC
MPPT Voltage Operational Range: 40VDC – 450VDC
Maximum Solar Charging Current: 100A
Maximum PV Input Current: 18A
AC Grid Input (for bypass and battery charging)
Acceptable AC Voltage Range: 90VAC – 280VAC
AC Bypass Capability: up to 20A
Maximum AC Charging Current: 100A
Specifications
- SKU: CL629GP751JGYNAFAMZ
- Size (L x W x H cm): 518 X 342 X 170
- Weight (kg): 6.2
- Color: Green
Verified Customer Feedback
Customers who have bought this product have not yet posted comments
Related results
Good solar inverter that powers freezerSolar power inverter for tv,laptop1500w 12v solar power inverter12volts 3000watts solar power inverterInverter 7000w for solarQasa solar power inverter UPSHybrid power generator/inverterDurable Solar InverterMulti function car power inverterInverter solar setupMini solar inverter for officeWind fansMercury 500W power inverter6.2kva 48v hybrid solar inverterAutomatic self wind watchFore solar inverterInverter batteries for powering the house10kw solar power10kv solar hybri inverterSolar deep freezers with inverter5kva Blue Power inverterWind screen sun protectionWind blocker60000 mah power banks solar2kva 12v hybrid solar inverterInverter heaterIntegrated solar inverter2.25 inverter2000watt off-grid power inverterDC to AC solar inverters
/product/31/7332024/1.jpg?2938)

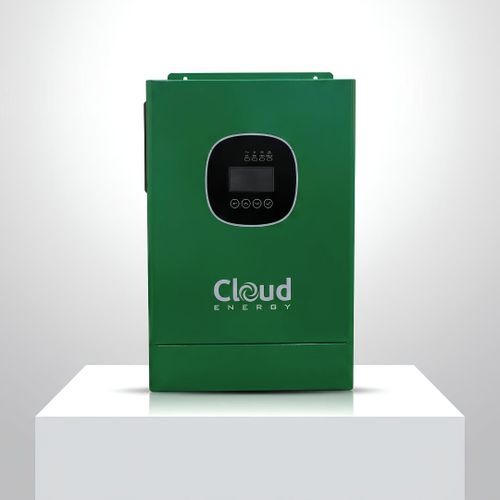

Cloud Energy 3.6kW/24V High Frequency Hybrid Inverter
