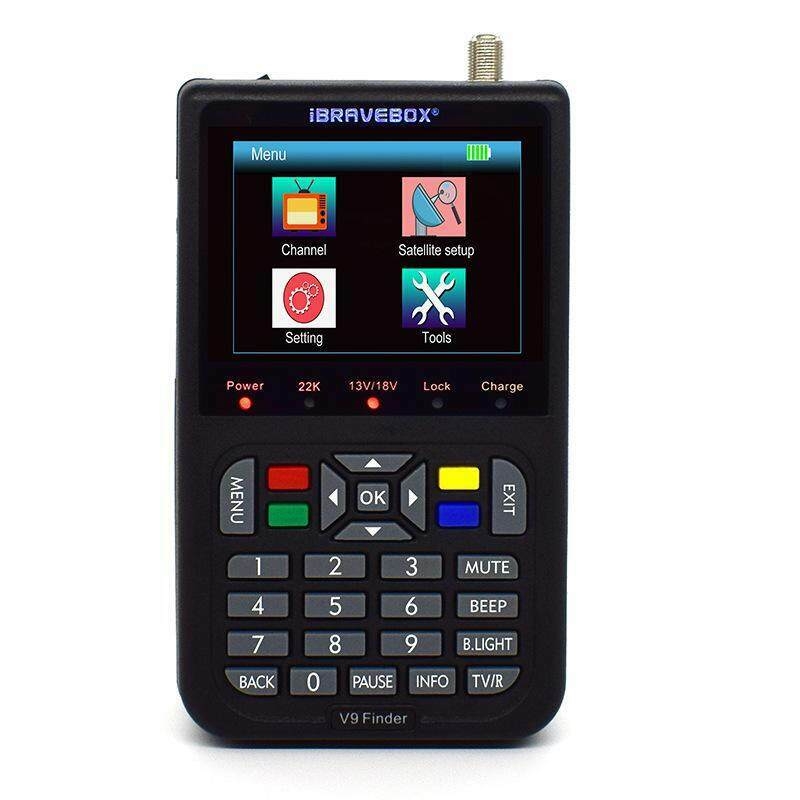

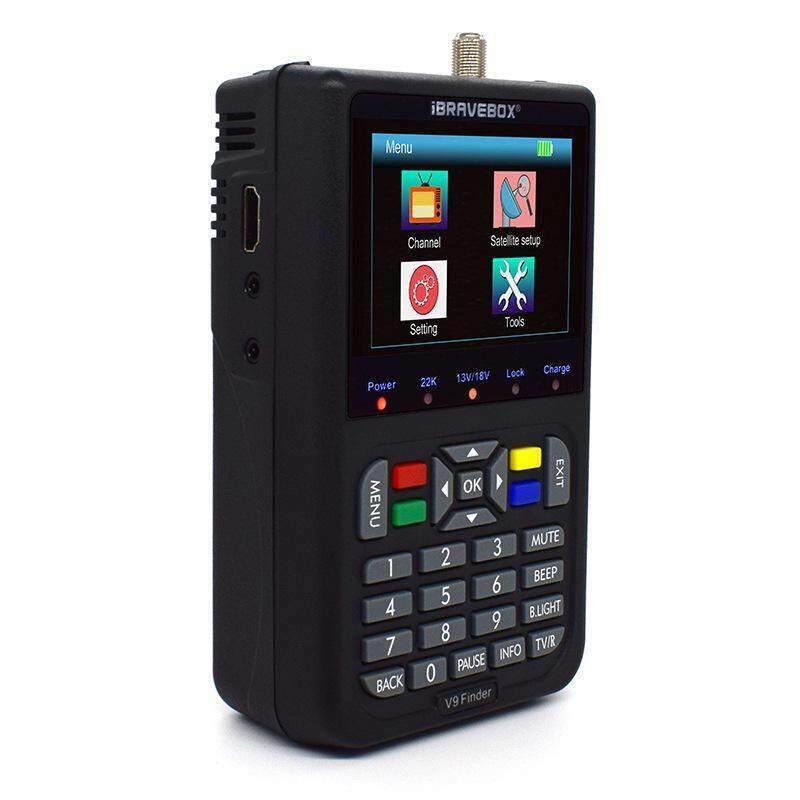

V9 TV Signal Finder Tester LCD Digital Satellite Receiver Finder Meter 3.5 Inch Blueberry

Apricot ForOrangeEUPlus ArmyGreen ForOrangeAUPlus Avocado ForOrangeUSPlus Beige ForOrangeUKPlus Black ForBlackEUPlus Blue ForBlackAUPlus BlueGary ForBlackUSPlus Blueberry ForBlackUKPlus [Note:ColorFamilyisthechooseofthemodel,notrealcolor;Colorjustmeansthemeaningofthemodel]
Package Included:
1 x iBRAVEBOX V9 Satellite Finder
1 x USB Cable
1 x Charger
1 x AV Cable
1 x Carry Bag
1 x User Manual

Features:
Fully compliant, Live FTA Digital Picture and Sound
3.5 inch LCD Colour Screen
-ion 3000mA , Normal work up to 4 hours
AV in and AV/HDMI out function
13V / 18V / LOCK status panel LED display directly
display
Software Upgradeable via USB

Specifications:
I. Function:
1. Fully compliant, Live FTA Digital Picture and Sound
2. 3.5 inch LCD Colour Screen
3. -ion 3000mA , Normal work up to 4 hours
4. AV in and AV/HDMI out function
5, 13V / 18V / LOCK status panel LED display directly
6, display
7. Software Upgradeable via USB
Note: We reserve the right to change the design and OEM/ODM supported

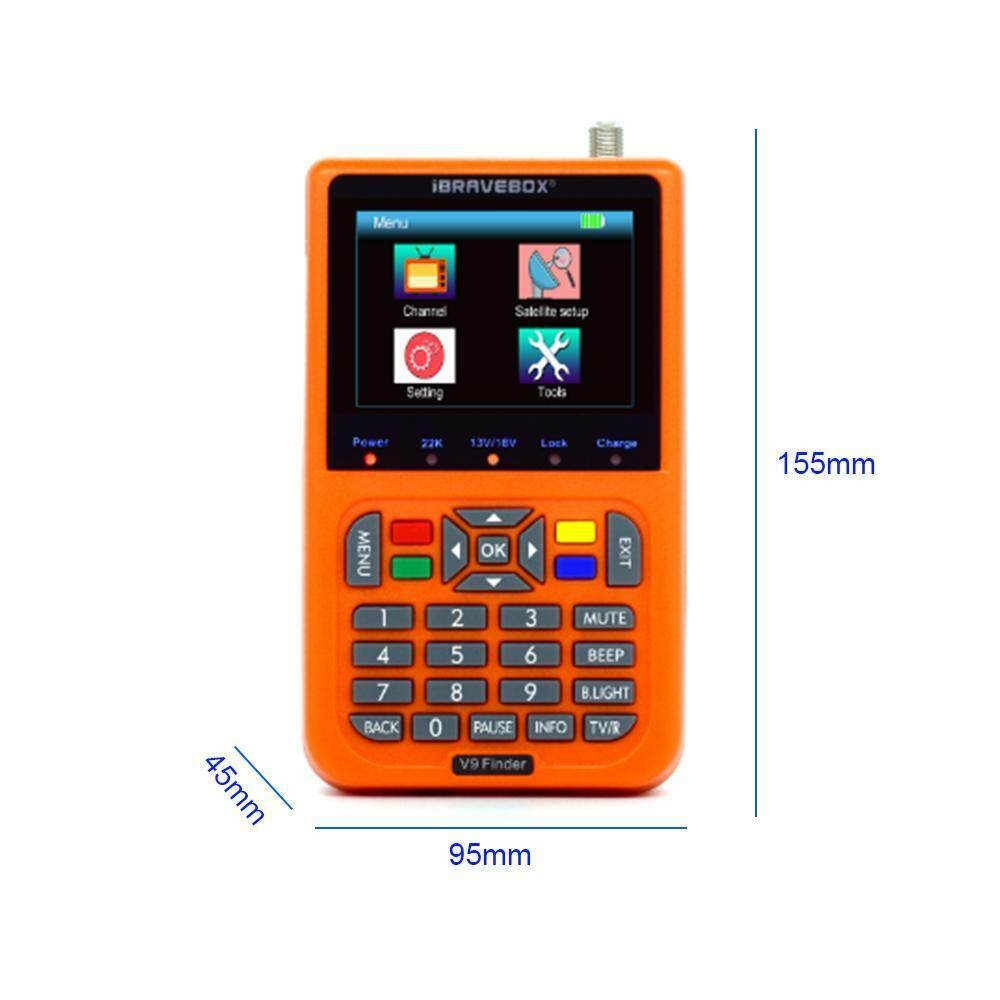

Product Size 95*155*45 MM Packaging 10 pcs/ctn
Gift Box size 240*180*58MM Carton size(mm) 375*310*253MM
Weight (1 set) 0.5 Kg (N.W.)/0.85Kg (G.W.)
: Black / Orange (Optional)

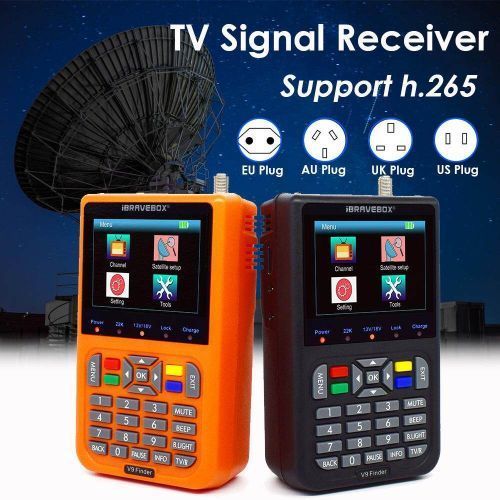

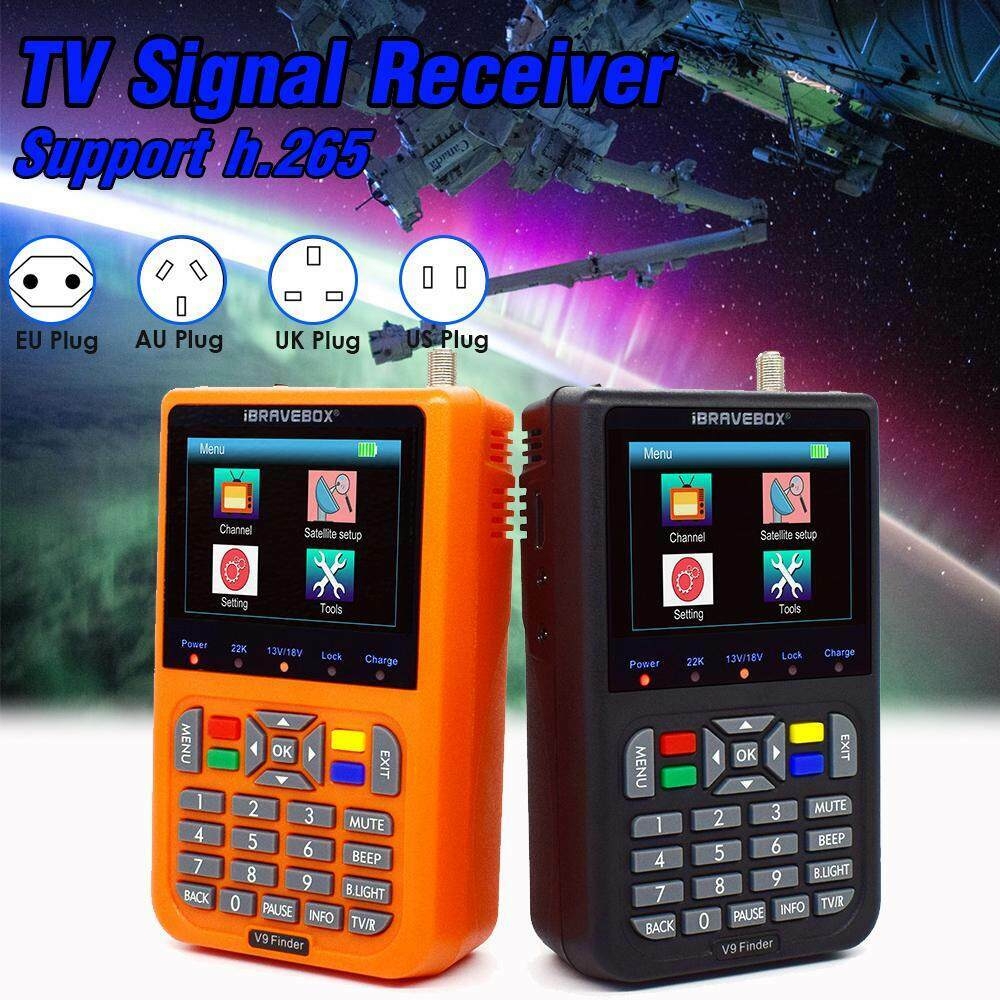

Plug Type: EU / US / UK (Optional)
Panel display 3.5 inch LCD Display Colour Screen

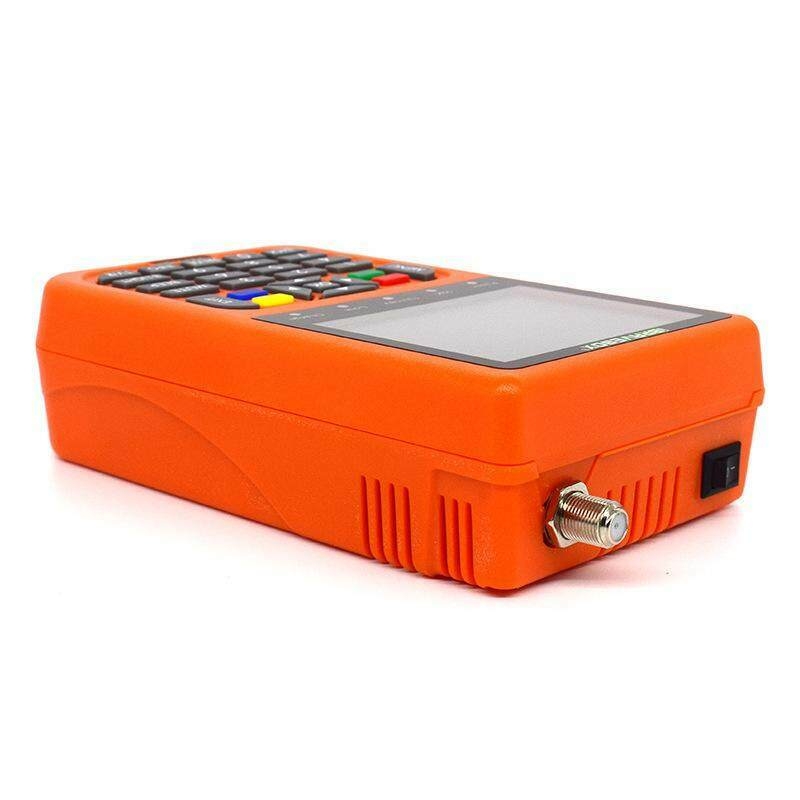

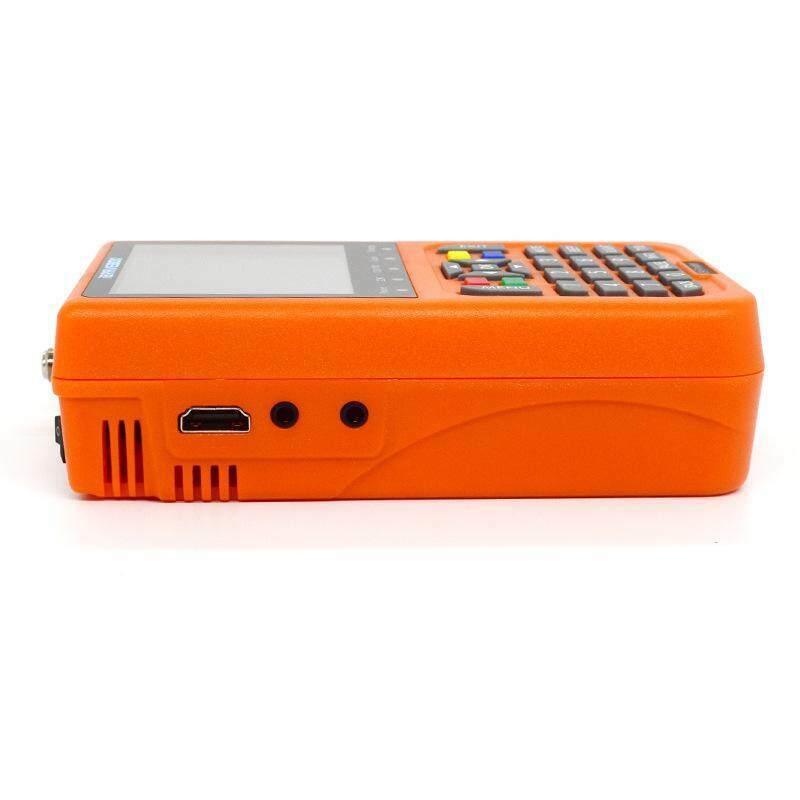

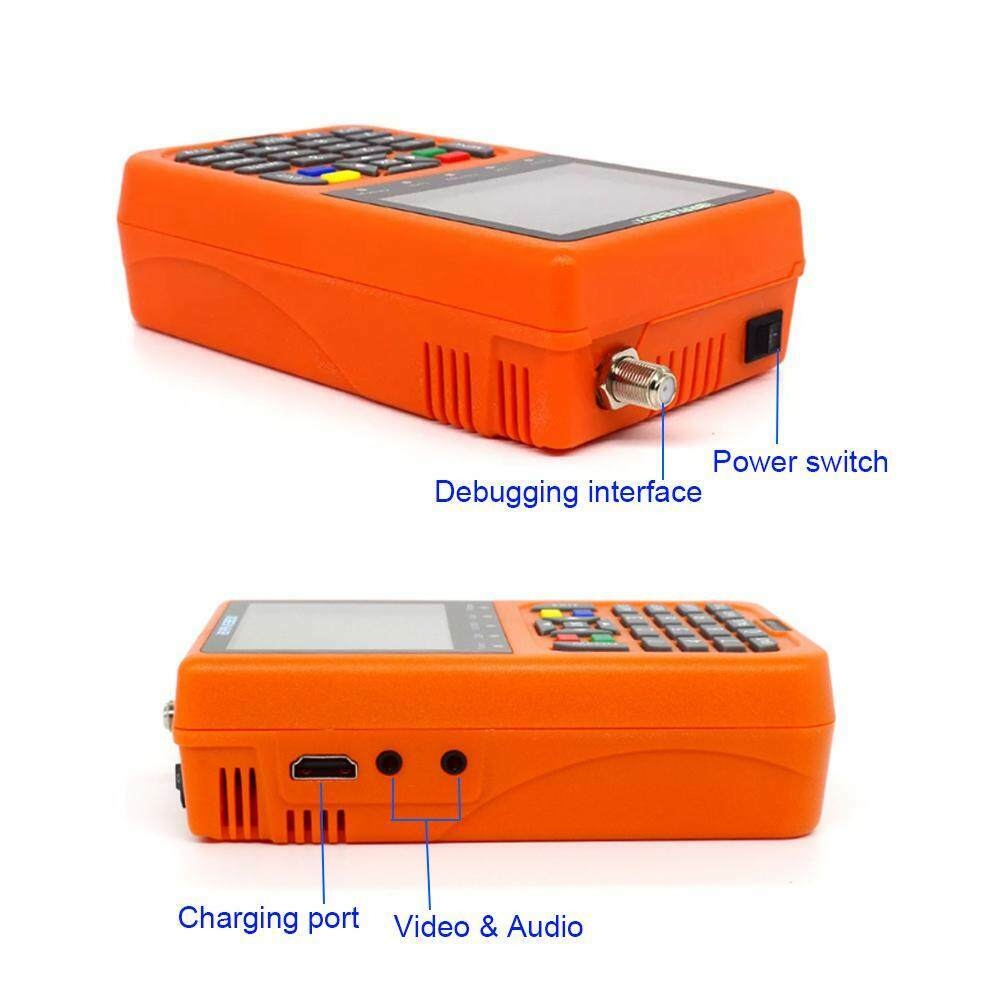

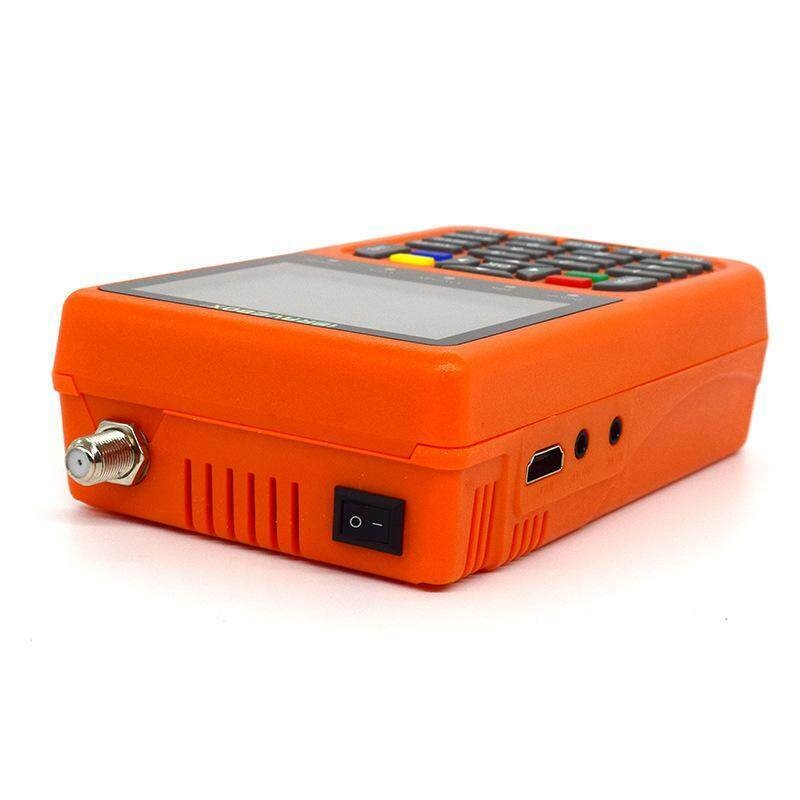

Output Interface LNB IN*1, DV OUT, AV OUT, AV IN, USB, supply
HDMI HDMI(up to 1080P) output
III. Main Features:

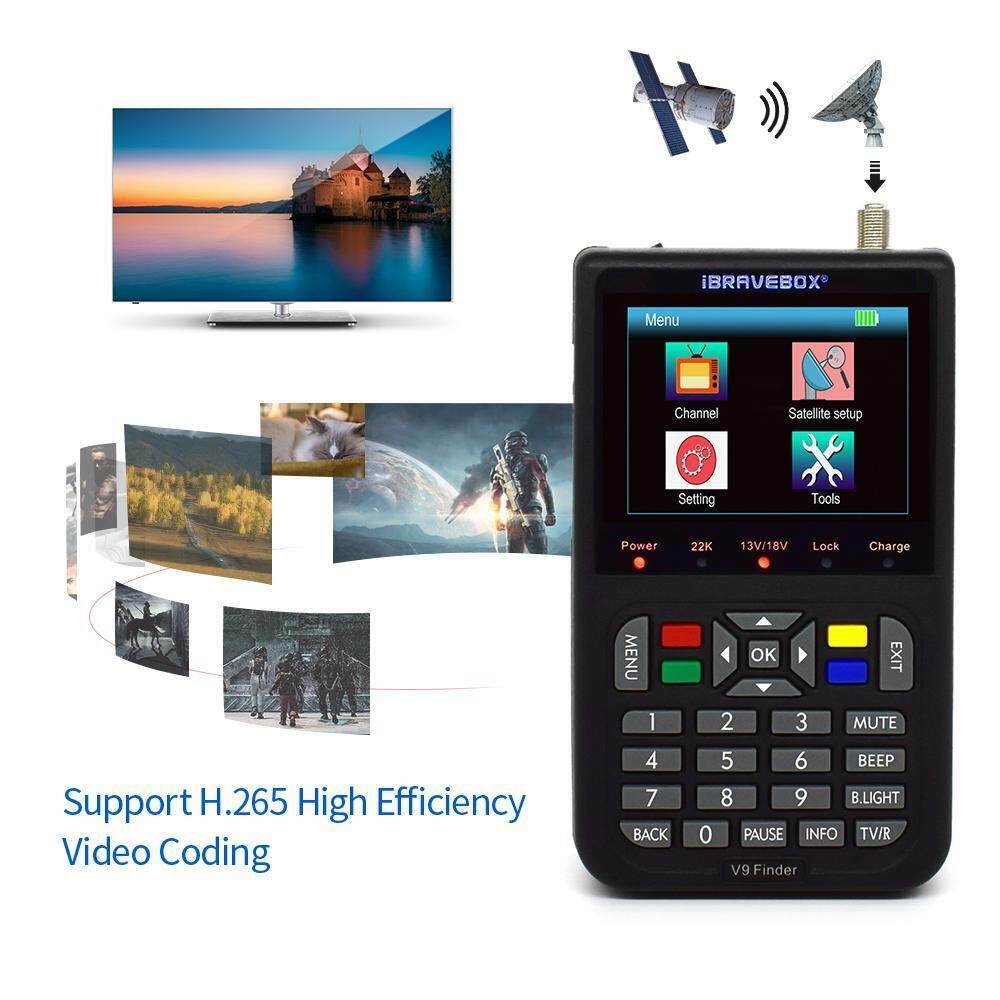

System capabilities Full HD -S/S2 H.265 Complian, Fully compliant
Video Decode AC-3, MPEG-2 MP HL; H.264 BP MPHP L4.1; AVS profile L6.1/4.0/2.0
PAL/NTSC Automatic PAL/NTSC conversion
Channels Number 6000 channels TV and Radio programmable
Favorites 8 different favorite groups selection
OSD Language EnglishGermanFrenchPortugueseSpanishItalianRussianTurkishPolishArabic FarsiEspanolDeutsch
OSD 16-bit OSD with anti-flickering
Search search in automatic, manual and network search
Edit Various editing function(favorite, move, lock, skip, delete, rename, find, sort)
Easy Menu Plug and Play installation, with an easy to use Menu System
SoftUpgrade Software upgrade through USB
Save Automatic save for last
Li-oN 3000mA
Supply DC12V/1500mA (Input 100V - 240V, 50/60Hz)
IV.Electric Performance
1. System resource:
Flash Memory 64Mb Serial Flash
DDR3 Memory 1Gb DDR3
2. LNB/Tuner input:
Connector F type, male
Frequency range 950MHZ-2150MHZ
Input Impedance 75Ω
Signal lever -65dBm~-25dBm
Active Ant 13/18V 400mA , Overload Protection
LNB switch control 22KHz
DiSEqC Ver 1.0/1.1/1.2
3. Demodulator:
Front end QPSK(S); QPSK, 8PSK, 16APSK, 32APSK(S2)
Modulation range 2Mbps~45Mbps
SCPC and MCPC Capable Yes
Spectral inversion Auto conversion
