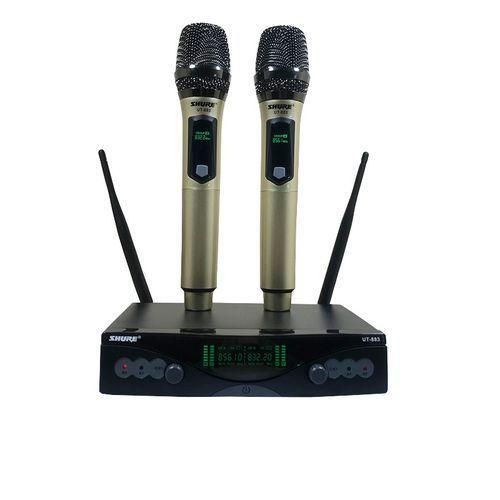

Shure Professional UHF Wireless Microphone

The instructions on this page will help you get your UT Series system upand running in minutes. For more detailed instructions, read the section ofthis manual that applies to your system.RECEIVER SETUP1. Connect the supplied ac power adapter to the DC INPUT connector on the back ofthe receiver. Insert the adapter’s cable into the power cable retainer on the bottomof the unit. Plug the adapter into a wall socket or other electrical outlet. The greenPOWER light on the receiver will glow.2. If you are using The Guitarist-UHF, connect the receiver output to a guitar am-plifier using any standard guitar cable. If you are using The Vocal Artist-UHF,The Headset-UHF, or The Presenter-UHF, connect the receiver output to anaudio mixer using an XLR to XLR audio cable.3. Raise the antennas and point away from each other at a 45° angle from vertical.TRANSMITTER SETUP1. Open the transmitter battery compartment and install a 9 V battery. Observe properbattery polarity (“+/–”).2. If you are using The Vocal Artist-UHF, no further transmitter setup is required.3. If you are using a body-pack transmitter (The Presenter-UHF, The Headset-UHFor The Guitarist-UHF), plug the microphone cable or a WA302 instrument cableinto the four-pin connector on the transmitter (if using The Headset-UHF, see tagon headset for assembly instructions). If using The Guitarist-UHF, plug the instru-ment cable into the guitar output and adjust the volume control of the guitar.OPERATING THE SYSTEM1. Slide the transmitter POWER/OFF switch to the POWER position. The transmitter’sgreen POWER light and the receiver’s yellow DIVERSITY A/B lights will glow.2. Slide the MUTE/ON switch on the body-pack or hand-held transmitter to the ONposition.3. Talk or sing into the microphone, or play your guitar. The receiver’s red AUDIO PEAKlight should flicker when loud sounds are transmitted. If the AUDIO PEAK light doesnot flicker or stays on constantly, the transmitter gain may need adjustment. (Referto the Transmitter Audio Gain Adjustment section). NOTE: This step is particularlyimportant for The Guitarist system, since guitar outputs can vary widely.4. Adjust the receiver VOLUME control until the receiver output level matches thelevel of your guitar or microphone through a cable. (The factory setting is in thefull clockwise position.) If using The Guitarist-UHF system, see Receiver VolumeAdjustment for The Guitarist-UHF to match the receiver volume level to the levelof a wired system.
