Brand: Schneider | Similar products from Schneider
₦ 65,012
₦ 69,0126%
4 units left
+ shipping from ₦ 750 to LEKKI-AJAH (SANGOTEDO)
0 out of 5
(No ratings available)Variation available
Promotions
Delivery & Returns
Choose your location
Pickup Station
Delivery Fees ₦ 750
Ready for pickup between 02 March and 03 March if you place your order within the next 4hrs 1mins
Door Delivery
Delivery Fees ₦ 1,710
Ready for delivery between 02 March and 03 March if you place your order within the next 4hrs 1mins
Return Policy
Free return within 7 days for ALL eligible itemsDetails
Seller Information
Jet Gate Nigeria Ltd
96%Seller Score
3 Followers
Seller Performance
Shipping speed: Good
Quality Score: Excellent
Product details
| Range of product | Easy9 |
|---|---|
| Product or component type | Residual current circuit breaker (RCCB) |
| Device short name | Easy9 RCCB |
| Poles | 2P |
| Neutral position | Left |
| [In] rated current | 63 A |
| [In] rated current | 63 A |
| Network type | AC |
| Earth-leakage sensitivity | 30 mA |
| Earth-leakage protection time delay | Instantaneous |
| Earth-leakage protection class | Type AC |
| Rated breaking and making capacity | 630 A |
| Rated conditional short-circuit current | Easy9 MCB: 4500 A 63 A |
| Device location in system | Outgoer |
|---|---|
| Network frequency | 50 Hz |
| [Ue] rated operational voltage | 230 V AC 50 Hz |
| Residual current tripping technology | Voltage dependent |
| [Ui] rated insulation voltage | 440 V AC |
| [Uimp] rated impulse withstand voltage | 4 kV |
| Surge current | 250 A |
| Contact position indicator | Yes |
| Control type | Toggle |
| Mounting mode | Clip-on |
| Mounting support | DIN rail |
| Comb busbar and distribution block compatibility | Top: YES |
| Connection pitch | 18 mm between phases |
| 9 mm pitches | 4 |
| Height | 82 mm |
| Width | 36 mm |
| Depth | 72 mm |
| Colour | Grey (RAL 7035) |
| Mechanical durability | 5000 cycles |
| Electrical durability | AC: 2000 cycles 230 V AC 50 Hz |
| Connections - terminals | Tunnel type terminal (top or bottom) 1…25 mm² rigid Tunnel type terminal (top or bottom) 1…16 mm² flexible |
| Tightening torque | 2.5 N.m top or bottom |
| Market segment | Small commercial Residential |
| Standards | IEC 61008-1 |
|---|---|
| Product certifications | EAC CE GOST-R |
| IP degree of protection | IP20 |
| Pollution degree | 2 conforming to IEC 61008-1 |
| Tropicalisation | 2 |
| Relative humidity | 95 % at 55 °C |
| Ambient air temperature for operation | -25…60 °C |
| Ambient air temperature for storage | -40…85 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 4.000 cm |
| Package 1 Width | 7.500 cm |
| Package 1 Length | 9.000 cm |
| Package 1 Weight | 143.000 g |
| Unit Type of Package 2 | S02 |
| Number of Units in Package 2 | 39 |
| Package 2 Height | 15.000 cm |
| Package 2 Width | 30.000 cm |
| Package 2 Length | 40.000 cm |
| Package 2 Weight | 5.810 kg |
| Unit Type of Package 3 | P06 |
| Number of Units in Package 3 | 624 |
| Package 3 Height | 75.000 cm |
| Package 3 Width | 80.000 cm |
| Package 3 Length | 60.000 cm |
| Package 3 Weight | 100.960 kg |
| Warranty (in months) | 18 |
|---|
Specifications
Key Features
This is a Easy9 residual current circuit breaker (RCCB). It is a 2P circuit breaker with In rated current of 63A, AC type protection class and a 30mA earth leakage sensitivity. This product protects against electrical shock by direct or indirect contact and fire hazards. It also has protection against fire hazards due to persistent earth fault current. This product has a positive contact indications with fault tripping indication on the front panel by the position of the handle (0-I engraved). This is dedicated for residential and small commercial buildings market segment. This product is compliant with IEC 61008-1 standard. The (Im/IΔm) rated breaking and making short circuit capacity is 630A. The (Inc/IΔc) conditional rated short circuit current is 4500A. The electrical endurance is up to 2000 cycles. The mechanical endurance is up to 5000 cycles. The Ue operational voltage is 230VAC. The Ui rated insulation voltage is 440VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product color is light grey (RAL7035). The dimensions are (W) 36mm x (H) 82mm x (D) 72mm. It has an IP20 degree of protection. It becomes IP40 once in modular enclosure according to IEC/EN 60529 standard. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C.
What’s in the box

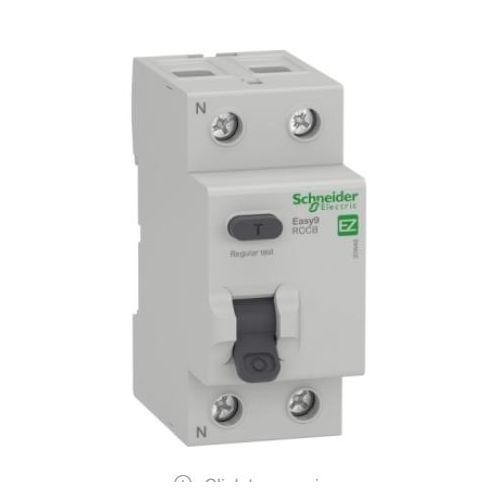

Easy9 Residual Current Circuit Breaker - 2P - 63 A - 30 mA - AC type - 230 V
Specifications
- SKU: SC692IP86IH9NNAFAMZ
- Production Country: China
- Size (L x W x H cm): Height 82 mm Width 36 mm Depth 72 mm
- Weight (kg): 0.1 kg
- Color: white
- Main Material: thermoplastic
