Hp DesignJet T630 24-inch Large Format Printer

HPDesignJet T630 24-inch Printer (5HB09A)

TheHP DesignJet T630 24-inch Printer (5HB09A) is a compact professional wide-format printer designed for architects, engineers, construction companies, designers, schools and businesses that need accurate large-format drawings, plans, presentations and technical documents. With support for media up to 24 inches (610 mm) wide, it provides the flexibility needed for both everyday A3/A4 documents and large A1/D-size projects.

UsingHP Thermal Inkjet technology and four separate ink cartridges in Cyan, Magenta, Yellow and Black, the T630 delivers up to 2400 x 1200 optimized dpi colour resolution. It can produce an A1/D plot in as little as 30 seconds, with a rated productivity of up to 76 A1/D prints per hour. Its line accuracy of approximately ±0.1% helps produce precise technical drawings, CAD plans and detailed line work.

The T630 is designed to make wide-format printing easier. Its automatic sheet feeder, roll feed, media bin and automatic horizontal cutter allow users to handle different types of projects without complicated manual preparation. HPClick software provides a straightforward way to submit multiple files, whileHP Smart allows users to manage and print projects from supported devices.

With 1 GB of memory, Gigabit Ethernet, USB 2.0, Wi-Fi and Wi-Fi Direct, the T630 can easily fit into both individual workstations and shared office environments. Its compact footprint and included printer stand make it practical for offices where space is important, while its relatively low power consumption helps support efficient everyday operation.

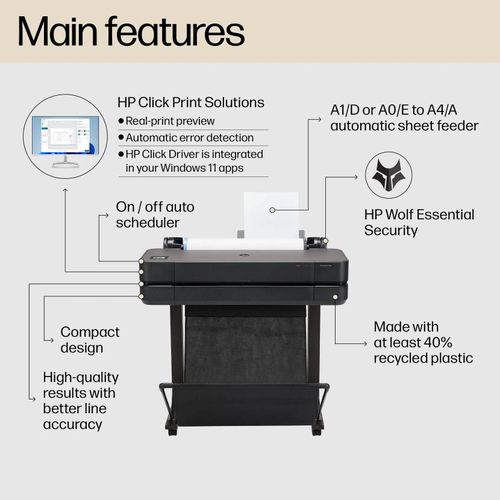

Key Features

• 24-inch wide-format professional printer
• HPThermal Inkjet technology
• Up to 2400 x 1200 optimized dpi colour resolution
• A1/D-size printing in as little as 30 seconds
• Up to 76 A1/D prints per hour
• 1 GB standard memory
• Four separate ink cartridges: C, M, Y and K
• Automatic sheet feeder
• Roll-feed printing
• Automatic horizontal cutter
• Built-in printer stand
• HPClick one-click printing workflow
• HPSmart app support
• Wi-Fi and Wi-Fi Direct
• Gigabit Ethernet
• USB 2.0
• ±0.1% line accuracy
• Supports media up to 24 inches wide
• Automatic multi-size printing
• HPWolf Essential Security features

Full Specifications

General Specifications

• Series: DesignJet
• Model: T630 24-inch
• Product Number: 5HB09A
• Printer Type: Large-format/plotter printer
• Functions: Print
• Printing Technology: HPThermal Inkjet
• Print Head: 1 integrated printhead
• Printhead Nozzles: 1,376
• Memory: 1 GB
• Internal Storage: None
• Built-in Stand: Yes

Printing Specifications

• Maximum Print Speed: 30 seconds per A1/D page
• Productivity: Up to 76 A1/D prints per hour
• Maximum Colour Resolution: Up to 2400 x 1200 optimized dpi
• Line Accuracy: ±0.1%
• Minimum Line Width: Approximately 0.02 mm
• Ink Drop: 5.5 pl for C/M/Y and 12 pl for Black
• Print Languages: HPGL/2, HPRTL, CALS G4, JPEG and URF
• Ink Technology: Dye-based C/M/Y; pigment-based Black

Ink System

• Number of Cartridges: 4
• Colours: Black, Cyan, Magenta and Yellow
• Black Cartridge Options: 38 ml and 80 ml
• Colour Cartridge Volume: 29 ml each
• Printhead: Cyan, Magenta, Yellow and Black
• Maintenance Efficiency: HPstates that the printer can use up to 95% less ink for routine maintenance compared with certain competing plotters.

Media Handling

• Maximum Media Width: 24 inches / 610 mm
• Standard Roll Width: 279–610 mm
• Roll Diameter: Up to approximately 100 mm
• Sheet Feed: Yes
• Automatic Sheet Feeder: Yes
• Roll Feed: Yes
• Automatic Cutter: Yes
• Media Bin: Yes
• Maximum Media Thickness: Up to approximately 11.8 mil
• Recommended Media Weight: 60–280 g/m² for roll/manual feed; 60–220 g/m² through the automatic sheet feeder

Supported Media Types

• Bond paper
• Coated paper
• Heavyweight coated paper
• Plain paper
• Bright white paper
• Blueprint paper
• Natural tracing paper
• Clear and matte film
• Satin, gloss and semi-gloss photo paper
• Polypropylene
• Self-adhesive media

Supported Sizes

• A4
• A3
• A2
• A1
• B sizes
• Custom wide-format sizes up to 610 mm wide
• Roll media up to approximately 1.9 metres in length for manual feed

Connectivity

• USB: Hi-Speed USB 2.0
• Ethernet: Gigabit Ethernet 1000Base-T
• Wireless: Wi-Fi 802.11a/b/g/n
• Wi-Fi Direct: Yes
• Mobile Printing: HPSmart, Apple AirPrint andHP Print Service Plugin
• Cloud/Remote Printing: Supported throughHP Smart and compatible services

Software

• HPClick App
• HPClick Driver
• HPSmart
• HPPrint Preview
• HPEasy Start
• HPDesignJet Utility
• HPSupport Assistant

Physical Specifications

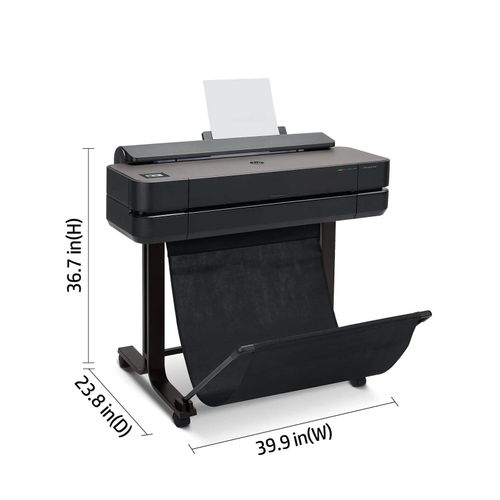

• Dimensions: Approximately 1,013 x 605 x 932 mm
• Weight: Approximately 28.9 kg
• Package Weight: Approximately 37.4 kg
• Power Input: 100–240V AC, depending on regional configuration
• Power Consumption: Less than 35W while printing
• Ready Mode: Less than 5.6W
• Sleep Mode: Less than 2.1W
• Off Mode: Less than 0.2W
• Operating Temperature: 5–40°C
• Operating Humidity: 20–80% RH

Warranty

• Manufacturer Warranty: One-year limited hardware warranty.

Why It Is a Must-Have Office Appliance

The HPDesignJet T630 is an excellent solution for businesses that regularly produce technical drawings, architectural plans, CAD documents, maps and large-format presentations. Its ability to handle both roll and sheet media gives users greater flexibility than a standard office printer.

Its fast A1 printing, high-resolution colour output and precise line accuracy make it suitable for professional documents where clarity and scale are important. Wireless, Ethernet and USB connectivity also allow it to be integrated into different office environments.

The included stand and compact design make the T630 particularly practical for professional offices that need wide-format printing without installing a much larger production plotter.

Genuine Product Information

This product is theHP DesignJet T630 24-inch Printer, product number 5HB09A, the officialHP model designation. It is a genuineHP model and not a copy or imitation version.

Conclusion

TheHP DesignJet T630 24-inch Printer (5HB09A) is a compact and versatile professional plotter designed for high-quality wide-format printing. With A1 printing as fast as 30 seconds, 2400 x 1200 optimized dpi resolution, ±0.1% line accuracy, roll and sheet feeding, automatic cutting and wireless/network connectivity, it provides the capabilities required for professional technical and graphic printing.

Its combination of speed, accuracy, flexible media handling and space-efficient design makes it a practical choice for architects, engineers, designers, construction companies and organisations that depend on reliable large-format printing.
