The Hikvision DS-2CD1043G0-I camera is dedicated for professional IP CCTV systems. The compact camera has been equipped with 4 MP 1/3" CMOS sensor providing good video coverage even in low-light conditions. Along with IR illuminator made in EXIR 2.0 technology with range up to 30 m, the camera can also operate in complete darkness. The built-in 2.8 mm lens has 100° viewing angle. The IP67-rated housing of the camera protects the electronics against adverse weather conditions. The camera can be powered conventionally with a 12 VDC source or with the use of PoE option (802.3af).
Specifications

Name	HIKVISION DS-2CD1043G0-I
Code	K17665
Video system	IP
Housing type	Compact (bullet)
Direction adjustment	3-axis
Image sensor	1/3" Progressive Scan CMOS
Sensitivity	0.028 lx @ (F2.0, AGC ON), 0 lx in IR mode
Resolution	2560 x 1440 pixels
Frame rate	20 fps at 2560 x 1440 / 25 fps at lower resolutions
Lens	2.8 mm @ F2.0 / 100o
Compression	H.265+/H.265/H.264+/H.264/MJPEG
Number of video streams	2
Bit rate range	32 kbps - 8 Mbps
IR range	up to 30 m
Video processing	3D-DNR, DWDR, BLC
Mechanically switching IR filter	Yes
Gain	Automatic/Preset
Alarm events	Motion detection, video tampering
Intelligent image analysis	Not implemented
Corridor mode	No
ROI	1 region
ANR	No
Recording	NAS (NFS/SMB/CIFS), FTP (screenshots)
Network interface	RJ-45 10/100Base-T
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP,  PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Supported standards	ONVIF (S, G profiles), PSIA, CGI, ISAPI
Housing material	Aluminum alloy, plastics
IP rating	IP67
Power	12 VDC ± 25%  PoE IEEE 802.3af
Power consumption	5 W / 7 W (PoE)
Operating temperature range	-30°C ...+50°C
Dimensions	69 x 66 x 172 mm
Weight	0.28 kg

Product series
The camera belongs to a new EasyIP Lite series characterized by high performance and affordable price. The series supports motion detection and video tampering detection. The cameras from the series also provide corridor mode and possibility of defining one Region of Interest (ROI).
H.265+/H.265 video compression
H.265+/H.265 - higher compression rate with preservation of the image quality of H.264
The camera implements several video compression methods, H.265+, H.265, H.264+, H.264, MJPEG. Compared with H.264, H.265 can reduce by half the data stream, which translates into proportional savings of the disk space or into extended data retention time. H.265+ and H.264+ are Hikvision standards based on the original systems and optimized for CCTV applications. They further minimize the streams in typical video surveillance scenarios. With the advanced video compression algorithms, the camera can be used in IP CCTV systems based on modern NVRs implementing H.265 standard (the DS-76/77/96NI-I/K series supports H.265+, H.265, H.264+, H.264). Of course, the camera can also operate with older models supporting H.264 (the DS-76/77NI-E series supports H.264+, H.264).
Convenient client applications
The iVMS 4200 client software enables users of HIKVISION devices to manage them in IP networks. The software allows for configuration and management of NVRs/DVRs, IP and analog cameras (in hybrid systems). The iVMS 4200 utility can remotely manage up to 256 devices, with the use of up to 4 monitors. One monitor can display up images from up to 64 cameras. Aside from system configuration and live monitoring, the utility can be used for remote playback, notifying, two-way audio transmission, creating multi-level e-maps.

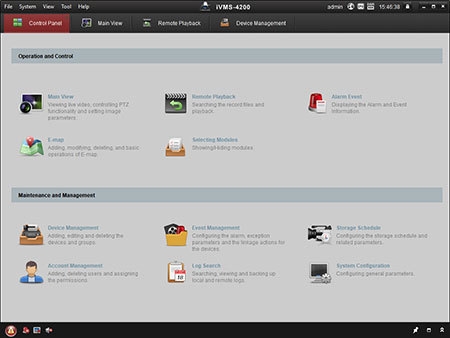

View of the control panel of the iVMS-4200 application
Hik-Connect is a mobile application, intended for smartphones running Android or iOS operating systems. It can be used for remote live viewing of images from DVRs, NVRs, network cameras via Wi-Fi, 2G or 3G networks, and for playing back recorded video files. The application connects with the devices by IP addresses and/or through the P2P cloud.
