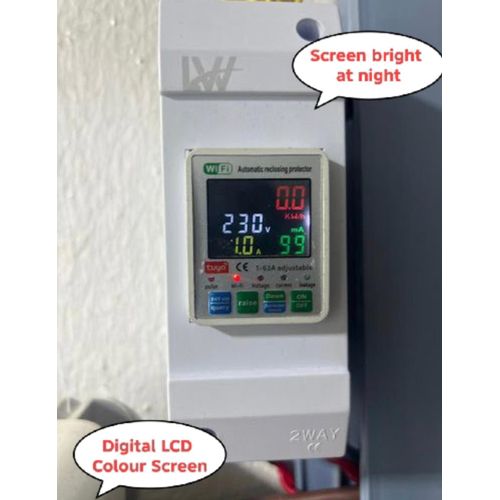

Smart WiFi Energy Power Check Meter Unit Reader and Protector 63A

Smart Wifi Multifunction Energy/Current/Voltage Protection Meter -63A single phase

Are you sharing one prepaid meter? Do you want to allocate units to each tenant? Do you want to control your energy consumption from anywhere in the world via remote monitoring on your phone or laptop? Do you want power to automatically cut off once you exhaust the units allocated? Do you want to switch off and on power in your house or appliances remotely?

Then this meter is for you!

Function

1. Remote control at anytime from anywhere

2. Schedule/ Timer/ oop timer

3. Energy monitoring

4. Under voltage protection 150V-190V(adjustable)(default: 170V)

5. Over voltage proteciton 250V-300V(adjustable)(default: 270)

6. Over current protection 1A-63A(adjustable)(default: 63A)

7. Electric leakage protection: 10-99mA

8. Preset current/ voltage threshold values by app, Once the real-time/ current/ voltage reaches the threshold values, The connected electrical appliances will be turned off automatically

Specification

Rated Supply Voltage: AC 220V

Operation Voltage Range: AC80-400V( single phase)

Rated Frequency: 50/60HZ

Electric Current(>A) Setting Range: 1-63A

Overvoltage (>U) Setting Range: 250-300V(adjustable)

Undervoltage(

Electric Leakage Protection: 10-100Ma(This feature can be turned off)

Error: 2%

>U and

Reset/ Start Delay: 5s-90s

Voltage Measurement Accuracy: 400V

Output Contact: 1NO

Altitude: ≤2000m

Operating Temperature: (-30~70℃) Power Display

Range: 0-99999.9kw/h
