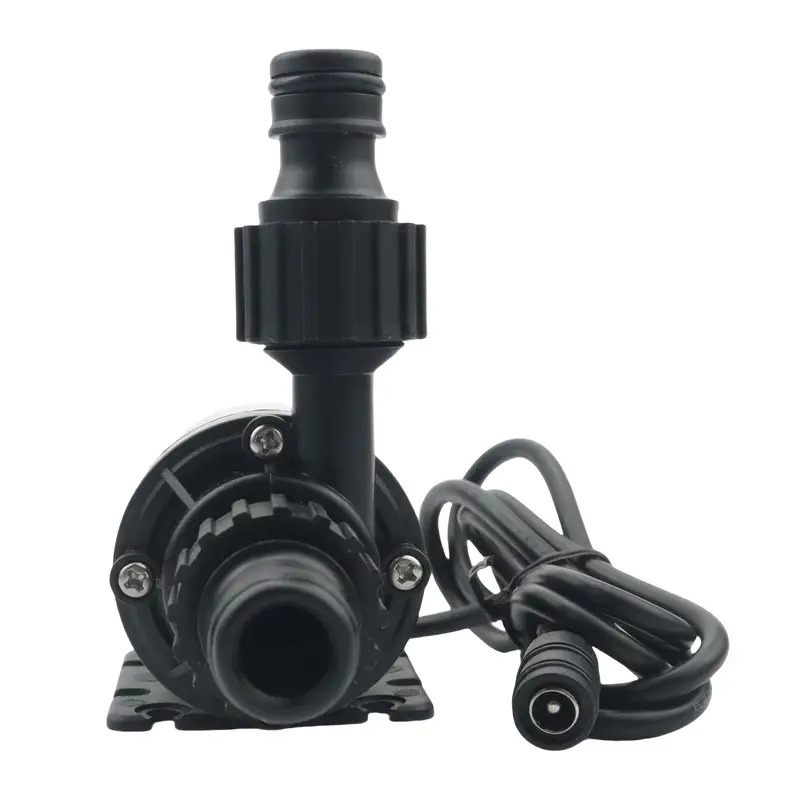

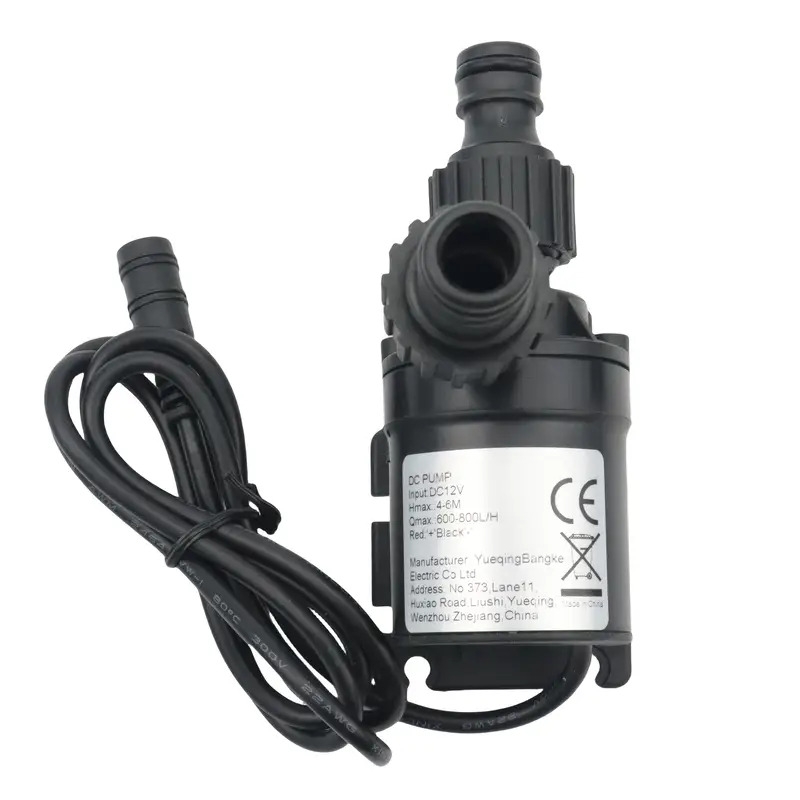

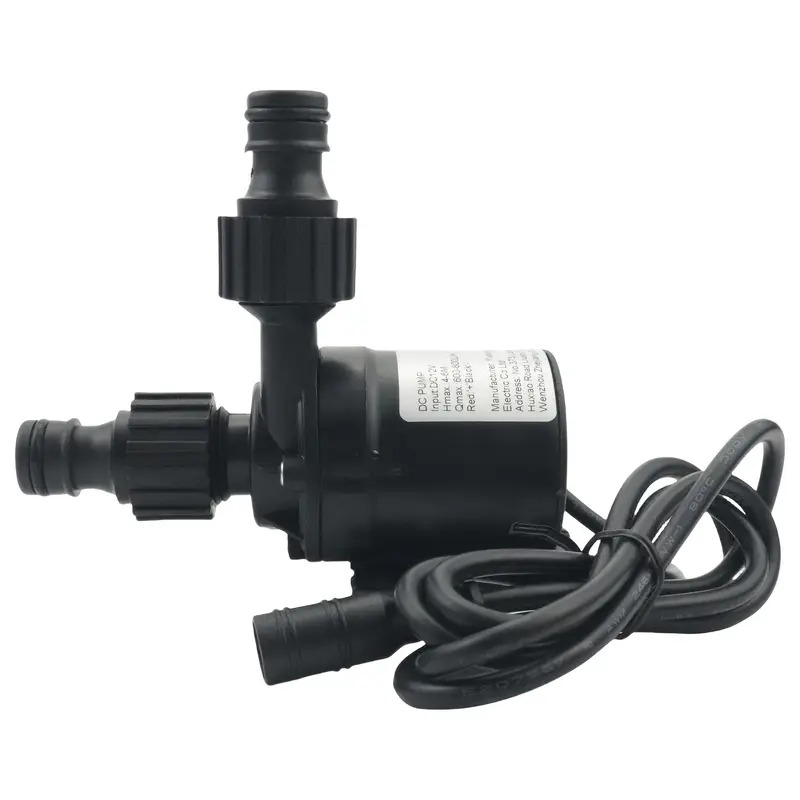

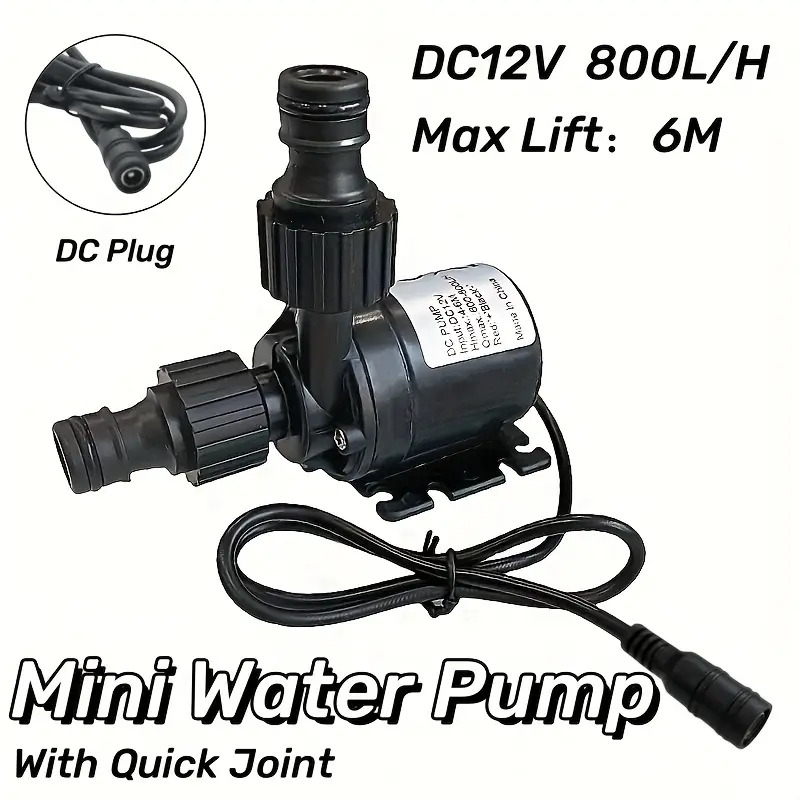

Small motor booster pump, suitable for rockery water and cold fish tanks

Product Features:

o Maintenance-free, compact, high efficiency, low power consumption, strong anti-interference capability, and smooth operation.
o Brushless, pollution-free, electronic commutation, and long life.

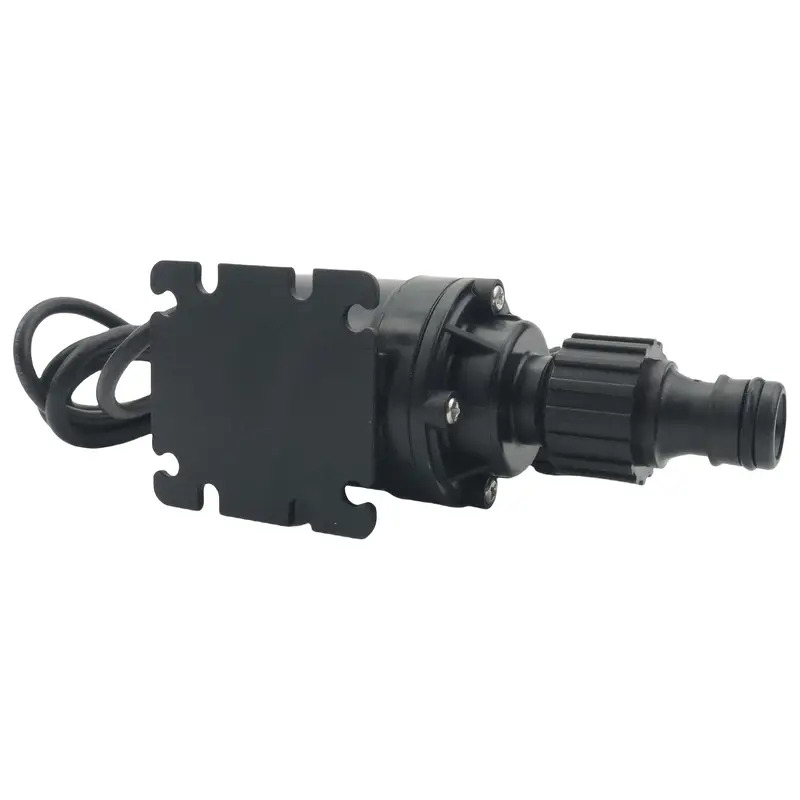

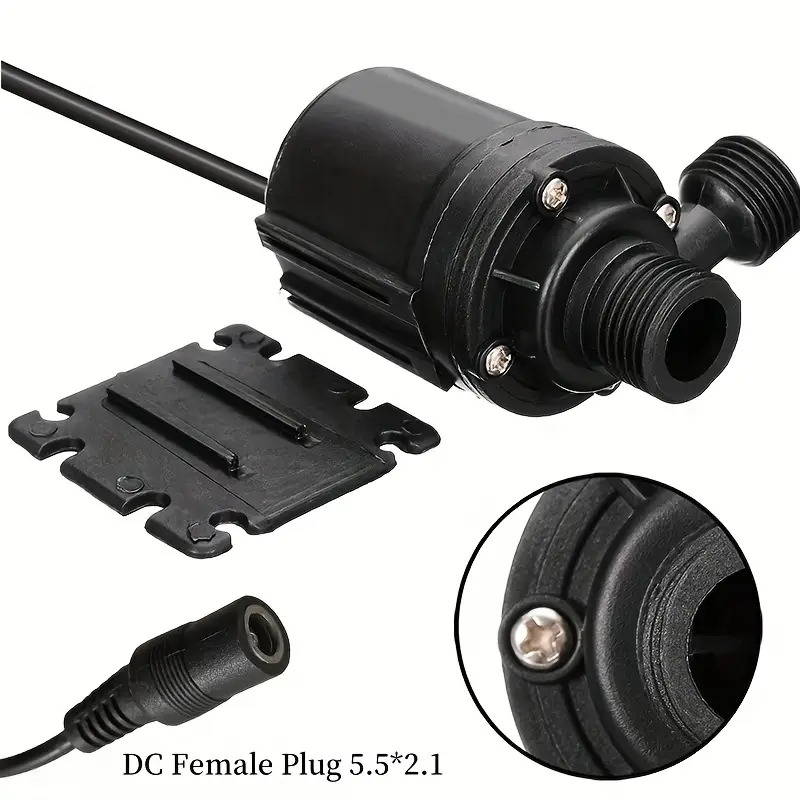

o The pump's mounting base can be replaced with shock-absorbing silicone rubber to absorb vibration and reduce noise. The silicone rubber position is adjustable for easy installation.
o The motor's stator and circuit board are encapsulated with epoxy resin and completely isolated from the rotor, eliminating leakage problems associated with long-term submersion in DC motor-type water pumps and providing complete waterproofing.
o This eliminates a range of issues, including pump seizure and sudden malfunctions in complex environments.
o The pump's shaft is constructed of high-performance ceramic (zirconia) (a stainless steel shaft is optional for reduced cost), offering high precision and excellent wear resistance. This is achieved through the precise fit of a high-precision bushing and ceramic shaft.
o Pump parameters, including voltage and head, can be adjusted to meet specific requirements, maintaining constant volume and operating across a wide voltage range.
o This eliminates the risk of pump driver failure, which currently stands at approximately 2% to 3%. After extensive research and development, the pump's mortality rate has been reduced to less than 0.05%.

Optional speed adjustment (PWM, 0-5V analog signal, potentiometer)

If increased pump head is required, pumps can be connected in series to double the head.

Amphibious (installed below the liquid level for external use)

Notes:

1. This pump is a submersible centrifugal pump. The pump must be immersed in water, or the external water source must be lower than the pump's inlet nozzle when connecting the pipe. This allows air to be expelled from the pump's inlet chamber after water enters the pump, ensuring proper pumping.

2. When selecting a pump, please be sure to consider the operating environment, such as continuous operating time, water temperature, and medium. Pumps with a power exceeding 24W are not suitable for long-term continuous operation in water temperatures above 65°C. Please consult with a professional to select the most suitable pump model. 3. The above current is the pump's open-circuit current, which is the current when the pump is placed directly in water without any system connection. This is also the pump's maximum current. Once connected to a system, the pump's operating current will drop to 70%-85% of the maximum load current.
4. The pump's head is the maximum water delivery height, meaning the flow rate at the point of maximum head is zero.
5. The pump's flow rate is the horizontal flow rate, meaning the flow rate when pumping water horizontally.
6. This pump cannot operate without water for extended periods.

Water Pump Applications:
Electric vehicle cooling systems, water circulation systems for automated equipment, water cooling appliances, water dispensers, bathroom products, paper shredders, soilless cultivation, water-heated mattresses, air conditioning pumping, aquariums, desktop crafts, footbaths, water-heated mattresses, water heaters, computer water cooling, water cooling fans, med-ic-al equipment, pharmaceutical systems, chemical industry, circulation systems, cooling and heat dissipation systems, refrigeration systems, water-cooled air conditioners, water cooling fans, mobile showers, solar fountains, solar circulation systems, home booster systems, villa water supply systems, small irrigation systems, water treatment systems, small water supply systems, automotive circulation systems, automotive heating systems, machine tools, home appliances, kitchen appliances, bathroom products, and hot water circulation systems.
