Product details

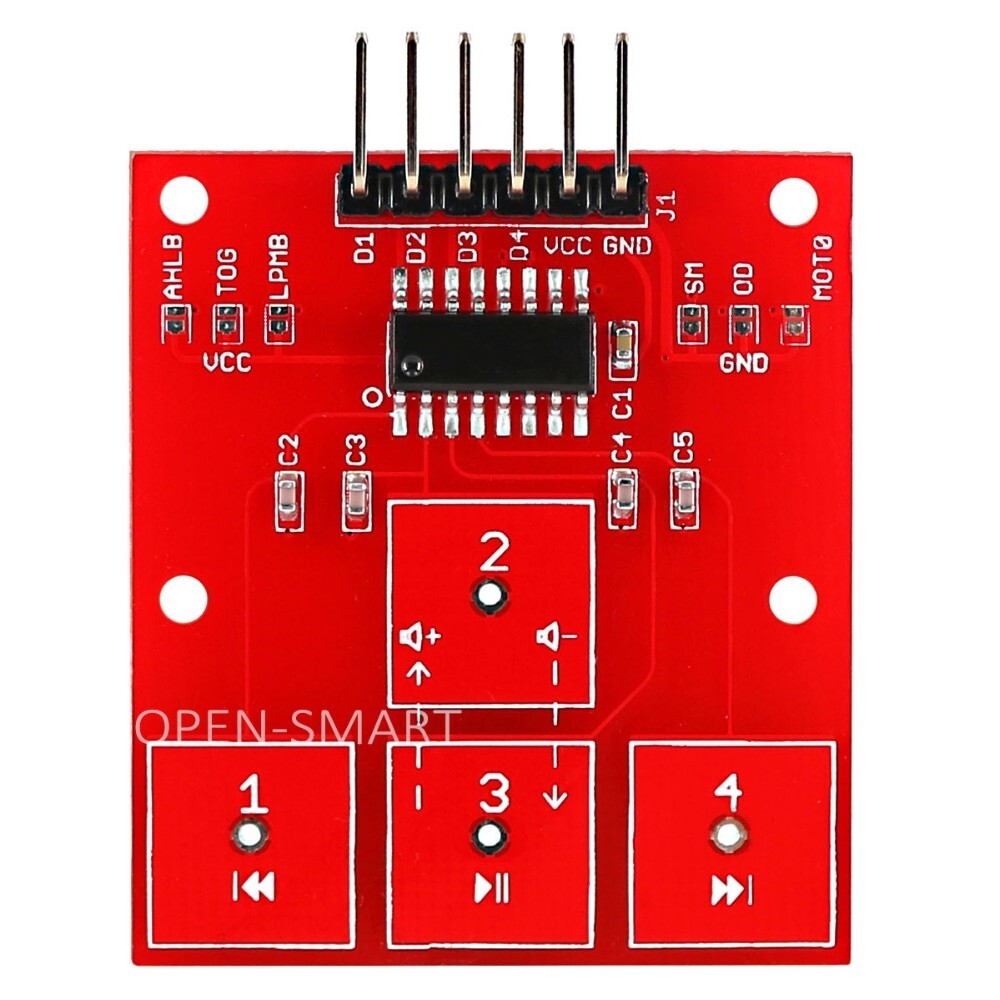

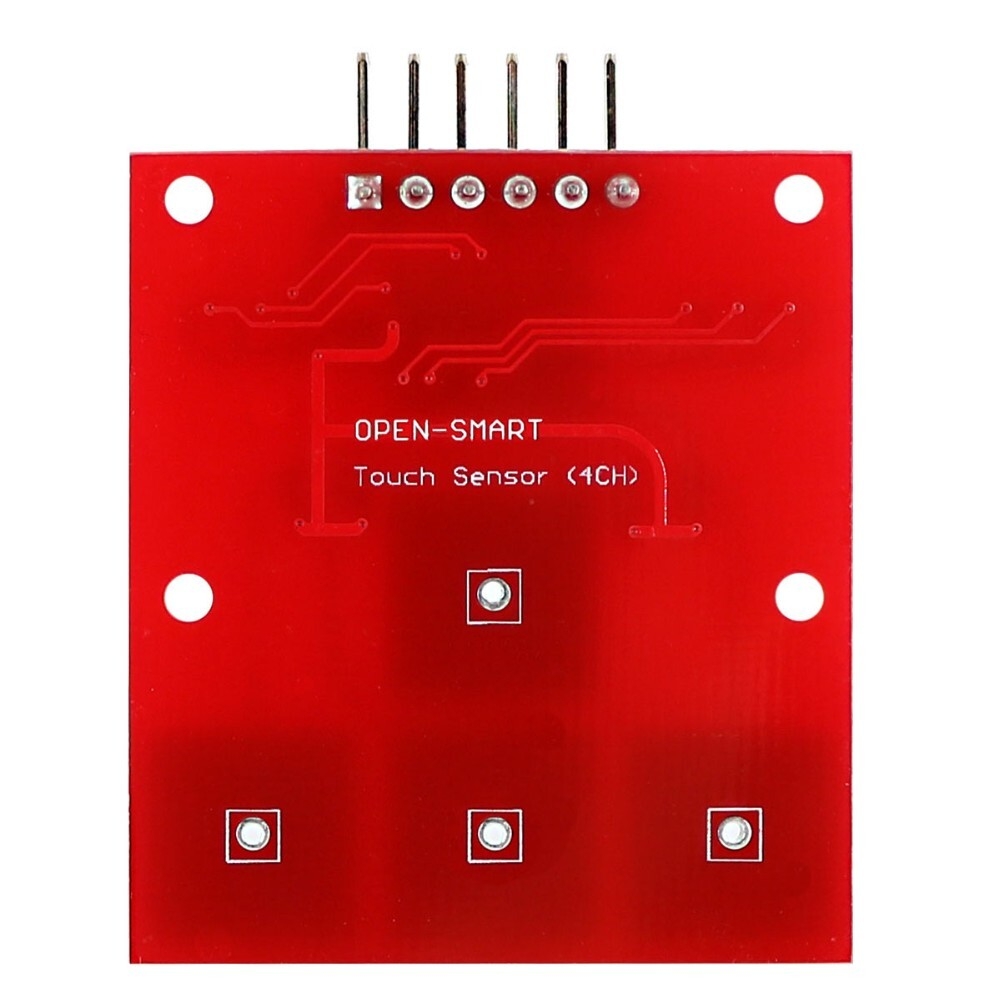

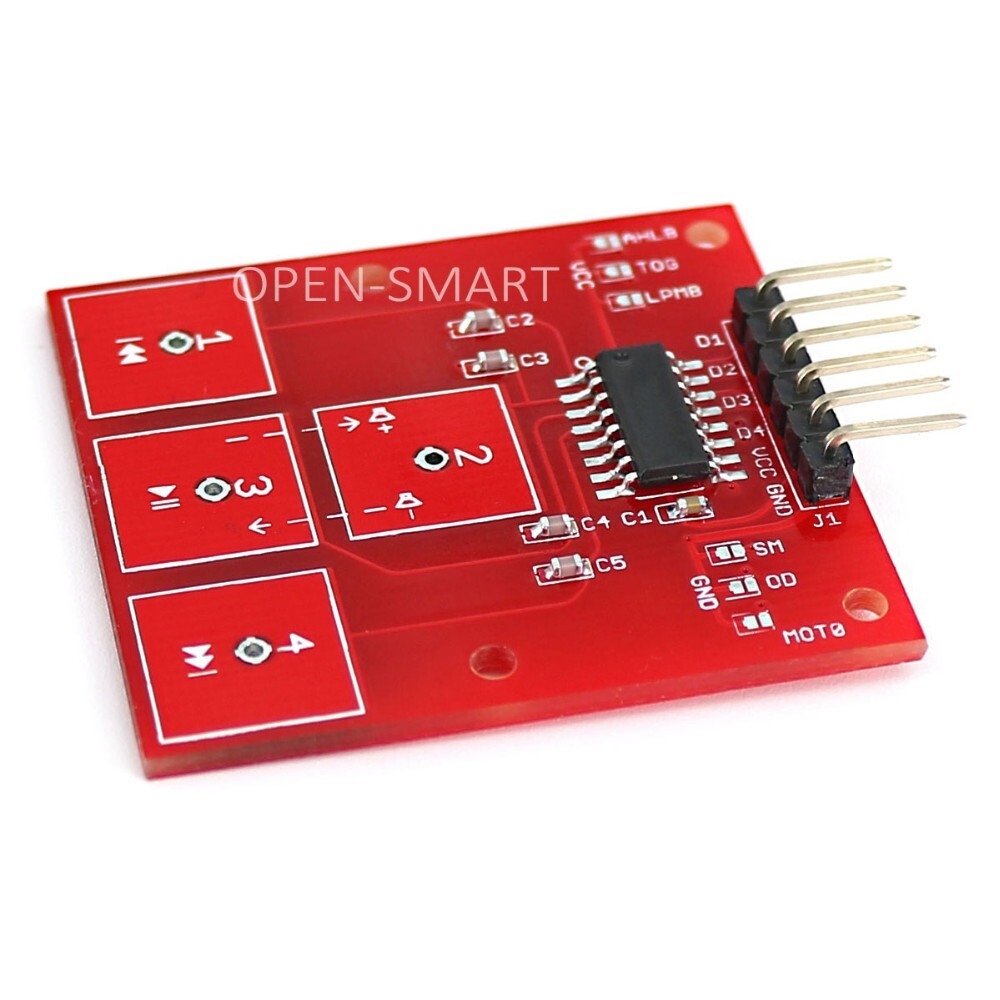

Based on the touch sensor chip UTouch04B, the module is capacitive touch switch module. By default setting, the module is in direct mode which tells that normally the OUT pin of the module outputs low and it will output high only when you touch the appropriate location.
You can set the working mode by shorting the corresponding pads. It be installed on various surfaces, such as plastic, glass and non-metallic materials.
Features:
- Touch Channel: 4-Channel
- Do not touch within 0.5 seconds after power up
- Funny and easy to use, can replace the traditional buttons;
- Low power consumption;
- Strong anti-interference ability;
- Working voltage: 2.5 - 5.2V DC;
- Onboard output indicator
- D1, D2, D3, D4 pads: output logic level
- Pad in the touch area: you can solder a touch spring to increase the touch distance.
- Great for DIY, smart home project.
Photos
Specifications
Key Features
Based on the touch sensor chip UTouch04B, the module is capacitive touch switch module. By default setting, the module is in direct mode which tells that normally the OUT pin of the module outputs low and it will output high only when you touch the appropriate location.
You can set the working mode by shorting the corresponding pads. It be installed on various surfaces, such as plastic, glass and non-metallic materials.
Features:
- Touch Channel: 4-Channel
- Do not touch within 0.5 seconds after power up
- Funny and easy to use, can replace the traditional buttons;
- Low power consumption;
- Strong anti-interference ability;
- Working voltage: 2.5 - 5.2V DC;
- Onboard output indicator
- D1, D2, D3, D4 pads: output logic level
- Pad in the touch area: you can solder a touch spring to increase the touch distance.
- Great for DIY, smart home project.
Specifications
- SKU: GE779EC71J1GINAFAMZ
- Weight (kg): 1KG
- Color: RED
