Mini 3G HDMI to SDI Converter Adapter

Mini 3G HDMI to SDI Converter Adapter HD to BNC SDI/HD-SDI/3G-SDI 1080P Multimedia HD Video Converter Portable Mini Size

Introduction:

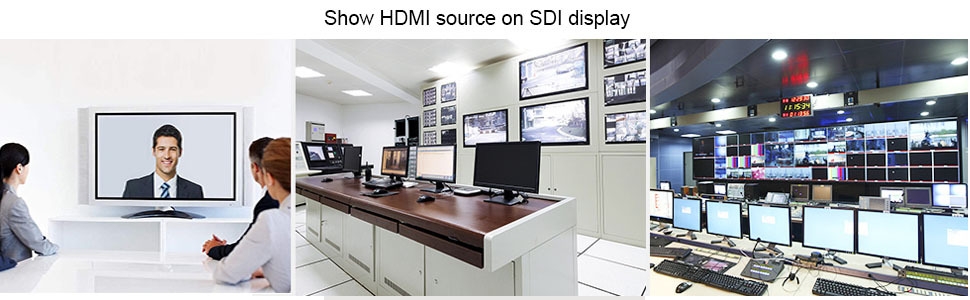

The MINI HDMI to SDI Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.970 Gbit/s to give you high resolution signal without any loss. For professionals this means that it is now easier to convert your high definition HDMI signal with audio to SDI for long distance transmission and display your work on SDI displayer. (Do not support Blackmagic and SONY brand device,Do not support SD(480p/i,756p/i)

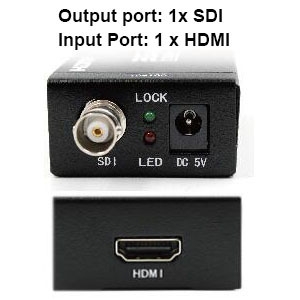

Port introduction:

SDI-OUT: This port is where you connect the SDI display with SDI cable .

HDMI IN: This port is where you connect the HDMI source with HDMI cable.

DC IN: Plug the 5V DC power supply into the unit.

Support resolution:

*HDMI input /SDI output resolution: 720p/50/60, 1080i/50/60, 1080p24/25/30/50/60.

*when hdmi resolution is 1080i/50/60,the sdi resolution is 1080p/50/60

*this converter does not support 480p/i,576p/i

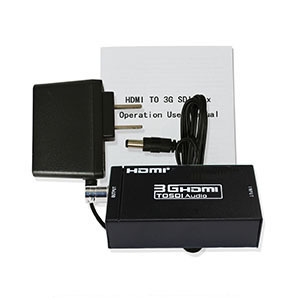

Package:

1pcs hdmi to sdi converter

1pcs Operation Manual

1pcs US power adapter

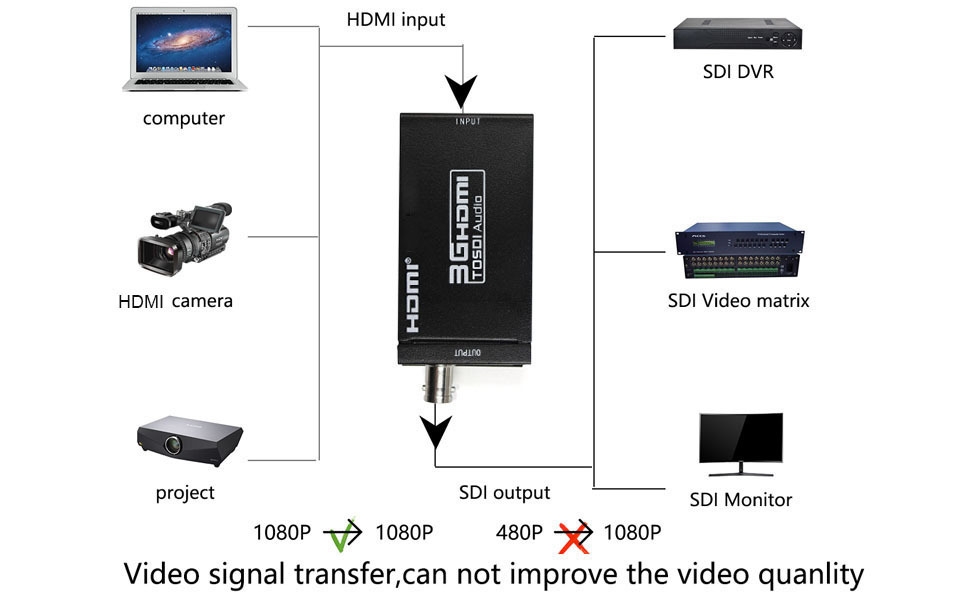

The way of connection:

1) Connect the signal source 's HDMI output to the HDMI input of this device via the HDMI cable (Package has not the HDMI cable) .

2) Connect the input of the sdi display to the sdi output of this device via a sdi cable (Package has not the sdi cable)

3) Connect the the 5V power adapter to the converter(Package has the 5V US power adapter ) .

4) Set sdi signal on the sdi display
