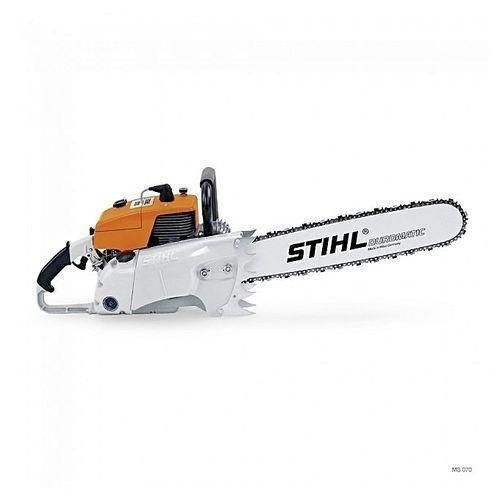

HEAVY DUTY TIMBER STIHL CHAIN SAW MACHINE- 070

Stihl 090 G Chainsaw Parts Identification

Stihl 090 G Parts List suitable for the corect identification of all parts of the Stihl 090 G chainsaw. Available as a full free PDF ownload, contains clear exploded diagrams to help you quickly find the part that you need in the chainsaw workshop.

The Stihl 090 G was only made between 1969 – 1985.With a 2:1 ratio (gearing). Despite having the name “090 G” it uses the motor of 070. The Stihl 090 model chain saw enjoyed only moderate success for two major reasons. The first being, its over powered engine meant that it was best suited for heavy duty, professional usage. Second of all, 2) It was very cumbersome in terms of both size as well as weight making a less than favourable choice for amateur work or light duties.

Contents of Stihl 090 G parts list

Introduction, Specifications, Clutch, Engine, Ignition system, Rewind starter, Throttle control,system, Carburettor, Av system, Shaft, Cutting tool drive, Support frame, Special servicing tools and aids.
