FNIRSI FNAC-28 Tester USB/Type-C Ammeter Voltmeter Fast Charging Protocol Detection Trigger Power Tester
The FNAC-28 USB Tester is a multifunctional USB voltage and current meter, as well as a quick charge trigger device for mobile communication terminals.

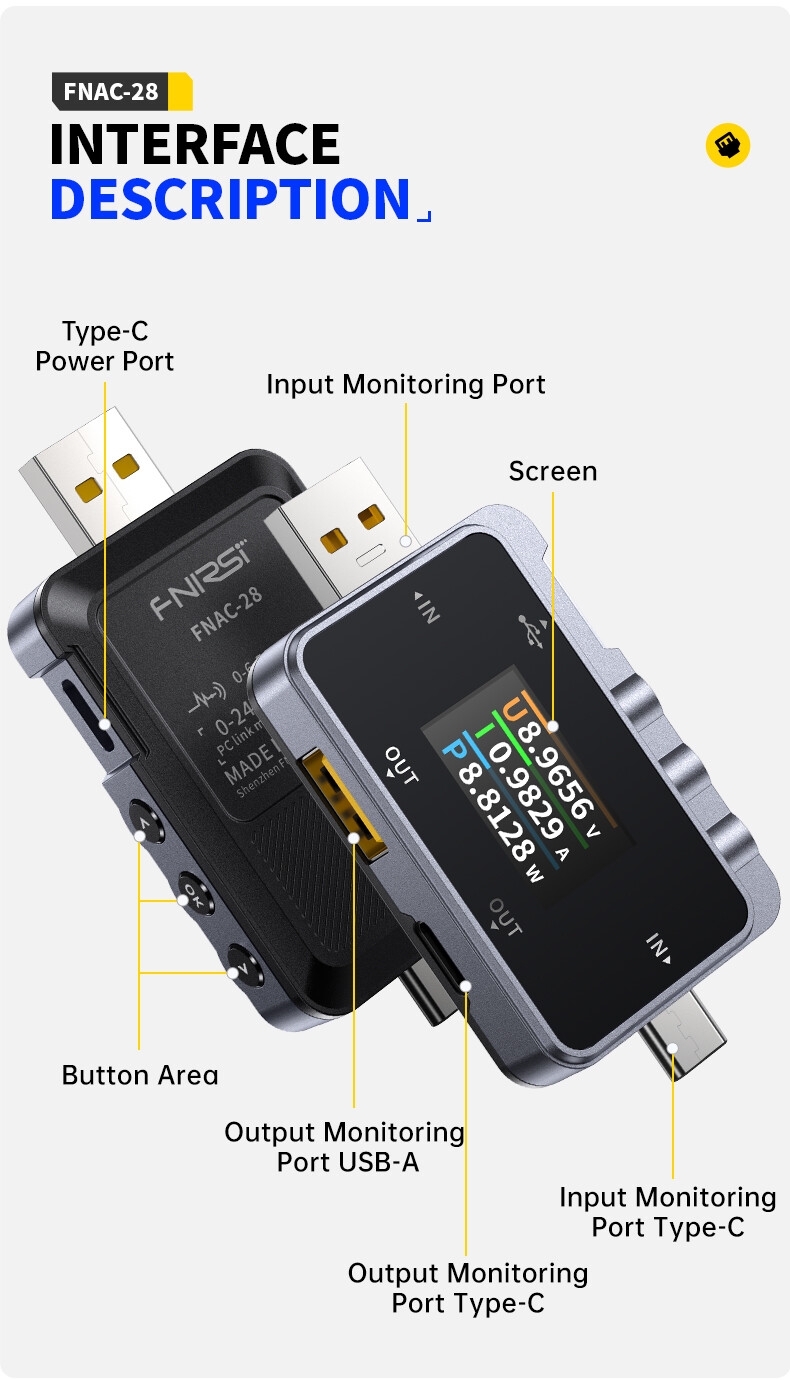

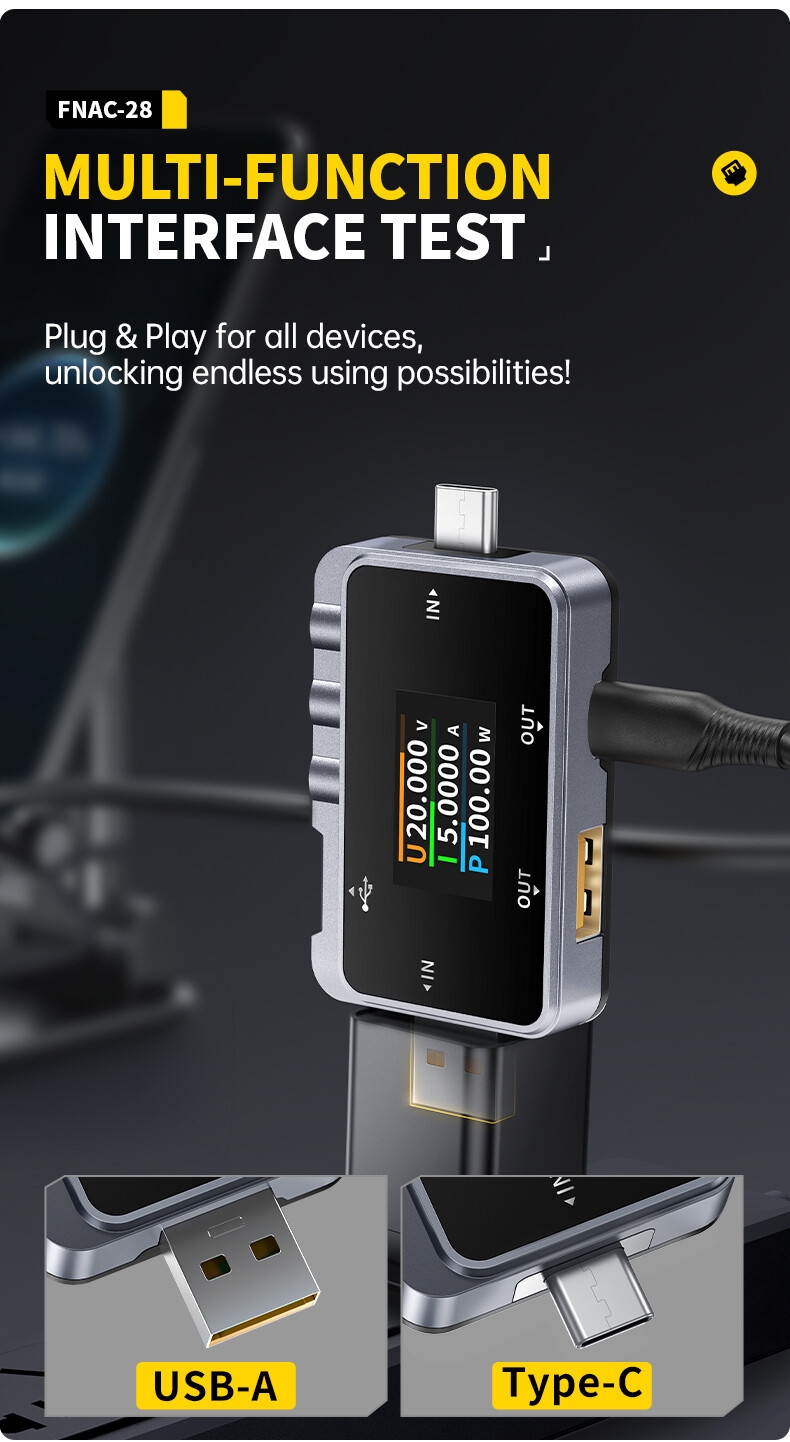

It features a full-colour, ultra-wide viewing angle TFT LCD and integrates multiple interfaces, including USB-A and Type-C male and female connectors, ensuring broad compatibility.
Utilising an external 16-bit ADC chip, it offers high measurement accuracy.

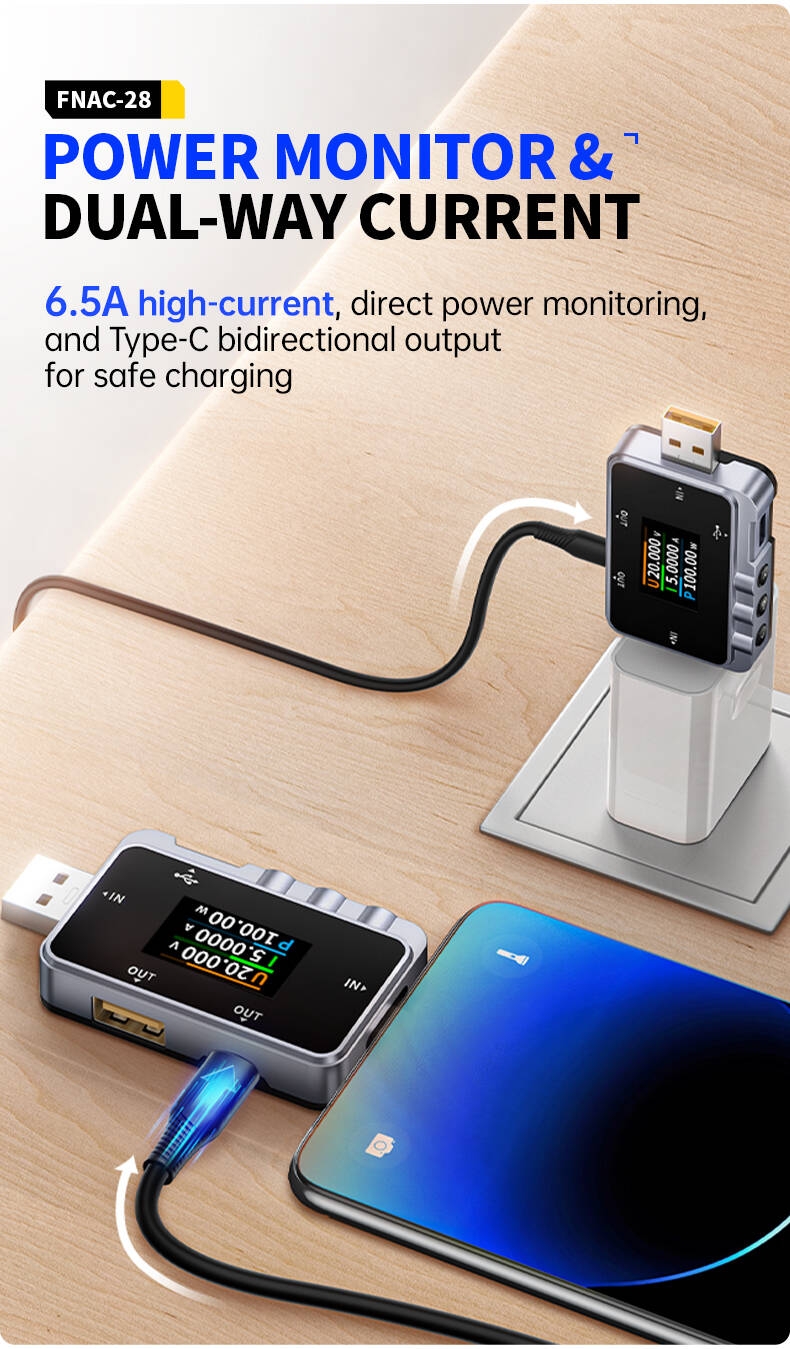

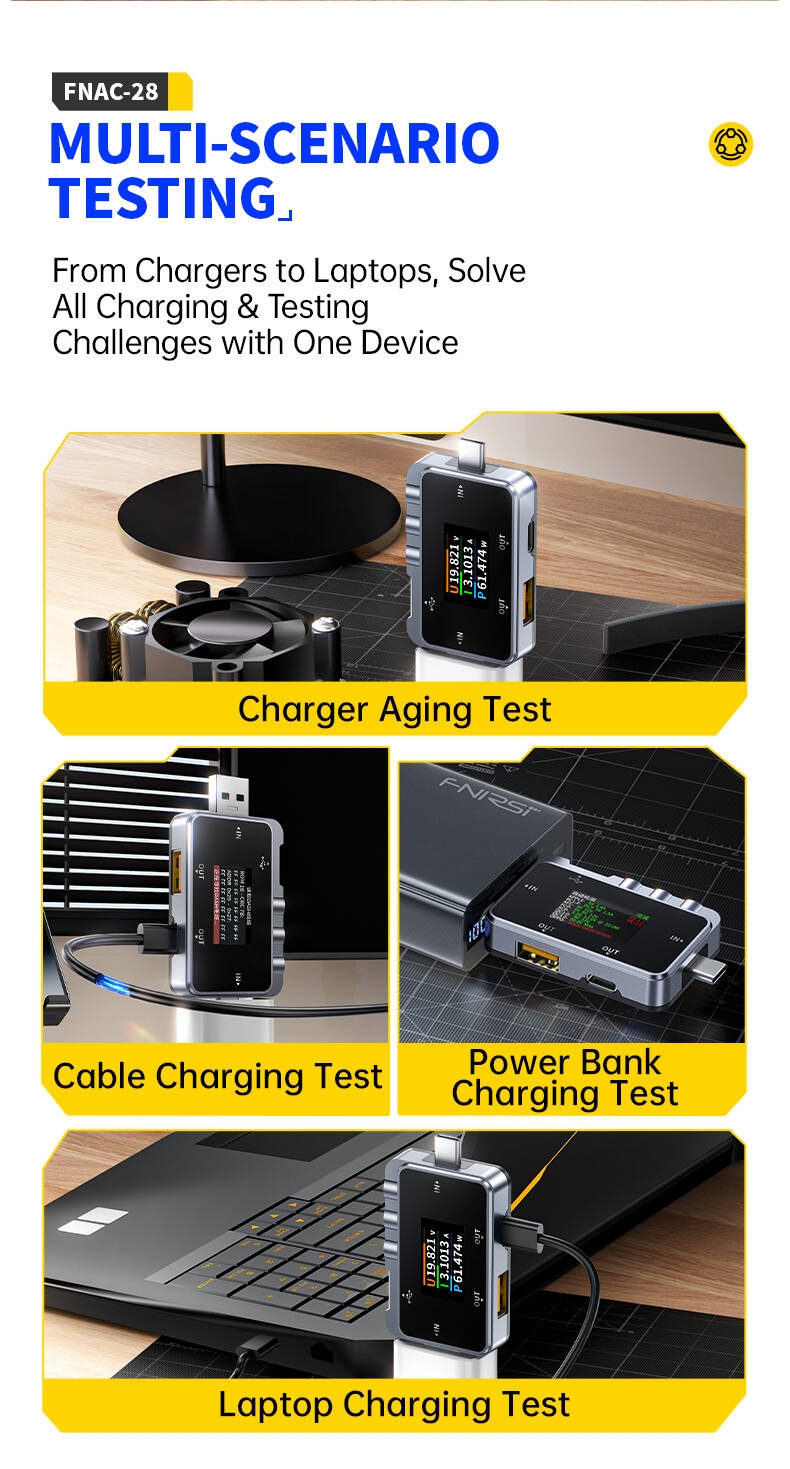

This device can measure the power supply or consumption of USB interfaces, phone chargers, USB drives, and other products.

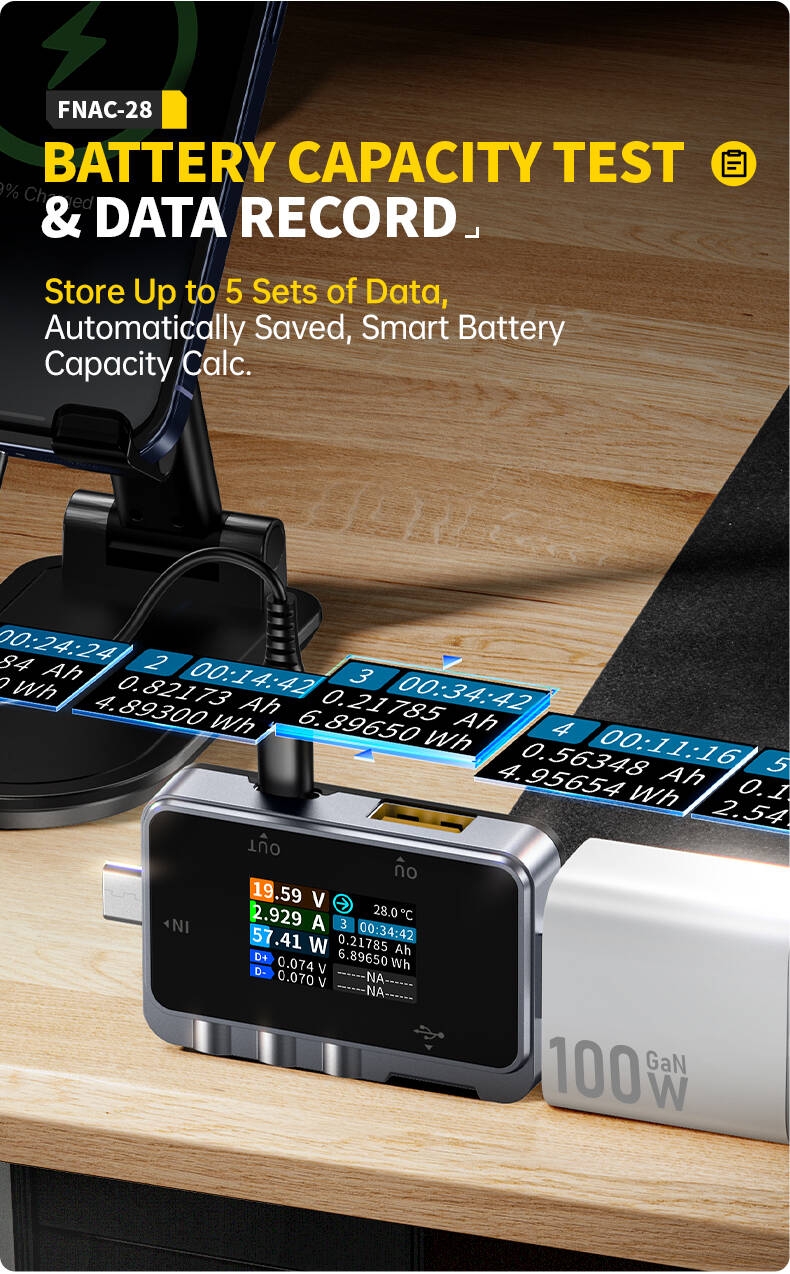

It can also measure phone charging power and the input and output conditions of power banks and perform quick charge protocol testing for chargers.

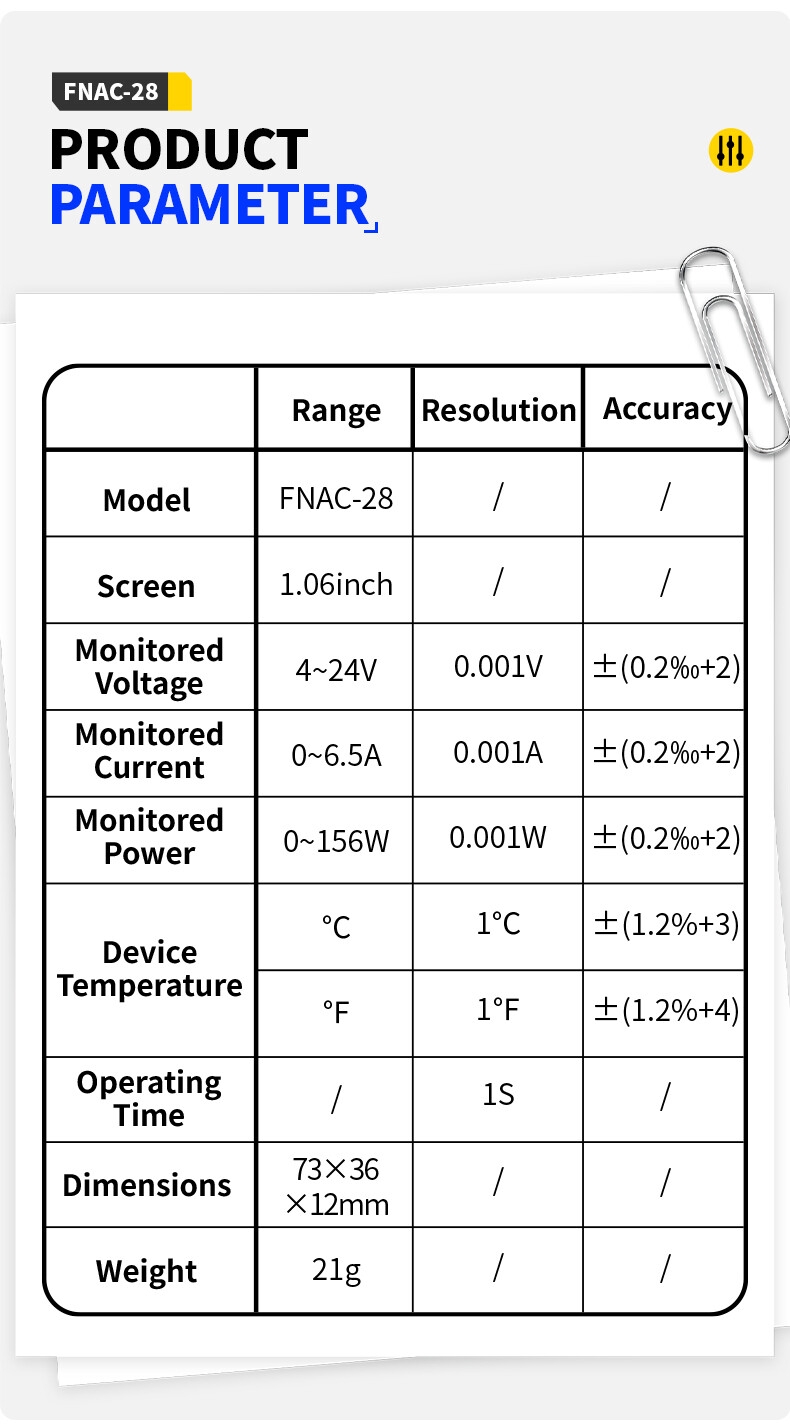

Model: FNAC-28
Screen: 1. 06-inch colour screen
Monitored Voltage: 4~24V
Monitored Current: ~0~6.5A
Monitored Power: ~0~156W

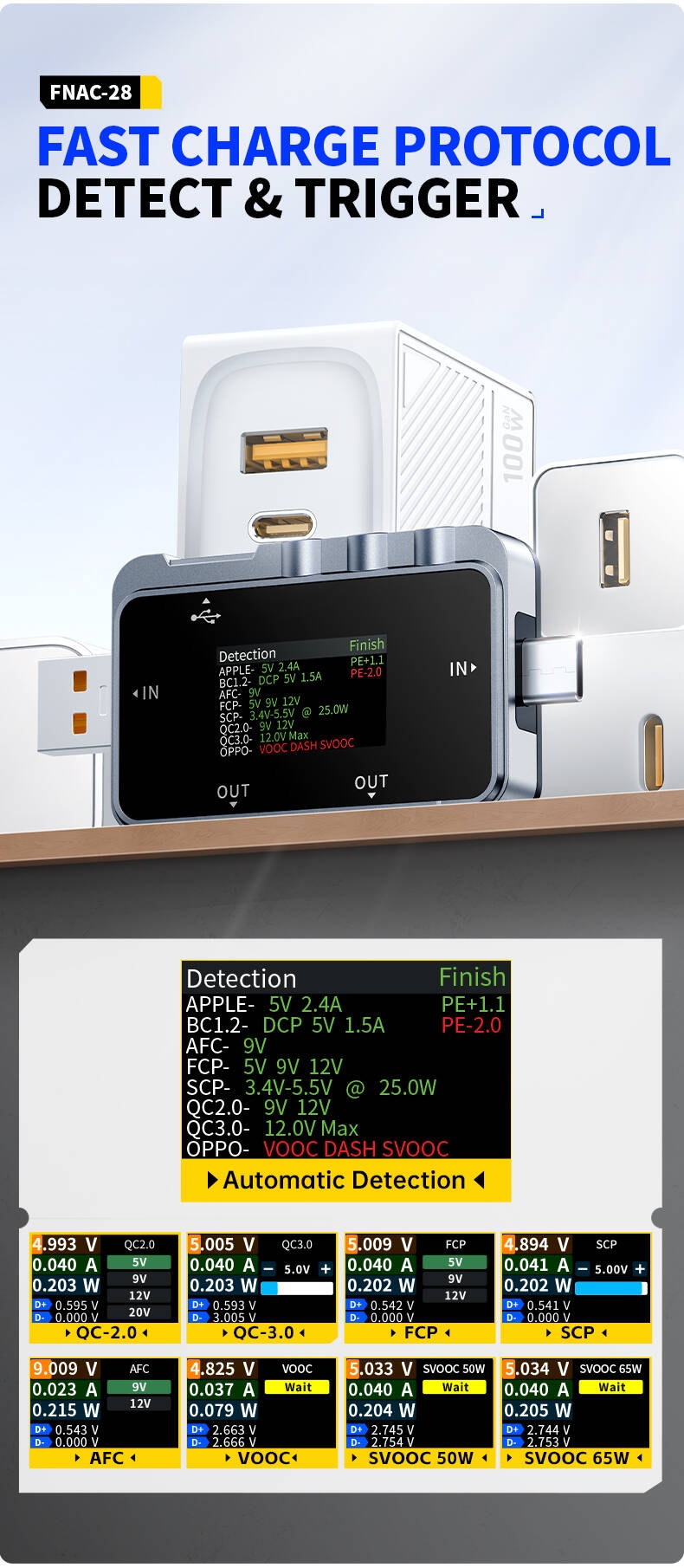

Protocol Detection: ①QC2.0 5V 9V 12V 20V; ②QC3.0 3.4-20V; ③FCP 9V 12V 20V; ④ SCP 5.5-6.0V; ⑤AFC 9V 12V; ⑥VOOC/WARP 20V; ⑦SVOOC 1.0; ⑧SVOOC 2.0

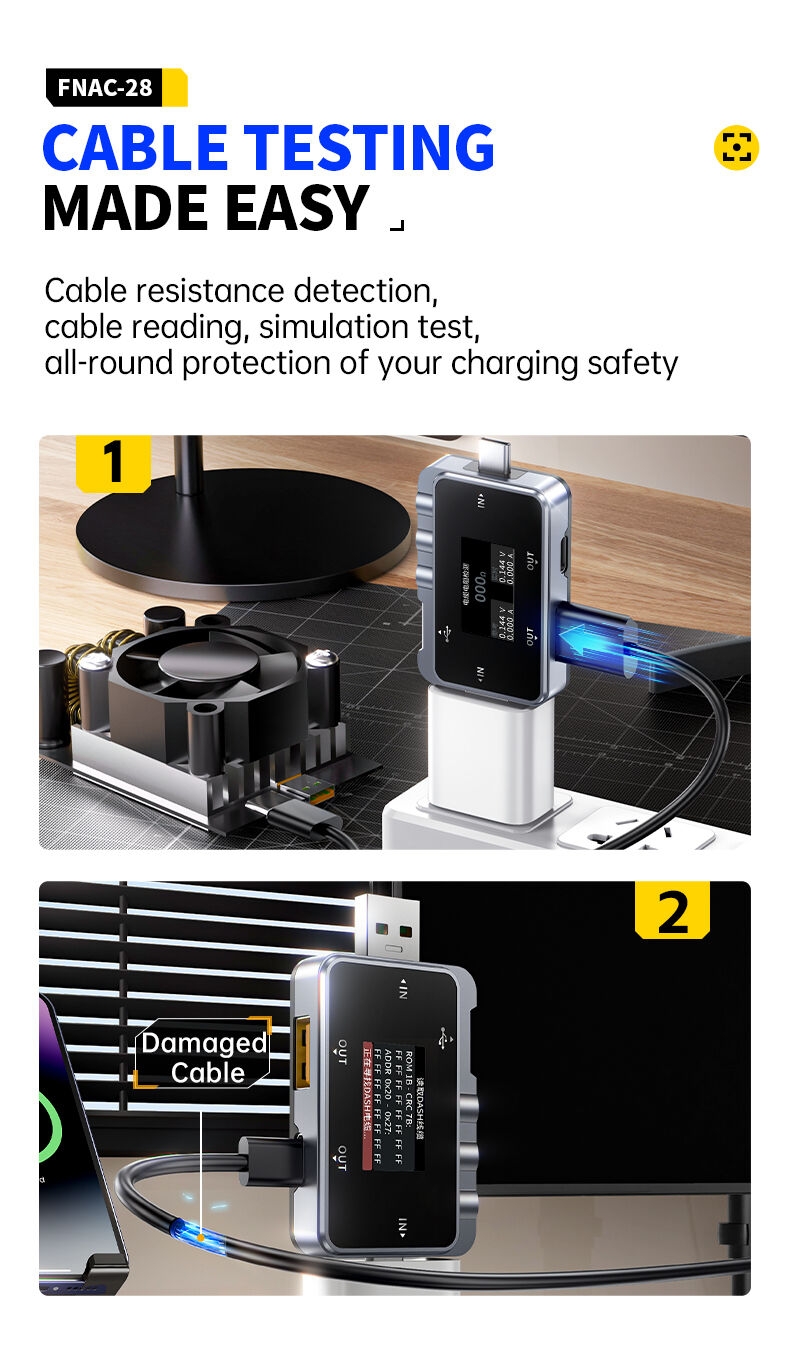

Cable Resistance: Support
Detect DASH Cable: Support
Soft DASH Cable: Support
Soft APPLE 2.4A: Support

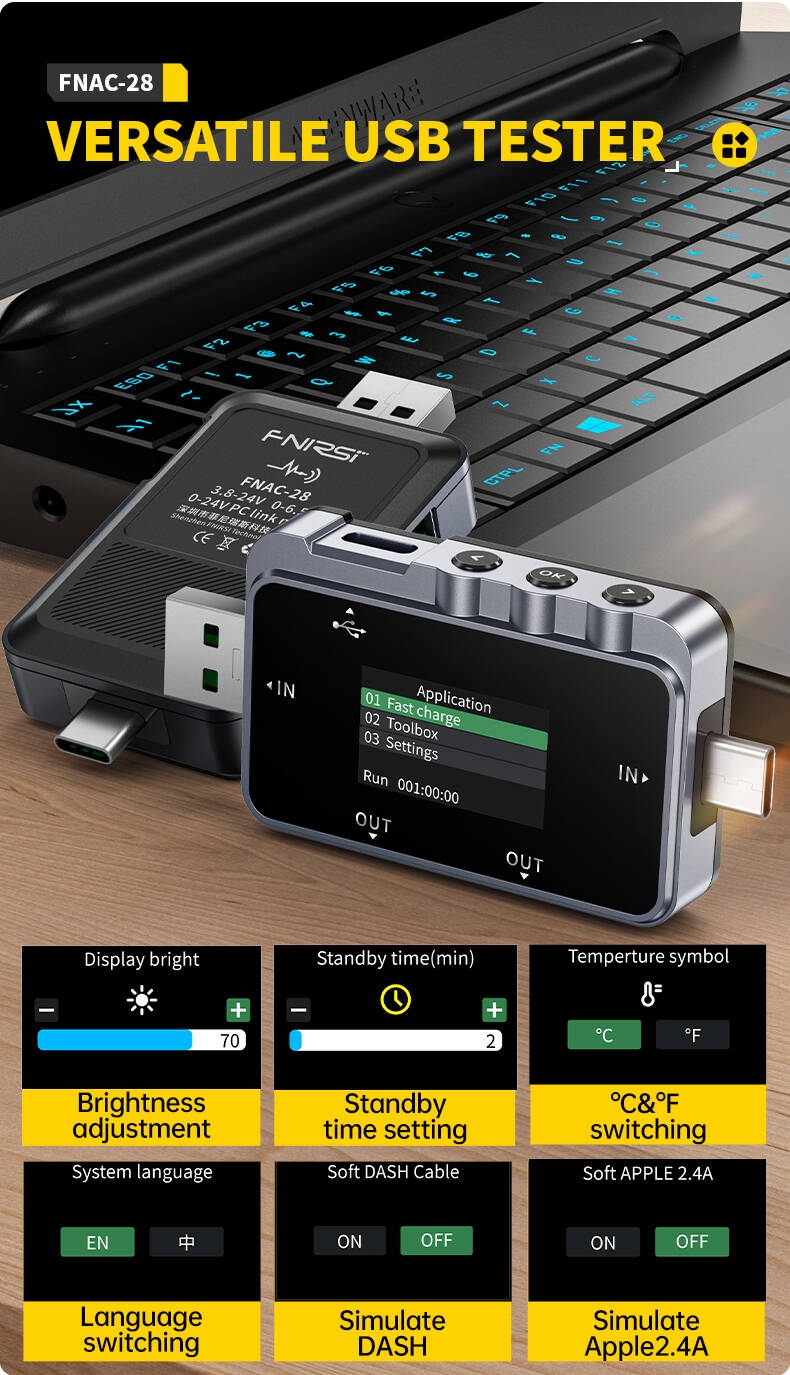

Brightness adjustment: Support
Standby time setting: Support
Temperature symbol: ℃ and ℉ switch
Language: Chinese and English
Firmware upgrade: Support
Extra:
Cheaper & speedy delivery when you buy it directly from Gadgetvil.
Reach Gadgetvil on + 2 3 4 7 0 1 5 0 9 3 1 5 0
Address: No. 20 Babayanju Street, Mafoluku, Oshodi, Lagos
Website: www. gadgetvil. com
Specifications
Key Features
FNIRSI FNAC-28 Tester USB/Type-C Ammeter Voltmeter Fast Charging Protocol Detection Trigger Power Tester
The FNAC-28 USB Tester is a multifunctional USB voltage and current meter, as well as a quick charge trigger device for mobile communication terminals.
It features a full-colour, ultra-wide viewing angle TFT LCD and integrates multiple interfaces, including USB-A and Type-C male and female connectors, ensuring broad compatibility.
Utilising an external 16-bit ADC chip, it offers high measurement accuracy.
This device can measure the power supply or consumption of USB interfaces, phone chargers, USB drives, and other products.
It can also measure phone charging power and the input and output conditions of power banks and perform quick charge protocol testing for chargers.
Model: FNAC-28
Screen: 1. 06-inch colour screen
Monitored Voltage: 4~24V
Monitored Current: ~0~6.5A
Monitored Power: ~0~156W
Protocol Detection: ①QC2.0 5V 9V 12V 20V; ②QC3.0 3.4-20V; ③FCP 9V 12V 20V; ④ SCP 5.5-6.0V; ⑤AFC 9V 12V; ⑥VOOC/WARP 20V; ⑦SVOOC 1.0; ⑧SVOOC 2.0
Cable Resistance: Support
Detect DASH Cable: Support
Soft DASH Cable: Support
Soft APPLE 2.4A: Support
Brightness adjustment: Support
Standby time setting: Support
Temperature symbol: ℃ and ℉ switch
Language: Chinese and English
Firmware upgrade: Support
Extra:
Cheaper & Speedy Delivery when you buy it directly from Gadgetvil.
Reach Gadgetvil on + 2 3 4 7 0 1 5 0 9 3 1 5 0
Address: No. 20 Babayanju Street, Mafoluku, Oshodi, Lagos
Website: www. gadgetvil. com
Specifications
- SKU: GE779IP86RL9ZNAFAMZ
- Weight (kg): 0.15
- Color: N/A
