E-Bike Lithium Battery Capacity Meter Tester Display LED Tester Voltmeter 12-84v

⚠️ Only applicable to DC voltage
⚠️ Not suitable for 220V/230V AC household sockets

This voltage monitor is suitable for 12V, 24V, 36V, 48V, 60V, 84V, electric vehicles (common batteries below 84V), and can also measure lithium batteries, polymer batteries, and nickel hydrogen batteries. Be careful not to measure a 72v battery

It can also be used for other power/voltage measurement purposes.

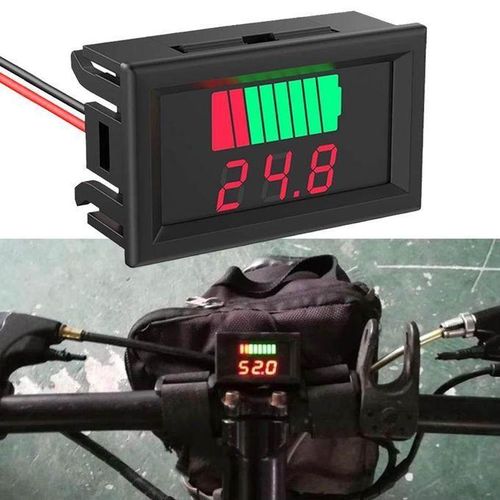

The dual display battery and voltage are clear at a glance.

Display more intuitively.

The top 8 bars display the battery level (2 in red and 6 in green).

Downward voltmeter (displaying battery voltage), the decimal point of the voltmeter automatically shifts with higher accuracy.

It has a wide range of applications, including lithium battery packs, lead-acid batteries, automotive batteries, electric vehicle batteries, and many other types of batteries and electric devices.

The current voltage calculation is the same as the electric vehicle power display table.

The meter head automatically recognizes the voltage and electricity level, and has reverse connection protection function (reverse connection will not burn out).

Instructions for Use:
The header adopts a two-wire system, which can directly test the battery.

Scope:
Voltage tolerance: ± 1-2%;

8 battery levels: 10% 25% 40% 50% 60% 75% 90% 100% full

Working current: 5-15mA

Refresh speed: 300mS once

Display mode: Three digit 0.56 "LED digital tube

Voltage color: red, blue

Lead length: approximately 20cm

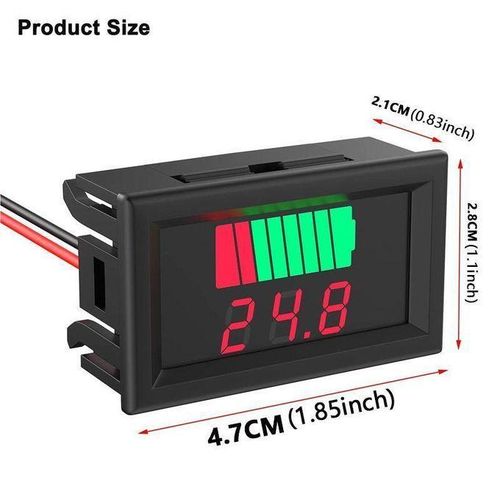

Size: 48 x 29 x 22 millimeters, length X width X thickness;

Installation hole: 46 x 27 millimeters

6V 12V 24V 36V 48V 60V lead-acid battery.

Suitable for 36V, 48V, 60V, 84V lithium batteries

Lithium batteries, polymer batteries, nickel hydrogen batteries, lead-acid batteries.

Cars, motorcycles, bicycles, etc
