Product details

DIN Rail Mount Pluggable Terminal Block Module30A/300V 8x3 Position Pluggable Terminal Block Distribution Module

I am an international seller

Our shop sells the most popular 3C consumer electronics products,such as mobile phone accessories,computer accessories,game peripherals,smart wearables,and follow the most popular fashion trends. If you like our products,please follow us,become our follower and fan.We will provide you with the most popular products to satisfy your fashion shopping experience.Model Number : WL-CN-127-A3-1Voltage : 220 V : Mainland ChinaCertification : CE,UL

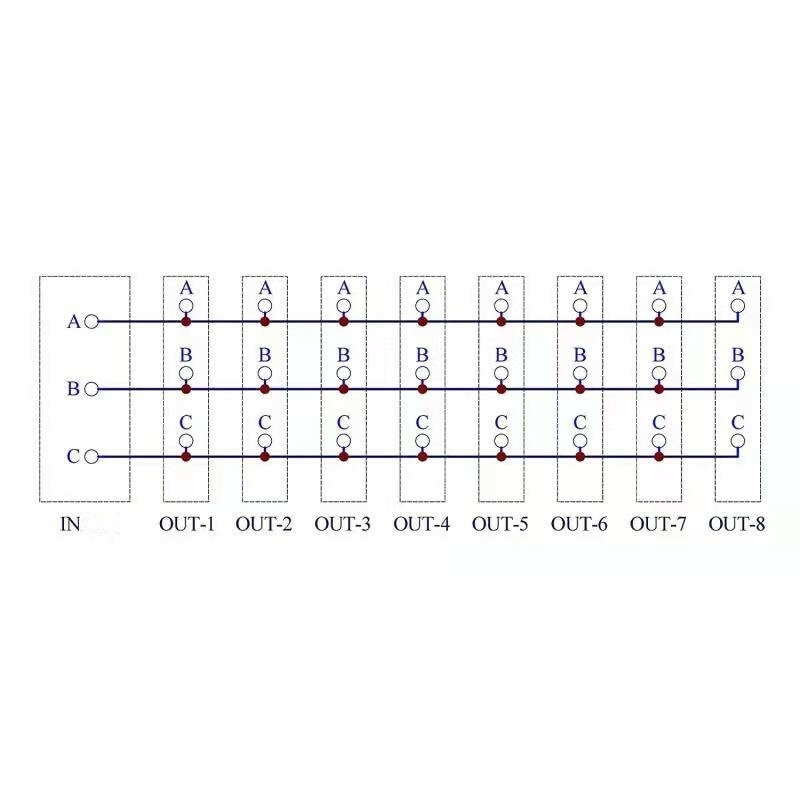

DIN rail mount 30Amp 300V 8x3 position screw terminal block distribution module.Terminal block Input port A / B / C positions, maximum current 30Amp(each position), maximum voltage 300V. Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4mm square. Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.Terminal blocks OUT-1 to OUT-8 A / B / C positions, pluggable screw terminal blocks, maximum current 20Amp(each position), maximum voltage 300V. Pitch 7.62mm/0.3", Wire range 28AWG ~ 12AWG / 2.5mm square. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.High quality fireproof nylon material DIN rail mount carrier , can support width 35mm rail.Shipping:1. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility.2. Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying.Return Policy:If the item is defective, please contact us within 30 days, you can choice money back or item exchange.Contact us:Any questions, please feel free to contact us. due to time zone differences, we may not immediately answer you, but we promise to answer you within 24 hours.

Specifications

Key Features

Model Number : WL-CN-127-A3-1Voltage : 220 V : Mainland ChinaCertification : CE,UL
DIN rail mount 30Amp 300V 8x3 position screw terminal block distribution module.Terminal block Input port A / B / C positions, maximum current 30Amp(each position), maximum voltage 300V. Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4mm square. Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.Terminal blocks OUT-1 to OUT-8 A / B / C positions, pluggable screw terminal blocks, maximum current 20Amp(each position), maximum voltage 300V. Pitch 7.62mm/0.3", Wire range 28AWG ~ 12AWG / 2.5mm square. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.High quality fireproof nylon material DIN rail mount carrier , can support width 35mm rail.Shipping:1. Import duties, taxes and charges are not included in the item price or shipping charges. These charges are the buyer's responsibility.2. Please check with your country’s customs office to determine what these additional costs will be prior to bidding/buying.Return Policy:If the item is defective, please contact us within 30 days, you can choice money back or item exchange.Contact us:Any questions, please feel free to contact us. due to time zone differences, we may not immediately answer you, but we promise to answer you within 24 hours.
