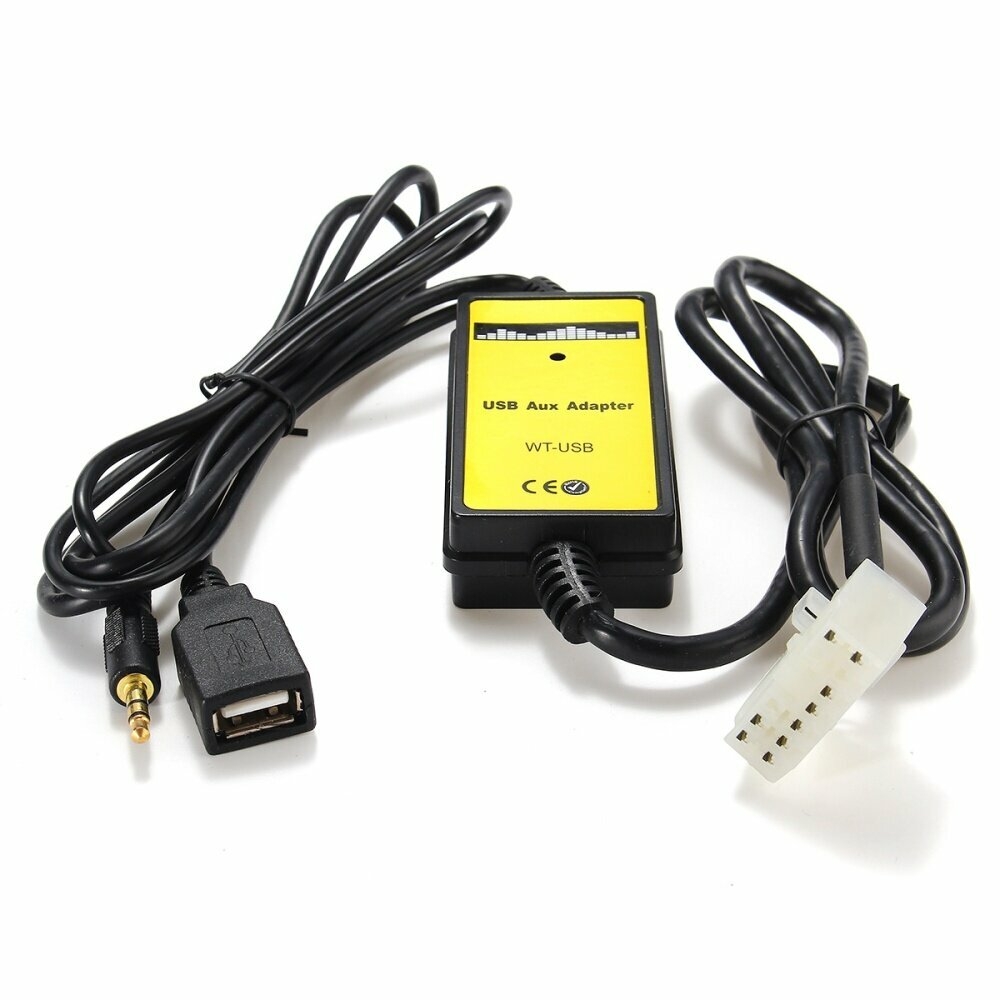

Car USB Mp3 Aux Interface Adapter For Toyota Lexus 5+7Pin

This is a Audio car kit. It is a replacement of CD changer. It can be easily installed and used. The installation and usage are the same as CD changer's installation and usage. Simply plug in USB disk/SD card or iPod iPhone or android, you can play audio through car audio system and enjoy music in your car.

Feature
-Direct Connection via CD changer Port with CD quality sound
-Control music files from your car radio panel or steering wheel
-Support USB flash, SD Card or iPod iPhone or android and 3.5mm jack input
-Building in high quality MP3/WMA decoder
-Building in Amplifier chips
-No signal interfere, No battery required
-Smart design and easy to install and use

Specification:
Voltage Input: 12V DC
Signal-to-Noise: 95DB
Max.Current: 600MA
Max.Voltage output: 12V
D/A Device: 24BIT 192KHZ
Total Hamonic Distortion: 0.01%
Frequency Response: 20HZ-20KHZ
Working Temperature: -10°C-80°C

Only fit for Toyota 5+7,please check the connect carefully before order!!!

Compatible Model
1.Toyota
4-Runner (1998-2002),
Altis (1998-2004),
Avalon (1998-2004),
Avensis (1998-2002),
Camry (1998-2004) ,
Carina E (1992-1997),
Celica (1998-2002) ,
Coaster (after 1993) ,
Corolla (1998-2002) ,
Corolla (Verso after 2004) ,
Cressida (1989-1992),
Echo/ Platz/ Vios (1999-2005),
Fortuner, Hi-Ace (after 1989),
Hi-Lux (after 1989),
Highlander (1998-2003),
Kluger (after 2001),
Land Cruiser (1998-2002 without XM or 6-disc DVD-Player),
Lite Ace (after 1993) ,
Matrix (1998-2004) ,
MR 2 (1998-2002) ,
Optimo (after 1993) ,
Paseo (1992-1999) ,
Pick Up (1986-1995) ,
Picnic (after 1990) ,
Previa (after 1990) ,
RAV4 (1994-2003) ,
Sequoia (1998-2002) ,
Solara (1998-2003) ,
Sienna (1998-2003) ,
SportsVan (1996-2004) ,
Starlet/ Vitz (after 1993) ,
Supra (1986-1998) ,
Tacoma (1998-2004) ,
Tercel (1987-1998) ,
Tundra (1998-2002) ,
Van (1987-1990) ,
Yaris (1999-2005) ,
Yaris Verso (1999-2005) ,

2.Lexus
IS 200/250/300/350 1999-2005,
GS 300/400/430/450H 2001-2003,
GX 470 2003,
LS 430 2001-2006,
LX 470, RX300

Please Note: Not work with
Aygo, 58805 (2003 RAV4 ), 56010 (Ipsum), 56018, 58813, T18303, B9010, B9004 (2007 RAV4),
RAV4 with factory navigation, TNS Travel 700, W58816, T18303,
W13807/W13081 / W13086 (Auris), W53904(Panasonic,Avensis 2007),W58824, W58832,36458, AD1812(Delphi on 2010-2011 Tundra/ Sequoia),AD6900(Delphi on 2000-2004 Avalon), other AD-xxx radios

Installation Instruction
1. Turn off car engine and remove key from ignition, if your radio use a security code,make sure that you have the code before unplugging the radio.
2. Unmount the radio from the dash and find CD changer port at the back of radio.
3. Plug the IPOD AUX Adapter connector to CD changer port.(For Audi/V.W/Skoda/Seat radio,connect the GND cable to the shield of the radio)
4. For IPOD/Iphone user,connector IPOD/Iphone via IPOD AUX Adapter 30P connector.once the unit is installed just power on the car radio and ipod,you can Press CD button then you can enjoy the IPOD Music ,keep Ipod changed and ready to go.
5. For Auxiliary device such as PSP,MD.MP3.mobile etc,connect it with 3.3 Jack cable. It will start play music.
