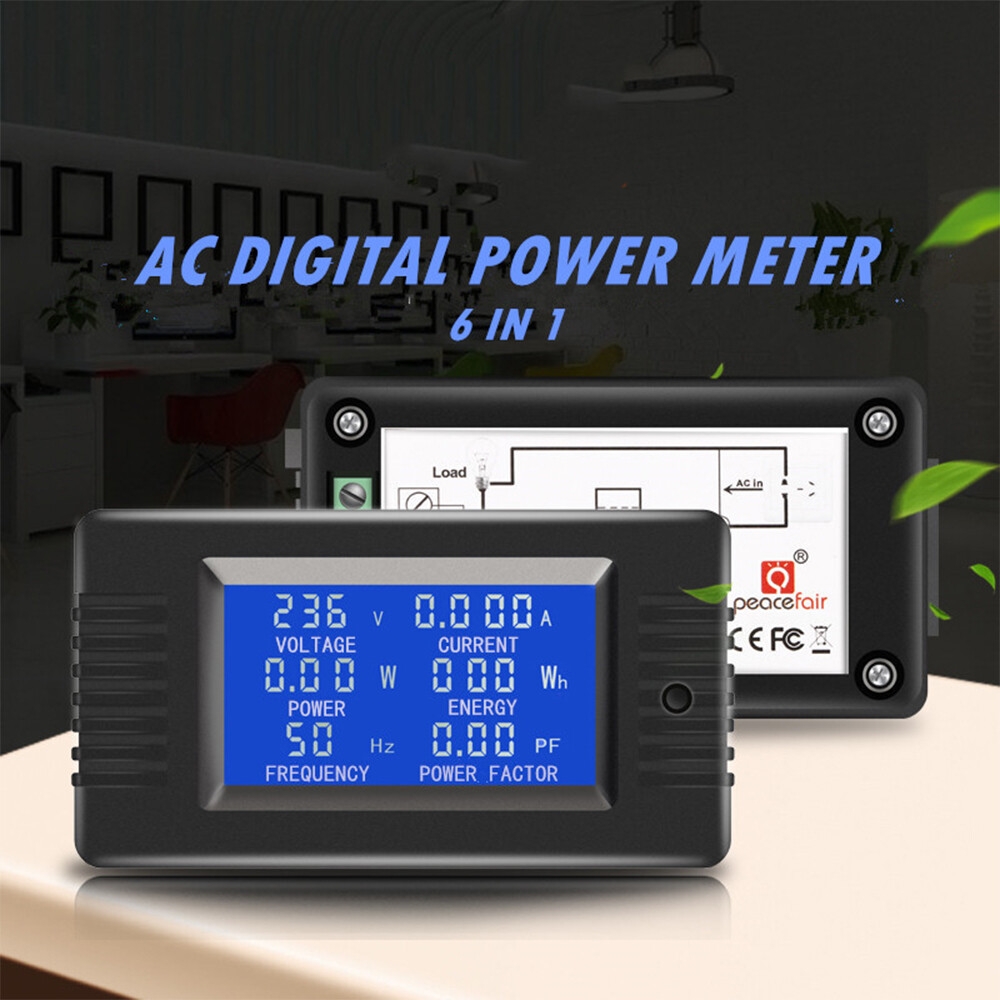

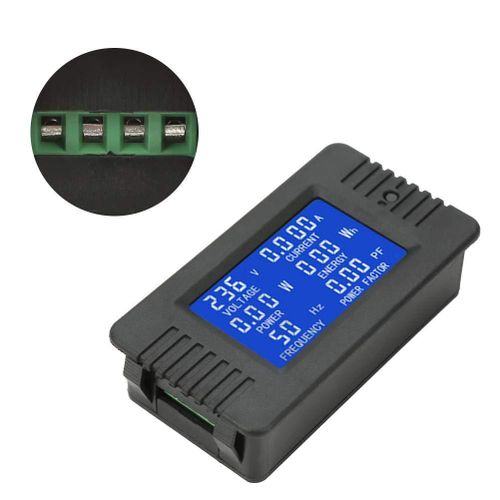

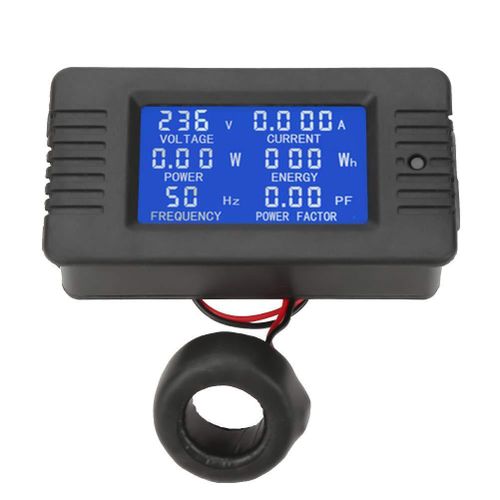

AC Multifunction Digital Meter with 6 LED Accurate Readings with Closed CT

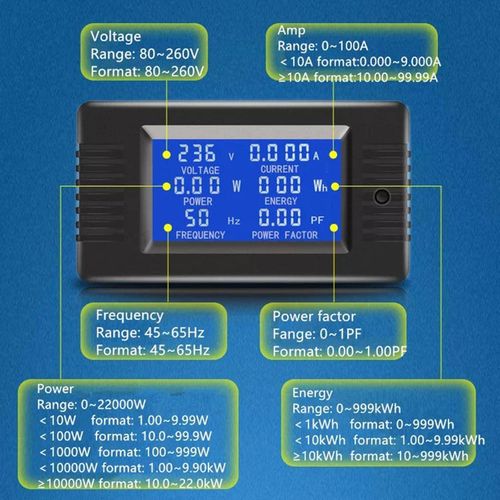

Ideal Measuring Tools: Ideal electrical parameter measurement has several functions (voltage, current, active power, energy, frequency, power factor)
Prevent Alerting: When there is a system overload. This tester will alarm like an overpower alarm threshold, backlight and power flashing to alarm.
Practical Function: The power alarm threshold can be preset.
Reset Button: The energy can be reset using the key. Store data when the power is off.
Guarantee Service: We provide a 100% new product and perfect service.

Working voltage: ~80 ~ 260VAC

Test voltage: ~80 ~ 260VAC

Current: 100A

Rated power: 100A/22000W

Operating frequency: 45-65 Hz

Measurement accuracy: 1.0 grade

Size: 9*5*2.5 cm/3.5*2*1 in

Wire length: 19 cm/7.5 in

Weight: Approx. 110g/3.9oz

Key function:

1. Backlight control

Short press the key to turn on or off the backlight; the backlight has a memory function; it can store the on or off state when power is off.

2. Reset energy

Step 1: Long press the key for 5 seconds until the energy value flashes, then release the key.

Step 2: Short press the key again, and then the energy value is cleared, and exit the reset flashing state.

Step 3: If there is no operation on the key within 5 seconds, it means the energy value is not cleared and will exit the reset state.

3. Set power alarm threshold

Step 1: Long press the key until the LCD screen displays "SET CLr", then release the key to enter the setting state

Step 2: The power window displays the current power alarm value, and the last digit begins to flash. Then you can short press to plus 1. When there is no operation over 3 seconds, it will switch the digit position automatically; the setting method is the same as the above.

Step 3: After finishing the setting, long pressing the key over 5 seconds will store it automatically and exit; the range of the active power threshold is 0.0~2.5 kW.

Package list:

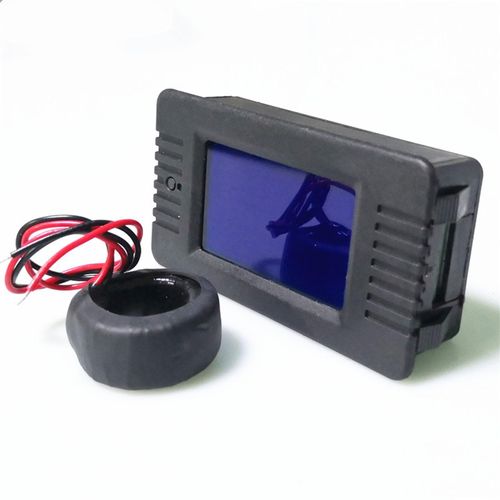

1 x AC Multifunction Digital Meter

1 x Closed Type CT
