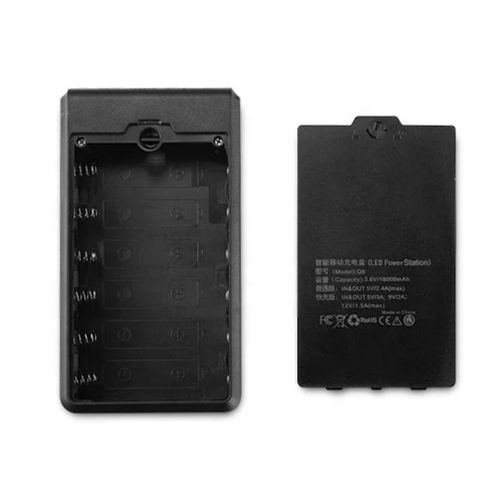

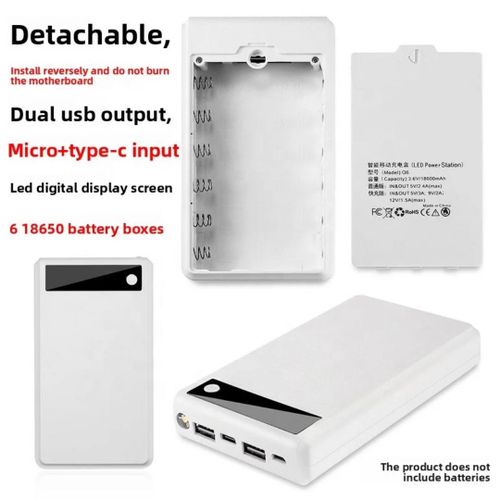

6-Cell Plastic Shockproof DIY Battery Box Power Bank Detachable and replaceable power bank shell.

Product Description

Output Power:22.5W (double USB output + TYPE-C Mouth/Android Port Dual-Input Solution)


OUT1 output:5V/3.1A,9V/2.5A,12V/1.87A (Support 5V Charge and Discharge at the Same Time);

OUT2 output:5V/3.1A,9V/2.5A,10V/2.25A,12V/1.87A

                    (Multiple Ports Output Simultaneously Only5V);

IN Input (micro): 5V/3A, 9V/2A, 12V/1.5A;

Type-C output: 5V/3.7A, 9V/2.22A, 12V/1.67A

                    (Support PD Agreement Is Required for Output);

Type - C Input: 5V/3A,9V/2A,12V/1.5A;

Other functions: Long Press Start LED Lamp,The Motherboard Does Not Burn When Installed Backwards.

Color: Black,

Effective Voltage: 3.3V-4.15V (The Spring Has a Pressure Drop)

Capacity Requirements: 10000 Ma,.

Attention: If the Mobile Phone's Private Protocol Does Not Support It(USBNo Fast Charging),Can be usedPDCharging(TYPE-Coutput),PDPublic Protocol Output Is More Stable.

Fast Charging Specifications(Support agreement):

(Charging Cable with Data Transmission,)

                    Support 5V,9V,12V Voltage Gear Input/output;

               Compatible BC1.2, Apple, Fast Charging for Samsung Phones;

               Integrated Huawei SCP22.5W Super Fast Charging Output Protocol;

             Integrated OPPO VOOC22.5W Flash Charging Output Protocol;

               Integrated QC2.0/QC 3.0 Output Fast Charging Protocol;

               Integrated FCP,AFC Input/Output Fast Charging Protocol;

               Integrated USB C DRP agreement, Support for Input/Fast Charging Output;

               Integrated USB Power Delivery (PD2.0/3.0) agreement

               SupportPD2.0/3.0 Input/Output Protocol

               Support USB C PD3.0 PPS Output Protocol

 Charging Specifications:

Support 18W Charging,Automatic Adjustment of Current at Battery Terminals,Charging current can reach5A.

(For the First Charge, It Is Recommended to Charge It to100Later, Extend the Charge for a Few More Hours, Make the Battery Perfectly Balanced)

Discharge Specifications:

Output current capability:5V/3.1A;9V/2.22A;12V/1.67A

Support Line Replenishment, Synchronous Switch Discharge5V/2AEfficiency can reach95%Above

Multiple Protection, High reliability:

Built-In Input Overvoltage, Under Voltage Protection;

Integrated Output Overcurrent, Pressure,Short Circuit Protection;

Comes with a Battery That Overcharges, Over-Discharge,Overcurrent Protection

Built-InICOver temperature Protection;

Battery Requirements: Flat Head Without Protective Plate18650Battery(65MMLong),Internal Resistance60Milliohm,Discharge1CAbove;Due to the High Discharge Rate,,Charging Is Intermittent,Under Voltage Protection,Cannot Discharge Fully,.
