400M HDMI Wireless Screen Casting Video Transmitter and Receiver for Wireless Video Transmission (Up To: 1312ft)

The BOVBOX WL-082 400M HDMI Wireless Screen Casting Video Transmitter and Receiver is a high-performance wireless video transmission system designed for professional and enthusiast use. It offers a reliable and low-latency solution for transmitting HDMI-compatible video signals over significant distances. This system supports one transmitter (TX) to multiple receivers (RX), making it ideal for extensive monitoring setups in various environments, from film sets to live events and home entertainment.

Key features include:

• Up to 400 meters (1312 feet) line-of-sight transmission range.
• Ultra-low latency of 0.05 seconds (50ms).
• HDMI-compatible input and output.
• Plug & Play functionality, requiring no additional apps or Bluetooth connections.
• Supports 5GHz and 2.4GHz dual-band technology for stable transmission.
• Ability to connect one transmitter to up to five receivers simultaneously.
• IR remote control extension function for controlling source devices remotely.
• Multiple power supply options, including USB-C (5V/2A) and NP-F series batteries (not included).
• Supports HDMI-compatible CP 1.4 for compatibility with various streaming applications.
• Flexible display modes: Duplicate, Second Screen Only, and Extend.
• Local loop-out on the transmitter for an additional monitor.

Package Contents
Please check the package carefully to ensure all items are present. The standard package typically includes:

• 1 x BOVBOX WL-082 Transmitter Unit (TX)
• 1 x BOVBOX WL-082 Receiver Unit (RX) (Additional RX units may be purchased separately)
• 4 x Antennas (2 for TX, 2 for RX)
• 2 x USB-C Power Cables
• 1 x IR Extension Cable

Note: NP-F batteries and 5V/2A power adapters are not included and must be purchased separately.

Setup Guide

1. Initial Setup (Transmitter and Receiver)
Attach Antennas: Screw the two provided antennas securely onto the antenna ports of both the Transmitter (TX) and Receiver (RX) units.
Connect Transmitter (TX):
Connect one end of an HDMI cable to the HDMI output port of your source device (e.g., camera, laptop, streaming box, game console).
Connect the other end of the HDMI cable to the HDMI input port on the BOVBOX TX unit.

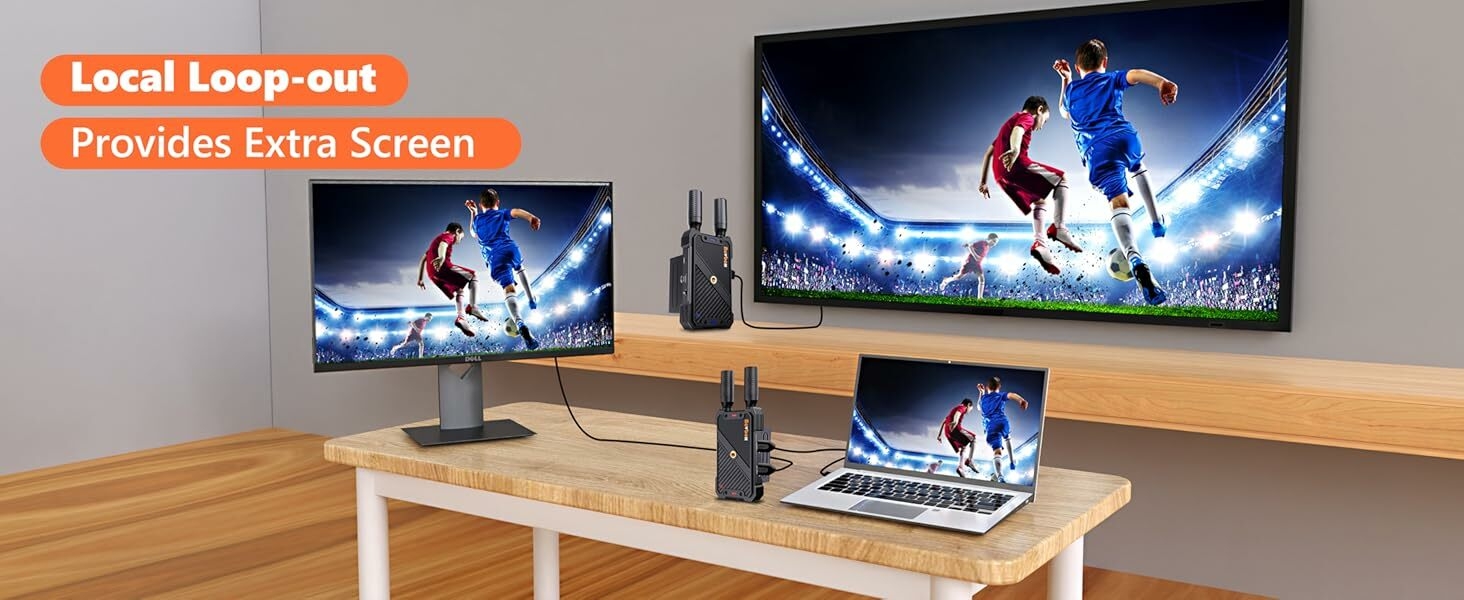

For local monitoring, connect an HDMI cable from the TX unit's HDMI LOOP OUT port to a local monitor.
Power the Transmitter (TX):
Connect the USB-C power cable to the 5V/2A port on the TX unit.
Connect the other end of the USB-C cable to a 5V/2A power adapter (not included) or a compatible power bank (not included). Alternatively, attach a charged NP-F series battery (not included) to the battery plate on the TX unit.
Connect Receiver (RX):
Connect one end of an HDMI cable to the HDMI output port on the BOVBOX RX unit.
Connect the other end of the HDMI cable to the HDMI input port of your display device (e.g., monitor, TV, projector).
Power the Receiver (RX):
Connect the USB-C power cable to the 5V/2A port on the RX unit.
Connect the other end of the USB-C cable to a 5V/2A power adapter (not included) or a compatible power bank (not included). Alternatively, attach a charged NP-F series battery (not included) to the battery plate on the RX unit.
Verify Connection: Once both units are powered on, they should automatically establish a connection. The status indicators on the units will confirm the connection.

2. IR Extension Setup
To use the IR remote control extension feature:

Connect the IR extension cable to the 'IR Interface' port on the TX unit. Position the IR emitter head near the IR receiver window of your source device (e.g., TV box, DVD player).
Connect the IR extension cable to the 'IR Interface' port on the RX unit. Position the IR receiver head in a location where it can receive signals from your remote control.
When you point your remote control at the RX unit's IR receiver, the signal will be transmitted wirelessly to the TX unit and then relayed to your source device, allowing remote control from the receiver location.

3 Mounting Options
The BOVBOX WL-082 units feature camera-specific screw holes for easy mounting on cameras, tripods, or other camera rigs.
