4 in 1 Cordless Gas Soldering Iron

Description:

This is a cordless, pen-style 4-in-1 gas soldering iron kit designed for welding, electronic repairs, and automotive maintenance. It is highly portable and functions without a power cord, using standard buttane.

Key Specifications

• Functions: Soldering, cutting, burning (open flame), and hot air blowing.

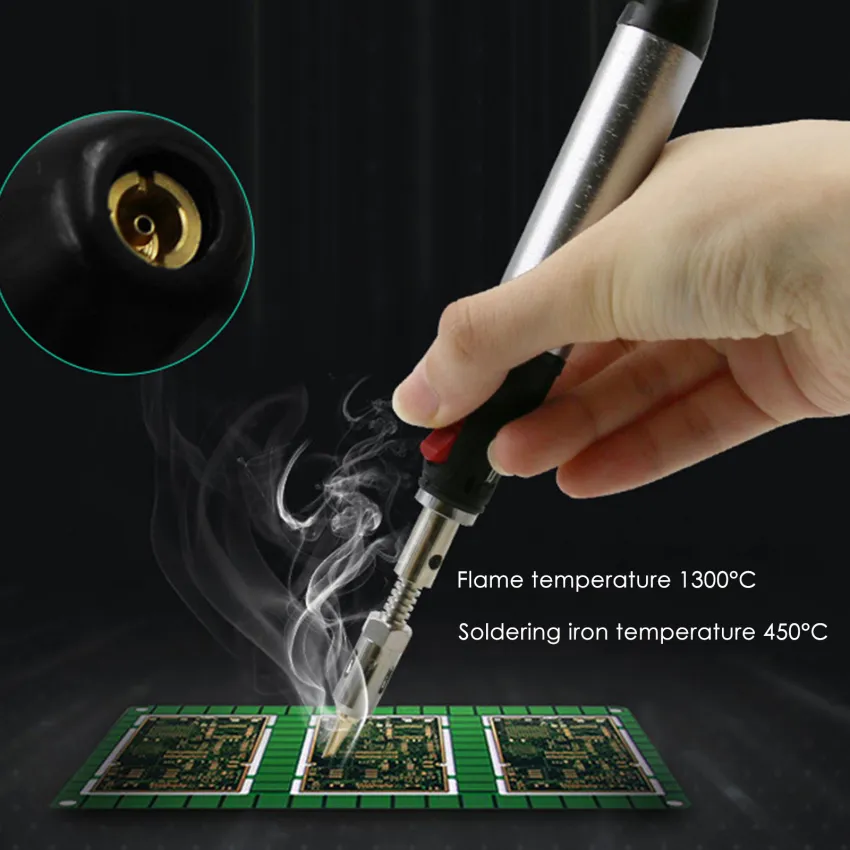

• Temperature Range: 100°C to 1300°C (Open flame); 250°C to 450°C (Soldering tip).
• Gas Capacity: 12ml.
• Material: Metal and plastic.

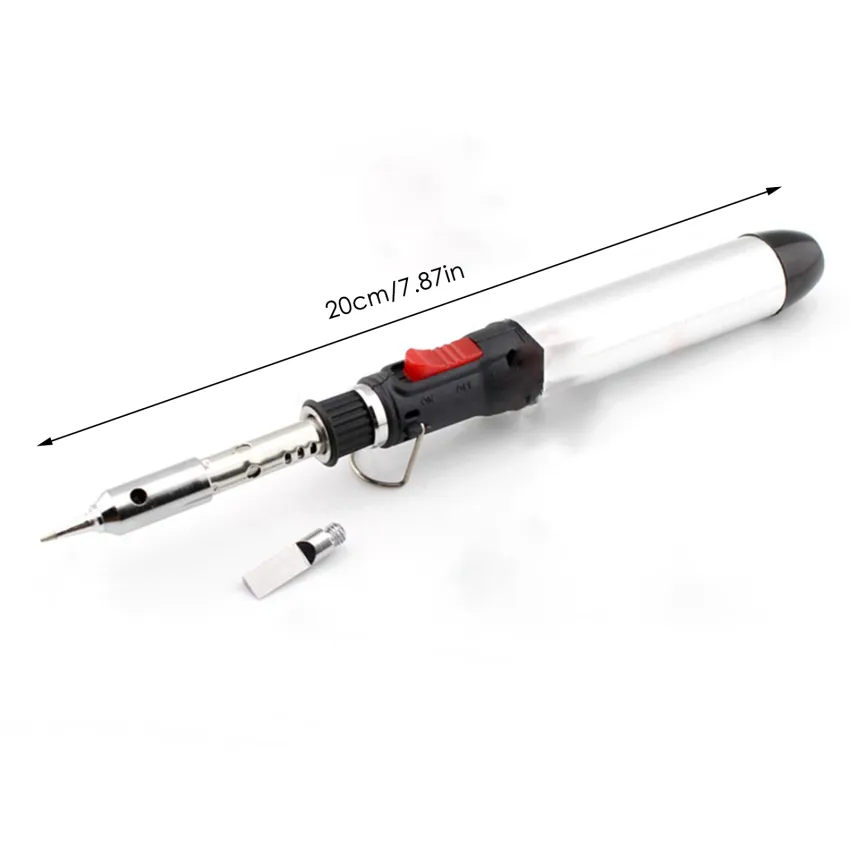

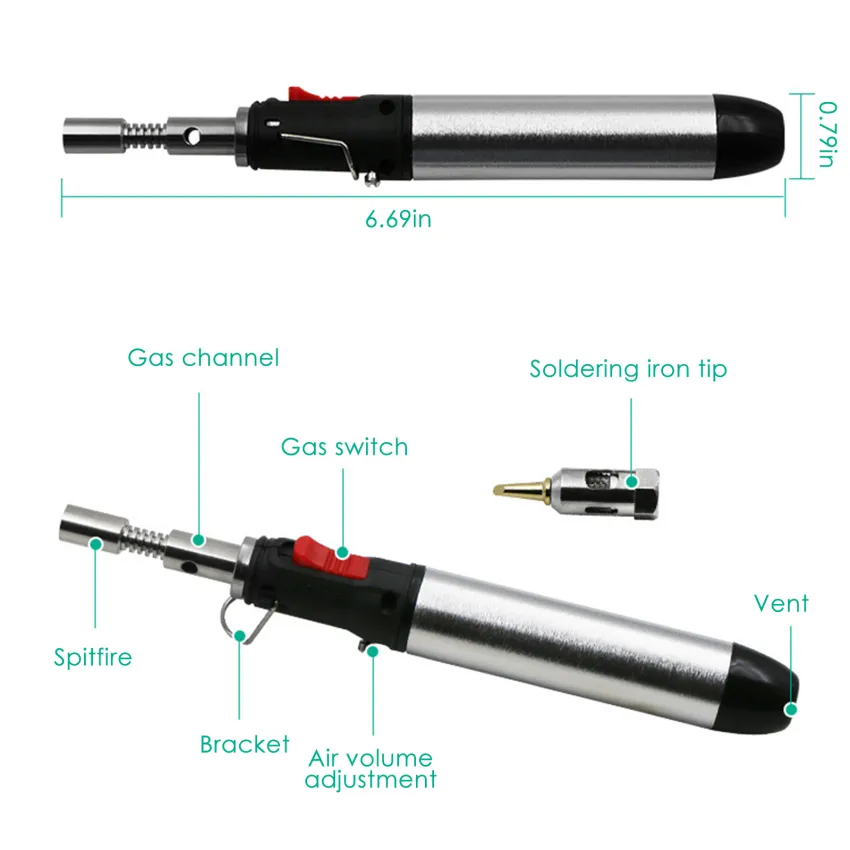

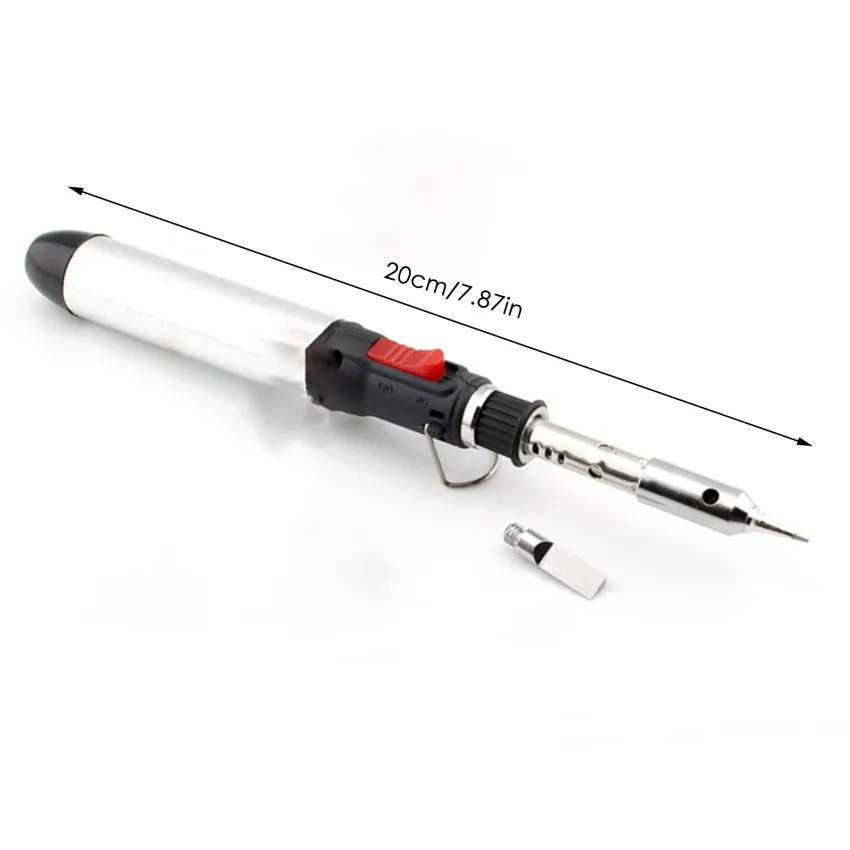

• Dimensions: Approximately 170mm x 20mm.

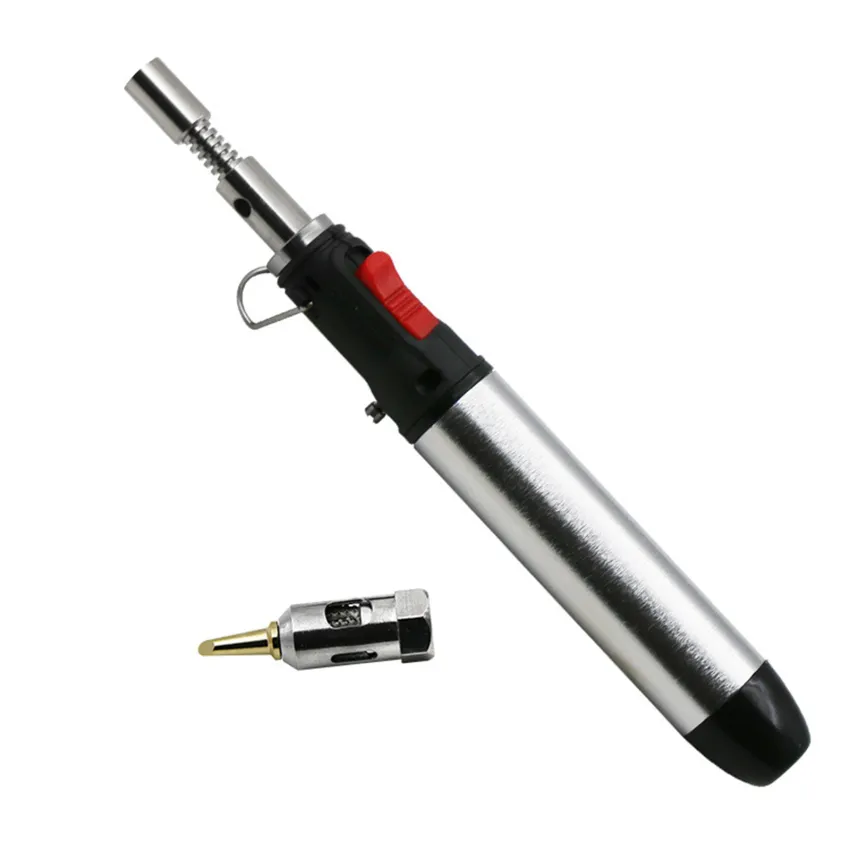

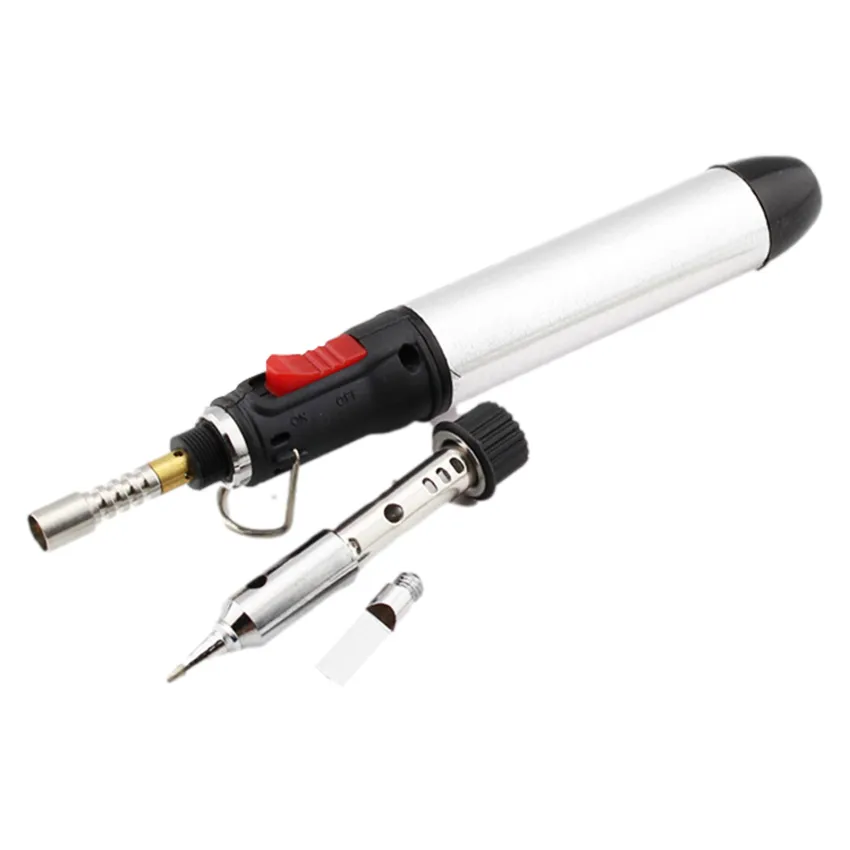

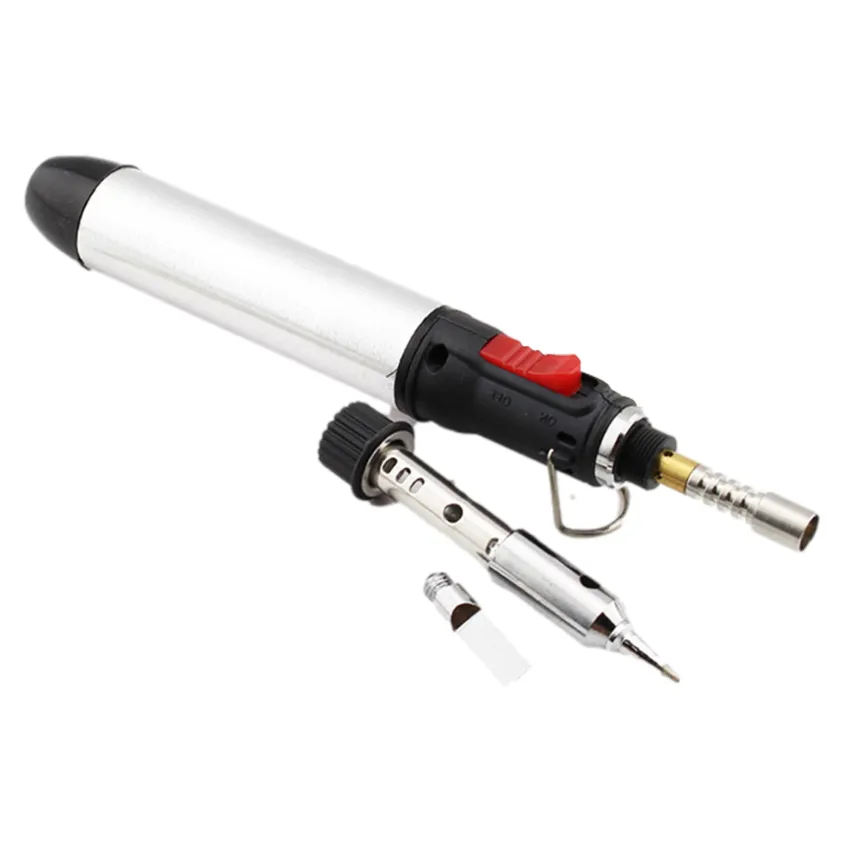

Components Included

Most kits feature four interchangeable heads:

• Soldering head
• Cutting head

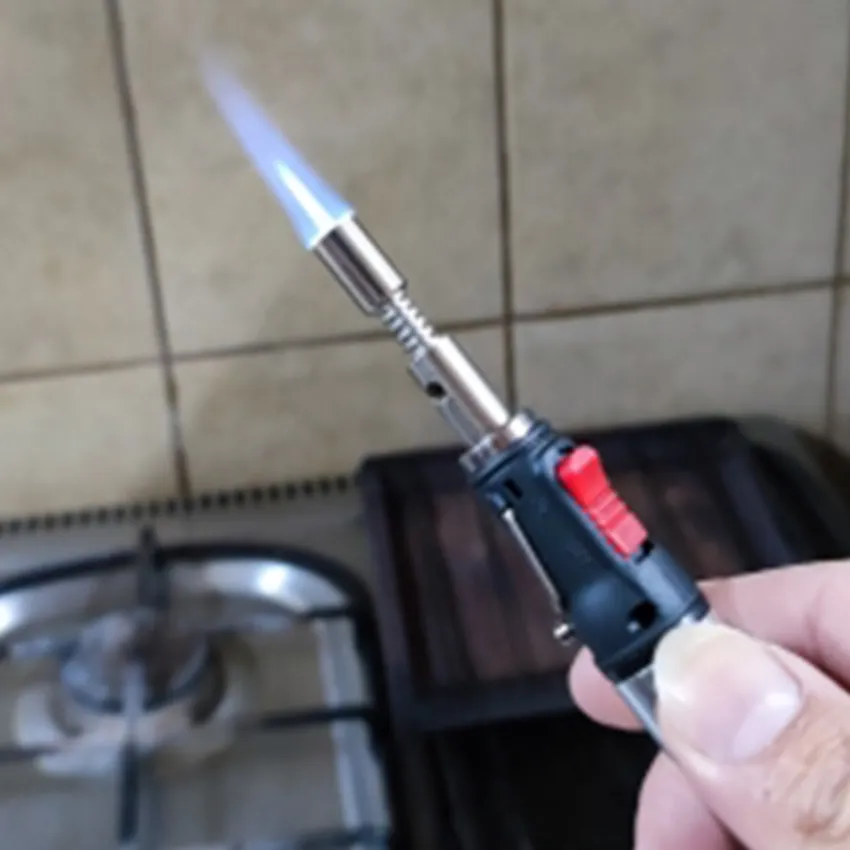

• Open flame head
• Hot air head

Operating Instructions

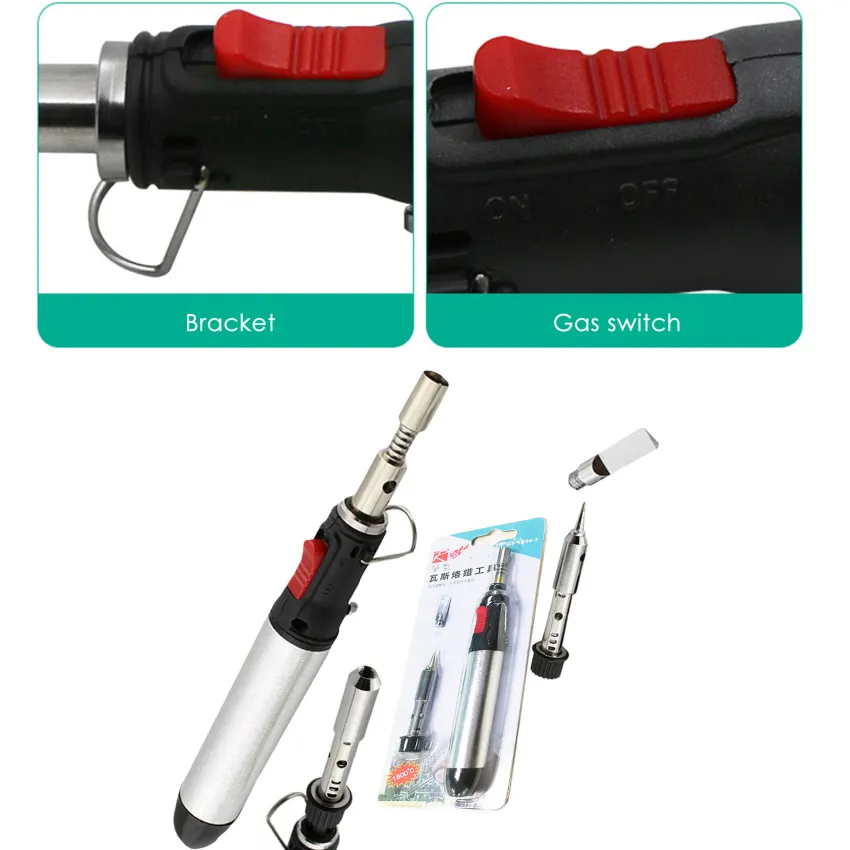

• Ignition: Push the switch to "ON" and use a lighter or igniter near the connector to ignite the gas.

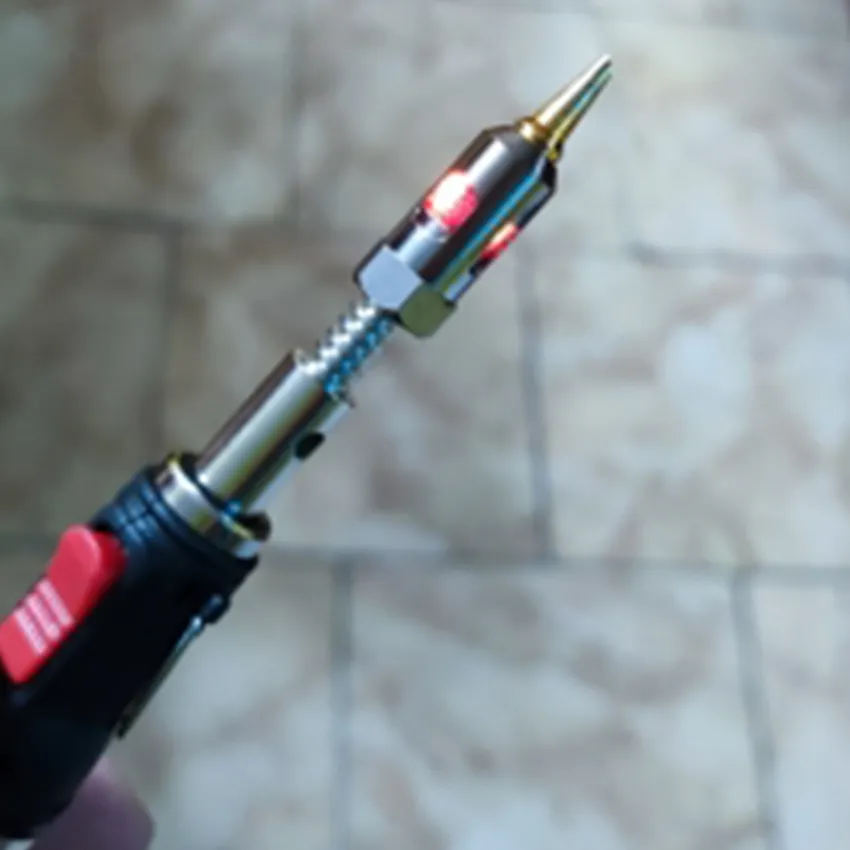

• Heating: Allow it to burn for approximately 3 minutes until the internal ceramic/metal turns red and the flame extinguishes; the tip will then continue to heat.
• Adjustment: Use the "+" and "-" dial to increase or decrease the flame size (standard flame length is 1.2–2.2 cm).
• Refilling: Ensure the switch is "OFF." Invert the tool and press the buttane can-ister nozzle into the air hole at the tail for about 10 seconds.
