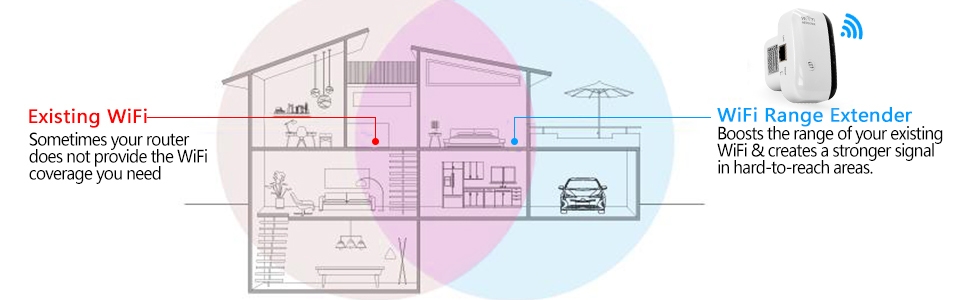

300Mbps Wireless WiFi Repeater/Extender/AP/WI-FI Signal Range Amplifier/Booster, Mini 2.4G Portable WiFi Signal Range Extender With WPS For Router Home

Plug it into socket

1. Choose suitable placement and plug it into socket.

2. When it is on, reset it.

Connect repeater's wifi via cell phone

1. Open your phone's wifi set-up window.

2. Connect the repeater's wifi.

Set up the repeater via browser

1. Open your browser and key in 192.168.0.1

2. Go into wizard and set up it step by step:

a. the default account and password both are admin

b. Choose the existing wifi what you want to relay

c. set up its wifi password which should be same with the existing wifi.

Connect the repeater's wifi again

Connect the repeater's wifi after configuration is done. And then you could enjoy surfing even in dead zone.

The repeater is not a router

Please notice: the repeater does not include router function. Please do not use it as a router. It can only extend existing WiFi's signal range.

Make sure at least 60% signal received by the repeater

Please make sure that the placement of repeater should be covered by at least 60% signal strength of existing WiFi.

Avoid inteference

Wave oven, washing machine and other electric appliances may affect the repeater's performance. Especially, main wall which include steels may decrease its siganl dramatically. Please avoid these between the repeater and the place which you want relay to.

IP conflict

Sometimes, perhaps you cannot go into the wizard, which is caused by IP conflict. Please log into your router's wizard and change its IP as 192.168.1.1 or 192.168.2.1.
