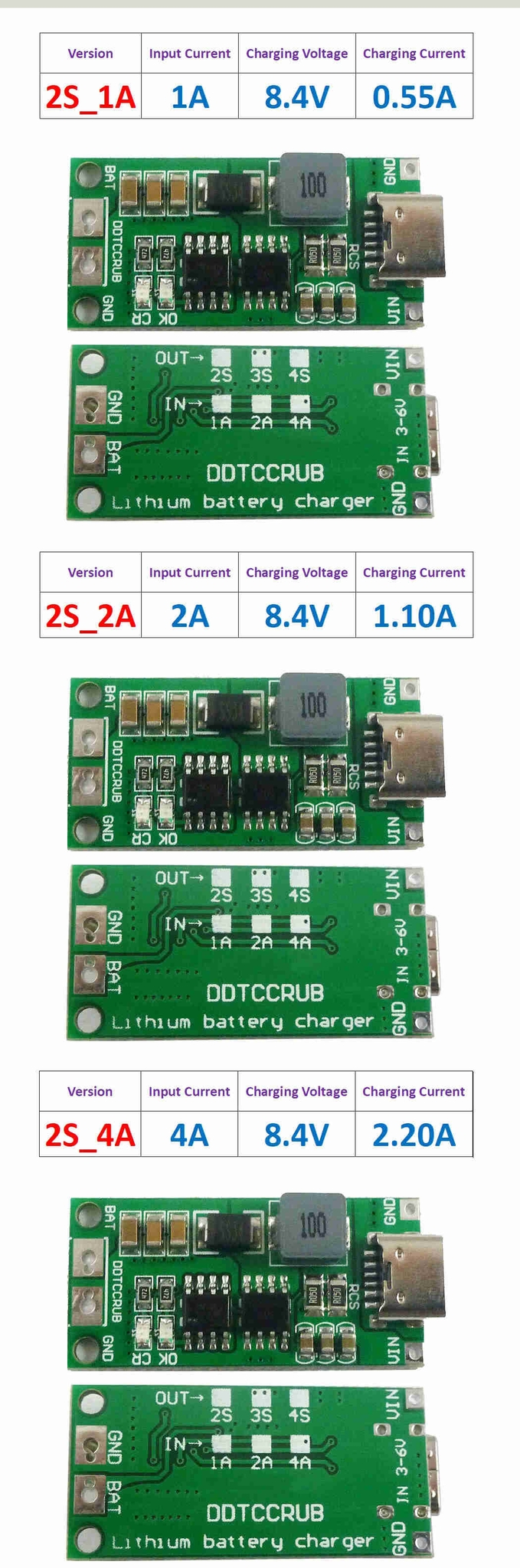

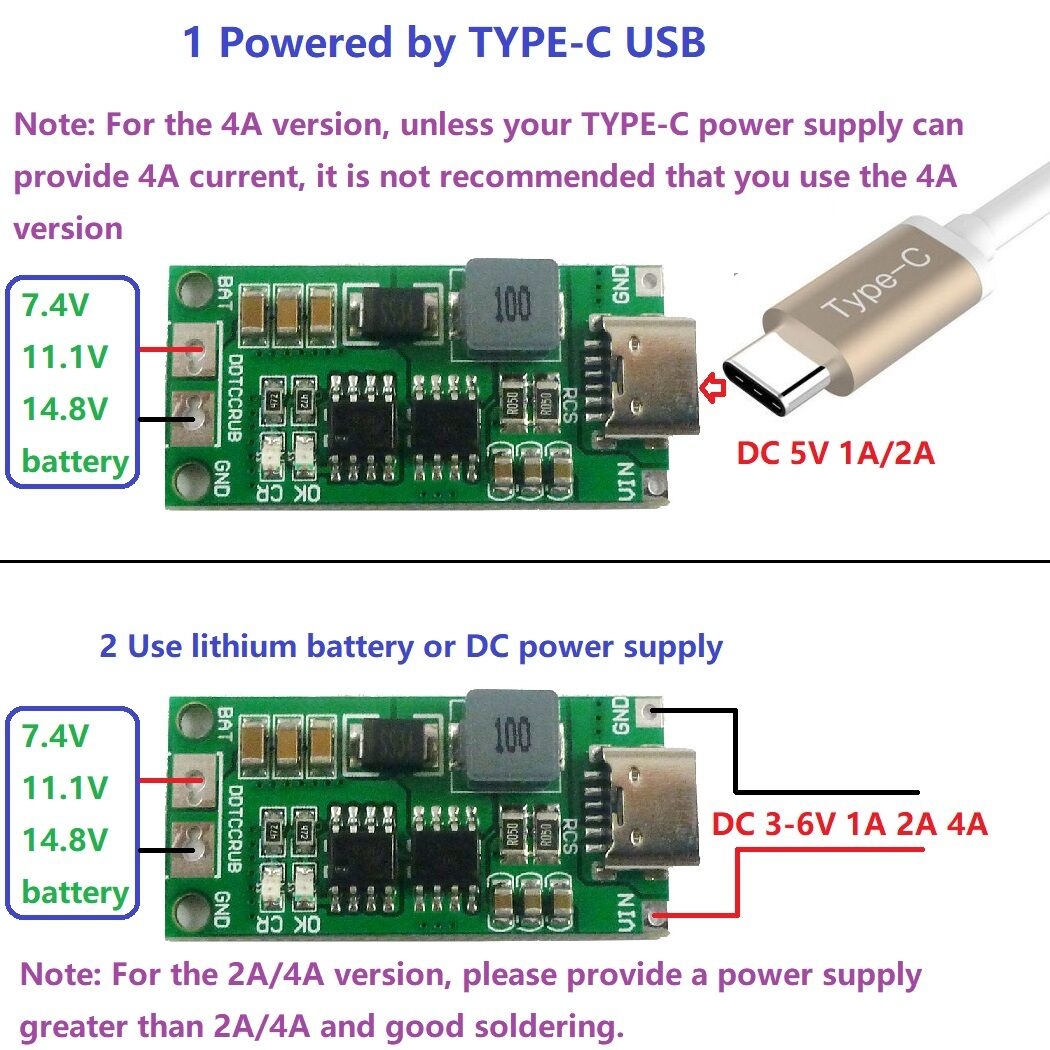

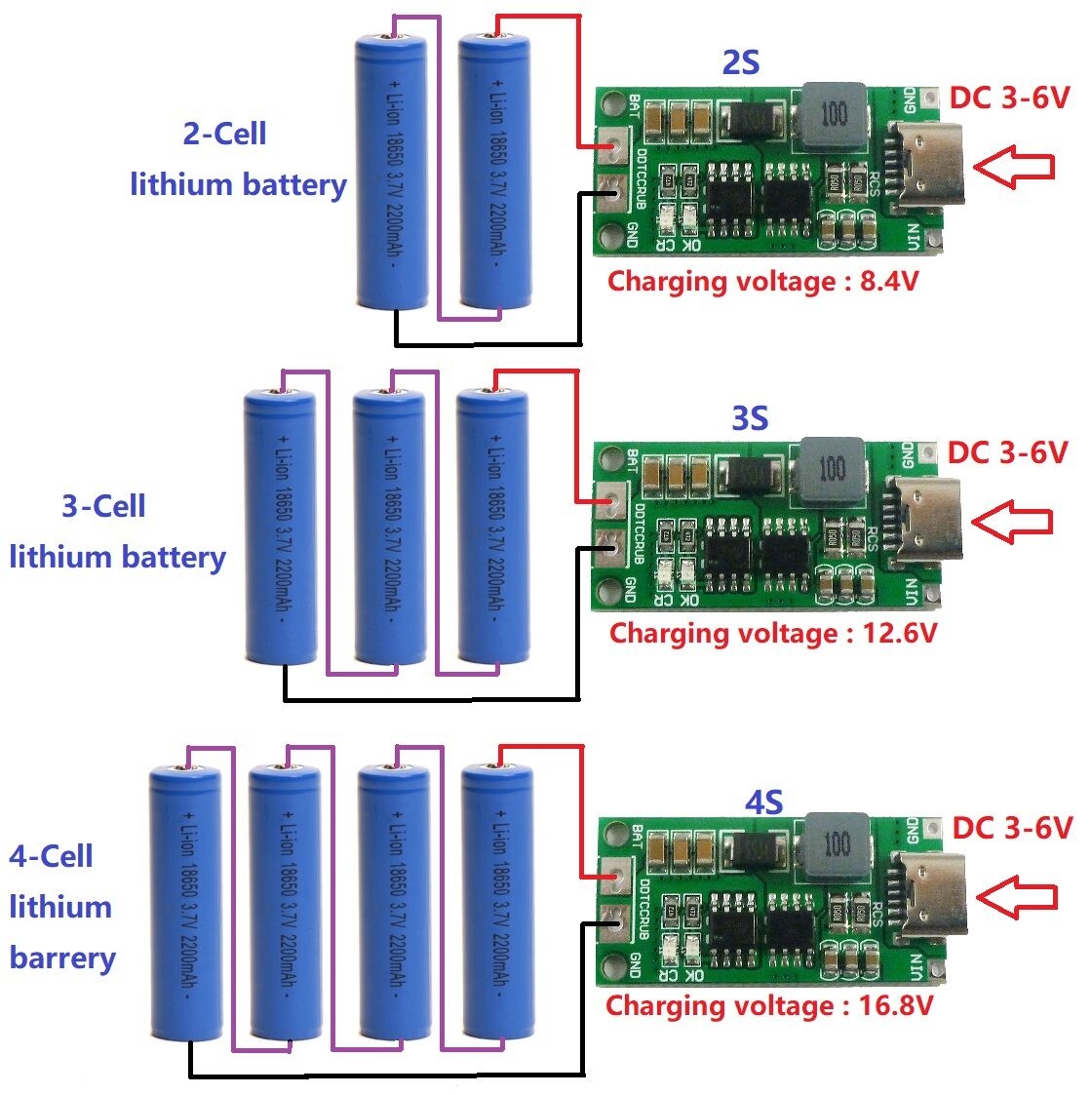

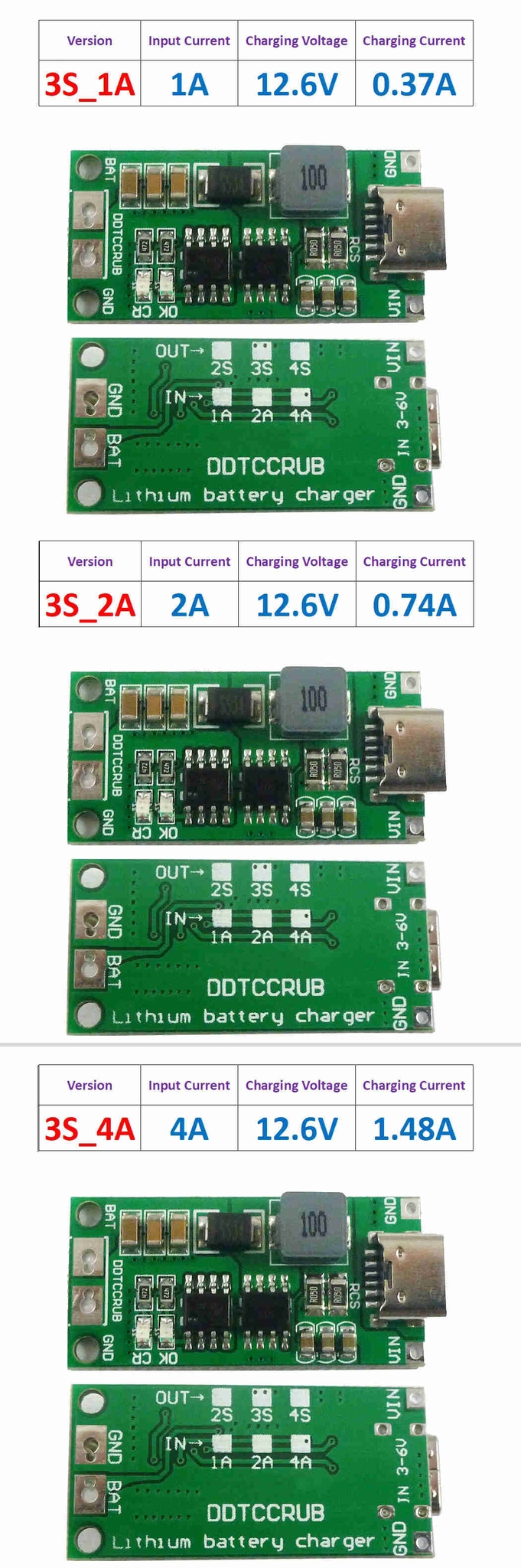

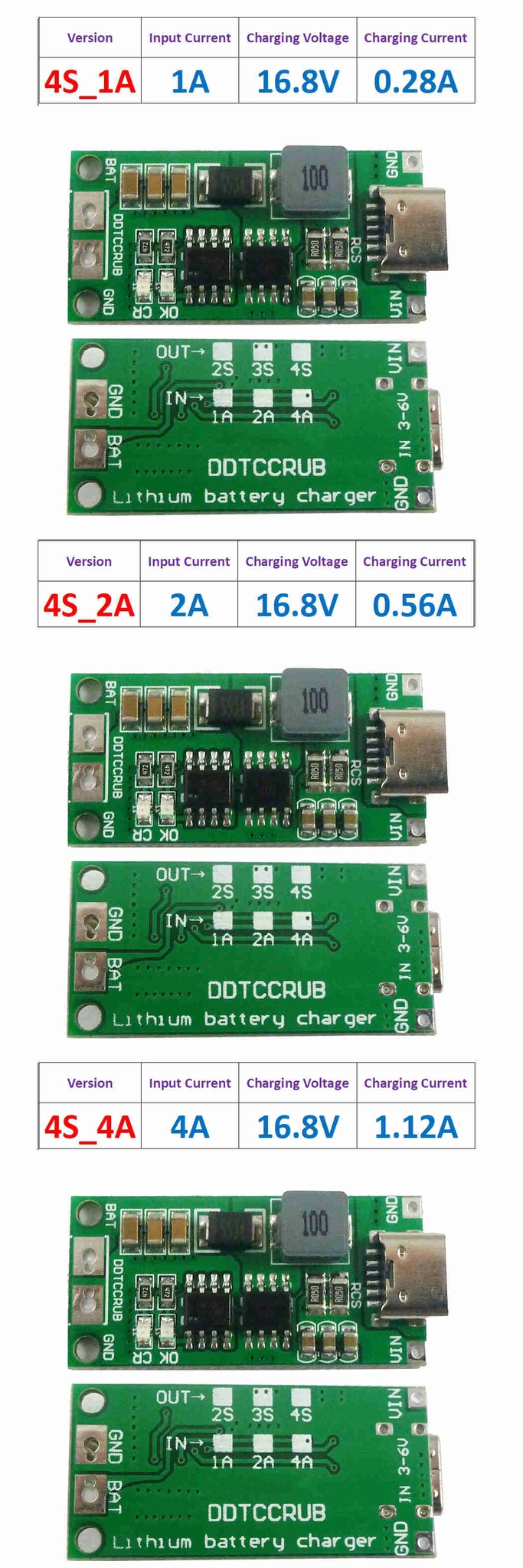

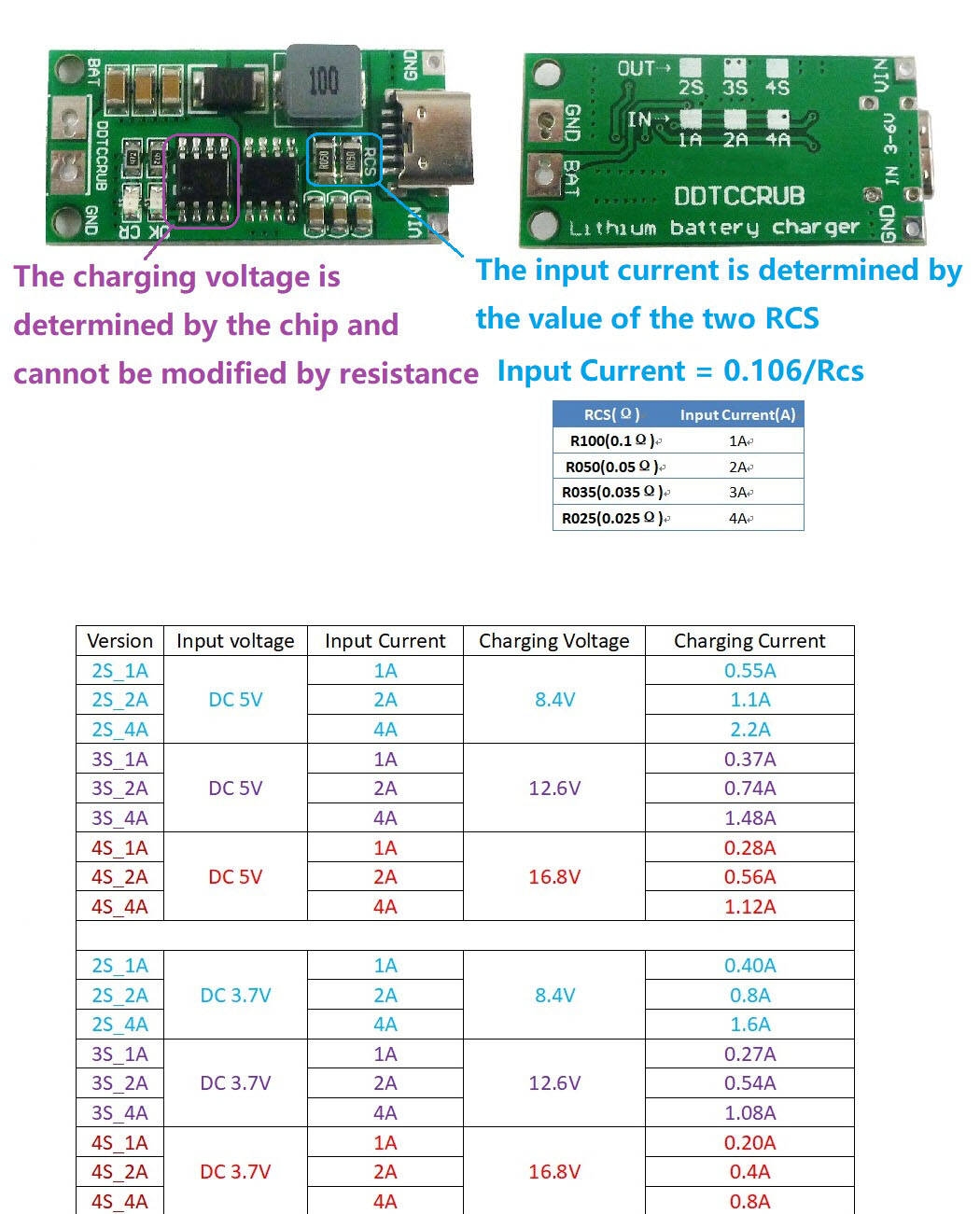

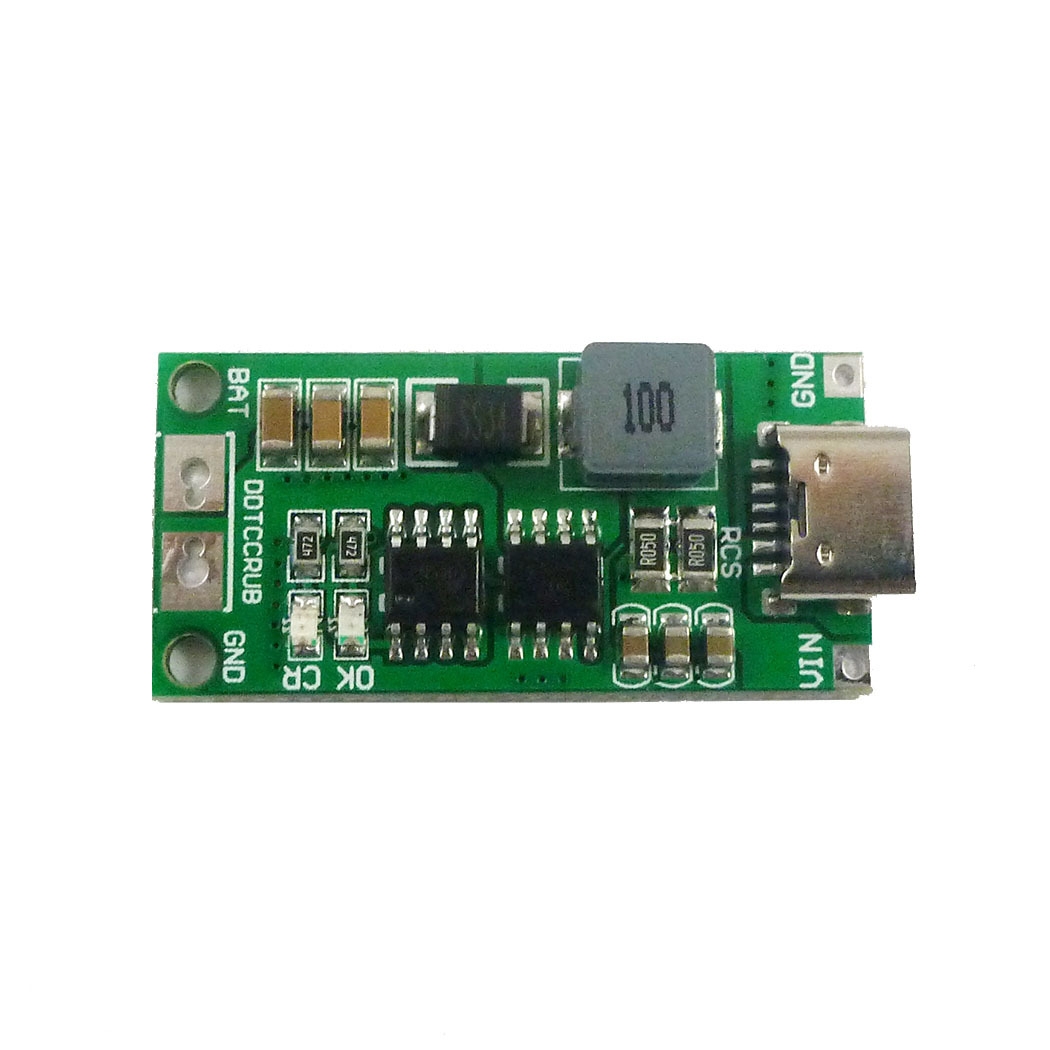

2 Strings 3 Strings 4 Strings Lithium-Ion Battery Charger Battery Protection Board Typec USB Boost Charging Board Dc3-5V

Features:

1) high-accuracy voltage detection circuit;

2) terminal of the charger using high voltage device;

3) Built-in three-stage over-current detection circuit (over-current 1, over-current 2, or load short circuit);

4) MOS transistor can control the battery charge and discharge;

5) low standby current consumption.

Notice:

1. Please pay attention to the use condition of input and output voltage and load current , make the protective plate within the power consumption of no more than specification allows power consumption;

2. Connect the battery  will happen cannot  discharge status, in this case, connect the charge can be restored to normal working state;

3.If a set of batteries with over-discharge and over-charge cells, the bms cannot be charge and discharge.

Aplicaciones:

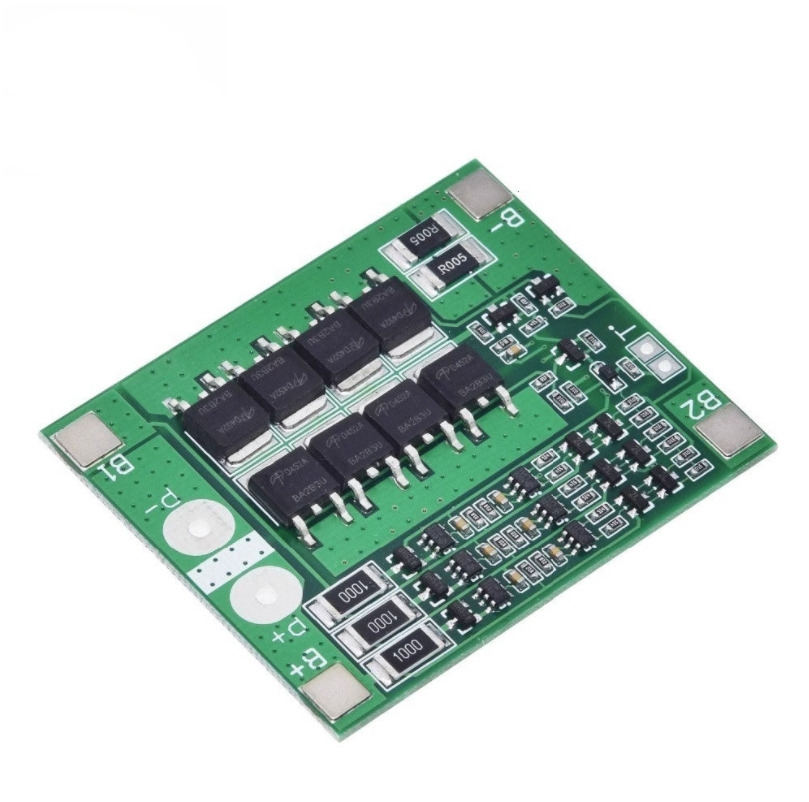

3S li-ion18650, licoo2, limn2o4, Li (nicomn) O2 baterías recargables

3S lipo baterías recargables

over discharge: 4.3V

over charge: 2.3V

continous current: 25A

over current: 38A

balance voltage: 4.2V

balance current: 50mA

size: 56mm*45mm*4mm
