HomeIndustrial & ScientificIndustrial ElectricalSensorsCurrent SensorsOpen Loop Current Sensors1PCS SCT-013-000 30A 1V 1% Non-invasive Split Core Current Transformer AC Current Sensor
/product/97/6265914/1.jpg?5773)
Share this product
₦ 26,000
Few units left
+ shipping from ₦ 750 to LEKKI-AJAH (SANGOTEDO)
0 out of 5
(No ratings available)Promotions
Delivery & Returns
Choose your location
Pickup Station
Delivery Fees ₦ 750
Ready for pickup between 25 September and 28 September if you place your order within the next 17hrs 15mins
Door Delivery
Delivery Fees ₦ 1,550
Ready for delivery between 25 September and 28 September if you place your order within the next 17hrs 15mins
Return Policy
Free return within 7 days for ALL eligible itemsDetails
Seller Information
PIERTOELECT.NIG.LIMITED
80%Seller Score
30 Followers
Seller Performance
Shipping speed: Excellent
Quality Score: Excellent
Customer Rating: Very Poor
Cancellation Rate: Excellent
Product details
Model: SCT013
Frequency: 50HZ-150KHZ
Open-close transformer SCT-013 Rated input current: 100A Model: SCT-013 Rated input current: 60A/100A
Uses. Used for current measurement, monitoring and protection of AC motors, lighting equipment, air compressors, etc.
Core material: ferrite
Mechanical strength: open and close not less than 1000 times (tested at 20 ℃)
Safety indicators: electrical strength (between the shell and output) 6000V AC/1min
Flame retardant characteristics in line with UL94-V0
Operating temperature: -25℃～+70℃

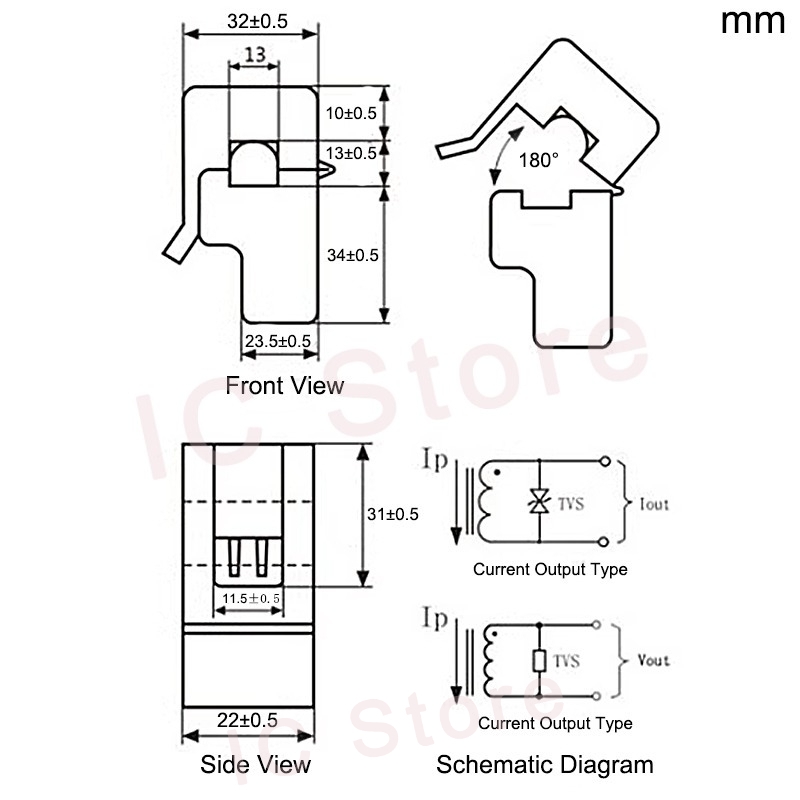

Aperture size: 13mm × 13mm, fully compatible with similar foreign products
Non-linearity: ±3% (10%-120% of rated input current)
Cable length: 1 meter, standard 3.5mm three-core plug
Output format:
Voltage output type with built-in sampling resistor
Current output type with built-in bidirectional protection diode
Specifications
Key Features
Model: SCT013
Frequency: 50HZ-150KHZ
Open-close transformer SCT-013 Rated input current: 100A Model: SCT-013 Rated input current: 60A/100A
Uses. Used for current measurement, monitoring and protection of AC motors, lighting equipment, air compressors, etc.
Core material: ferrite
Mechanical strength: open and close not less than 1000 times (tested at 20 ℃)
Safety indicators: electrical strength (between the shell and output) 6000V AC/1min
Flame retardant characteristics in line with UL94-V0
Operating temperature: -25℃～+70℃
Aperture size: 13mm × 13mm, fully compatible with similar foreign products
Specifications
- SKU: GE779IP889V4VNAFAMZ
- Weight (kg): 1.0kg
