1 DIN Car Stereo Radio Audio MP3 Player Bluetooth Handsfree 4x60W USB FM AUX

₦ 16,000

Few units left

+ shipping from ₦ 950 to LEKKI-AJAH (SANGOTEDO)

2 out of 5

(1 verified rating)

Promotions

Call 07006000000 To Place Your Order Enjoy cheaper shipping fees when you select a PickUp Station at checkout.

Report incorrect product information

Delivery & Returns

Choose your location

Pickup Station

Delivery Fees ₦ 950

Ready for pickup between 04 March and 05 March if you place your order within the next 19hrs 3mins

Door Delivery

Delivery Fees ₦ 1,710

Ready for delivery between 04 March and 05 March if you place your order within the next 19hrs 3mins

Return Policy

Free return within 7 days for ALL eligible itemsDetails

Seller Information

Nobleangel store

86%Seller Score

223 Followers

Seller Performance

Shipping speed: Excellent

Quality Score: Good

Customer Rating: Good

Product details

Description

24v Bluetooth Car Audio 1 DIN In Dash Aux Input SD USB MP3 FM Radio Player JSD-520

Specification:
-Model: JSD-520 Bluetooth Type
-Panel Size: 188 x 150 x 58mm (Wide*Deep*Height)
-Installation Dimension: 178 x 150 x 50mm (Wide*Deep*Height)
-Quantity: 1 piece
-Power Supply: 24V
-Max. Power Output: 60W×4
-FM Frequency Range: 87.5-108.0MHZ
-Back Light: Blue
-English Manual: Yes

Features:
-Elegant carry case design, with clear LCD display, LED security light
-Support MP3/WMA/WAV/APE file playback from USB/SD Card (Maximum support 32GB)
-Support FM Radio, automatic frequency adjustment
-Support hands-free calls, answer or hand up the phone after connect the radio via bluetooth
-Bluetooth function, play music from your phones via bluetooth
-Volume Control/ Real Time Clock Function/ FM Radio/ Electronic Preset Equalizer Control
-Auto memory preset store
-Remote Control
-Mounting Accessories included

Bluetooth Connecting Method:
Turn on your phone BLUETOOTH function, search on and connect the "CAR/btmp3" item,
Enter password "0000" (if needed)
Press MODE button to the bluetooth function
then the MP3 Player is now available for use.

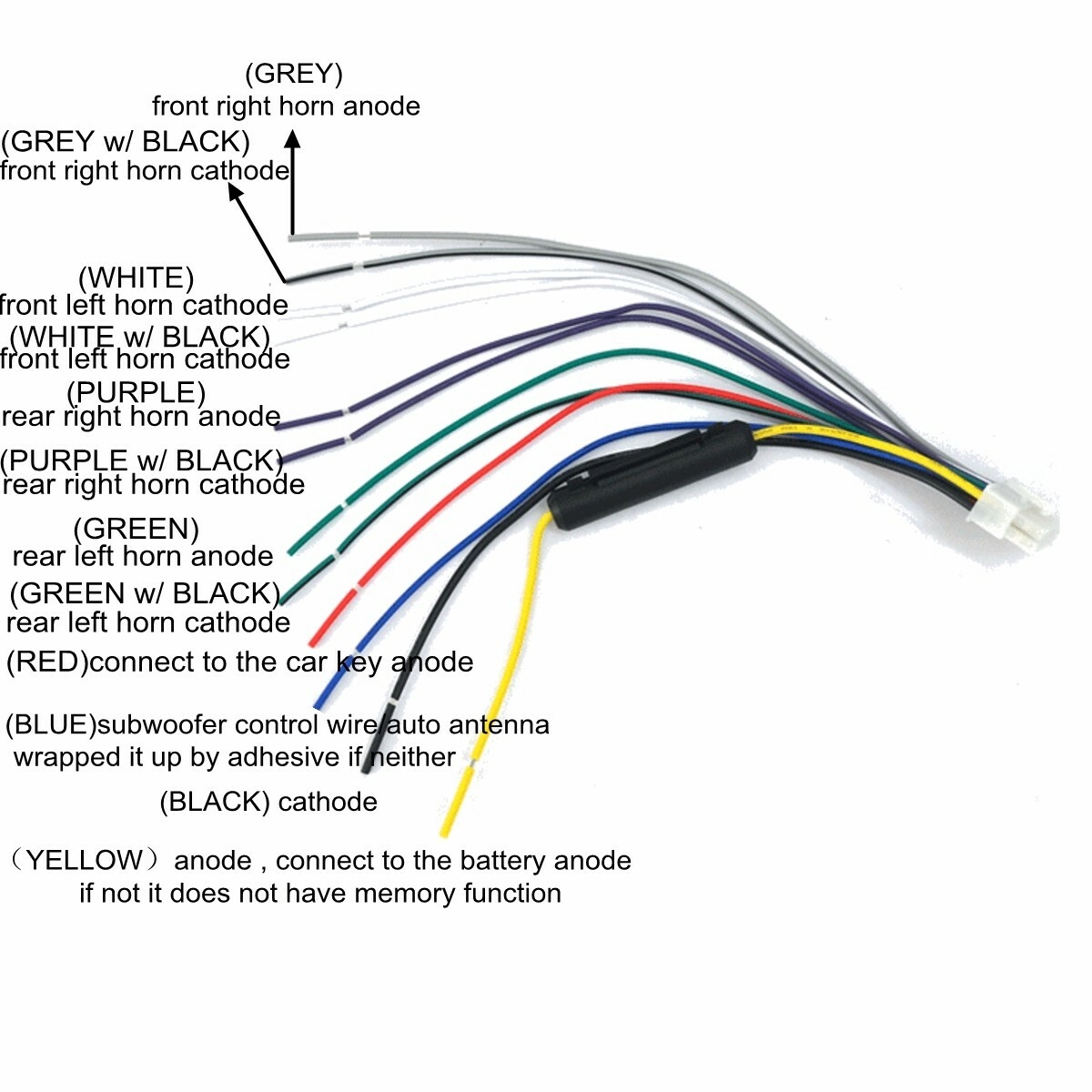

WIRING GUIDE
-Testing Methods:
1. Twist the RED and YELLOW wire together and connect to the anode. The BLACK wire connect to the cathode.
2. Connect one piece of the wires to the horn, do not touch the wires each other.
-Installing Methods:
please DO NOT electrify the machine before you connect the wires, otherwise it will damage the machine.
1. The YELLOW wire connect to the anode of accumulator, while the BLACK cathode.
2. The RED wire connect to the car key ignition.
3. If your cars have any subwoofers or exterior antennas, you also need to connect the BLUE wire.
4. Otherwise wrap the BLUE wire with adhesive plaster for other car models.
5. Horn has positive and negative electrode, connect them according to the methods.

Package Included:
1 x Packing Box
1 x Bluetooth MP3 Player
1 x Remote Control
1 x Cable
1 x English Manual

Note:
1. If this stereo no power after installation, try to connect red and yellow wire together to the positive.
2. 2 Antenna Jack will not affect the performance of product.
3. Please check the size measurement chart carefully before making a payment.
4. Please allow 0.1-0.5cm difference due to manual measurement.
5. The color of the actual items may slightly different from the listing images due to different computer screen, thanks for your understanding.
