Conveyor Belt Lacing 12’’/24'' Conveyor Belt Lacing Belt Fasteners 304（Box Of 12）

Steel buckles are used for lightweight conveyor belt coupling. It can be bound to PVC belts, Teflon mesh belts, nylon belts and canvas belts. Made of food grade stainless steel, acid and alkali resistant, anti-magnetization, no contamination of transported materials; plate forming, low flat joints, reducing the obstruction of conveyor belt running; short buckle body structure, adapting to the requirements of small rollers of light conveyors; one-piece buckle, high tensile strength.

• Wire Hook Fastener – U1
  Fastener Length: 12″ /24'' (300mm/600mm)
  For the belt Thickness: 1.6-2.8mm (0.063″-0.11″)
  Package: 12 Strips / Box （6 Sets Fastener not including Connecting Pins）
  Fastener Material: SUS304
•
• Wire Hook Fastener – U2
  Clasp Length: 12″ /24'' (300mm/600mm)
  For tape thickness: 2.8-4.0mm (0.11"-0.157")
  12 strips per box (6 sets of fasteners, not including connecting pins)
  Fastener material: SUS304
•
• Wire Hook Fastener – U3
  Clasp Length: 12″ /24'' (300mm/600mm)
  For tape thickness: 4.0-4.8mm (0.157"-0.189")
  Package: 12 strips/box (6 sets of fasteners, not including connecting pins)
  Fastener material: SUS304

Wire Hook Fastener U1 – 300 mm wide Clasp Length: 12 inches (300 mm) For tape thickness: 1.6-2.8mm (0.063"-0.11") 12 strips/box (6 sets of fasteners, not including connecting pins) Fastener material: SUS304 Wire Hook Fastener U2 – 300 mm wide Clasp Length: 12 inches (300 mm) For tape thickness: 2.8-4.0mm (0.11"-0.157") 12 strips per box (6 sets of fasteners, not including connecting pins) Fastener material: SUS304 Wire Hook Fastener U3 – 300 mm wide Clasp Length: 12 inches (300 mm) For tape thickness: 4.0-4.8mm (0.157"-0.189") 12 strips/box (6 sets of fasteners, not including connecting pins) Fastener material: SUS304

Applications:

Manufacturing Assembly Lines
Food, Package, Parts Handling Checkout Counters
Agricultural Equipment

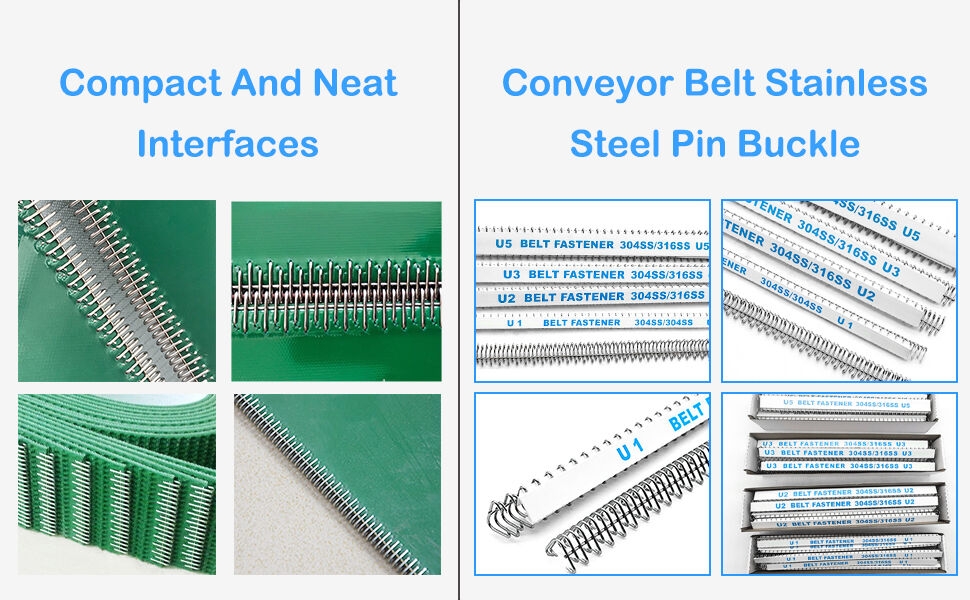

Features: Interlaced fastener strips that create an exceptionally smooth joint. Available in continuous lengths to fit any belt width. Ideal for transmission belts and other less demanding, low volume applications. Installation:
Roller Machine-easy to install the Wire Hook Fastener, which can help to improve work efficiency. Self-service installation- use a hammer. Notes: The dash size after the Lacing Size is the width of the lacing. Steel is the standard fastener material. It is suitable for most applications and is plated for rust and corrosion resistance. 300 Series stainless steel is non-rusting and displays extra resistance to abrasion, acids, chemicals, and magnetic attraction. It is excellent in applications with high sanitation requirements.
