Conveyor Belt Lacing 12’’/ 24'' Spike Fastener SUS304

Conveyor Belt Lacing Fastener, 12”(300mm)/24”(600mm) long4 PCS/BOX with 2 Hinge PinsOne-piece fastener strip, Mechanical fastener rating up to 45 PIW (7.8 kN/m) for Belts thickness from 1/16’’ to 3/32’’Plate forming with low and flat belt fastener joints reduces transport downtime for repairs and replacements. Short Buckle Body meets the requirements of a small roller of light conveyor.Made of food-grade stainless steel, it will not contaminate the transport material and is acid-resistant, alkali-resistant, and anti-magnetic, which prolongs the service life of the fastener and maintains the purity of the material being transported.Used in a variety of applications such as logistics, industrial, and pharmaceutical transmission, they provide you with easy and economical installation solutions for low-profile conveyor belt Lacing.

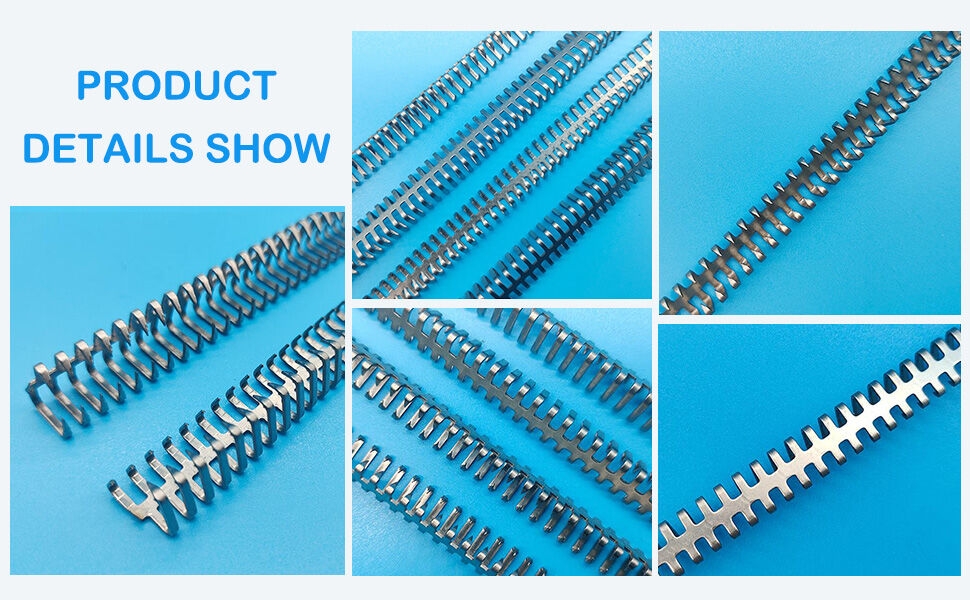

Spike Fastener Series Conveyor Belt Lacing System is easy, economical to install, and has an exceptionally smooth joint. Spike Lacing Fastener is available in continuous lengths to fit any belt width, and the one-piece design provides uniform tension across the full belt width, ensuring that loose parts won't fall off the belt and into the product being conveyed.
Lacing Number: 1#Length: 12'' (300MM) / 24'' (600MM)For Belt Thickness: 1/16''to 3/32''(1.5mm-2.5mm)Lacing Material: Food Stainless SteelMinimum Pulley Diameter: 1.6" (40mm)Tensile Strength: 45 P.I.W. (7.8 kN/m)Packaging: 4 PCS Spike Fasteners with 2 Hinge Pins
Lacing Number: 7#Length: 12'' (300MM) / 24'' (600MM)For Belts thick: 3/32"-9/64" （2.5mm - 4.8mm）Mechanical fastener rating up to 50 PIW (8.7 kN/m)Lacing Material: Food Stainless SteelMinimum pulley diameter: 2” (50 mm)Packaging: 4 PCS Spike Fasteners with 2 Hinge Pins
Lacing Number: 15#Length: 12'' (300MM) / 24'' (600MM)For Belt Thickness: 3/16"-1/4” (4.8mm-6.4mm)Lacing Material: Food Stainless SteelMinimum Pulley Diameter: 2-1/2" (65mm)Tensile Strength: 65 P.I.W. (11.4 kN/m)Packaging: 4 PCS Spike Fasteners with 2 Hinge Pins
Lacing Number: double 7#Length: 12'' (300MM) / 24'' (600MM)For Belt Thickness: 3/32" - 9/64"Lacing Material: Food Stainless SteelMinimum Pulley Diameter: 2"Tensile Strength: 50 P.I.W. (8.7 kN/m)Packaging: 4 PCS Spike Fasteners with 2 Hinge Pins

45 P.I.W. high tensile strength: The Spike Lacing fastener has a toothed lace that is embedded in the belt by the longitudinal direction, providing a strong vise-like hold, while its staggered leg design provides extra strength and durability to the belt splice.One-piece strip for uniform tension: One-piece fastener strips not only provide uniform tension across the entire width of the conveyor belt, they also ensure that loose parts do not fall off the belt into the product being conveyed.
Smooth Joints: Spike Fastener Series provides constant compression for flat, even, and straight splices, which also aids in hinge pin insertion.
Short Buckle Body Structure: Mechanical Fastener Steel Buckles are suitable for light-duty conveyors with small roller requirements.
Food-grade stainless steel Material: Conveyor Belt Lacing Spike Fasteners are made of food-grade stainless steel, which not only can prolong the use and working life of the product, but also won't contaminate the conveyor material, and is acid-resistant, alkali-resistant, anti-magnetic and so on.

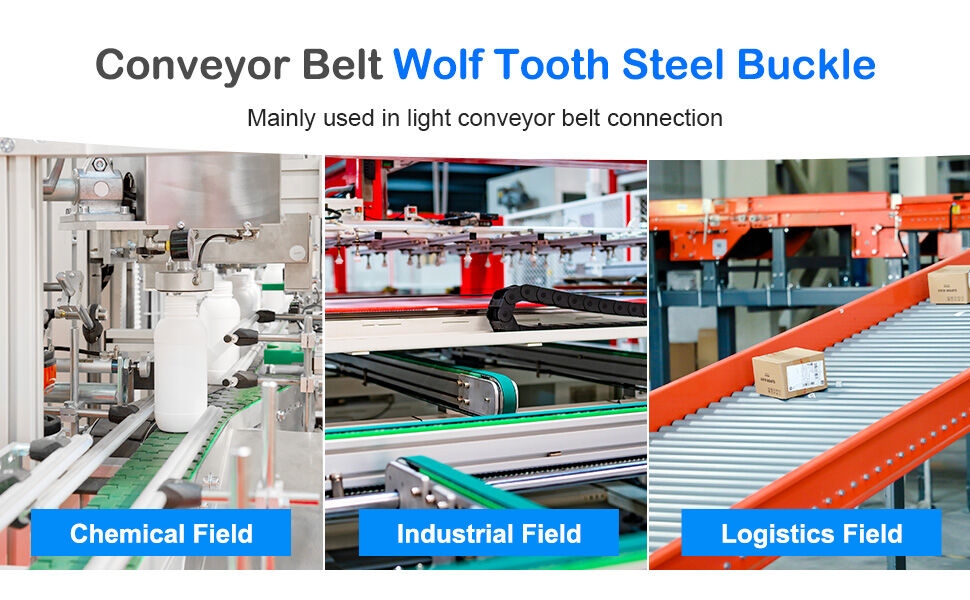

Uses and Application Scenarios:Steel Conveyor Belt Lacing is available for PVC tapes, Teflon webbing, nylon tapes, and canvas tapes. They are used in various applications such as logistics, industrial and pharmaceutical transmission.
