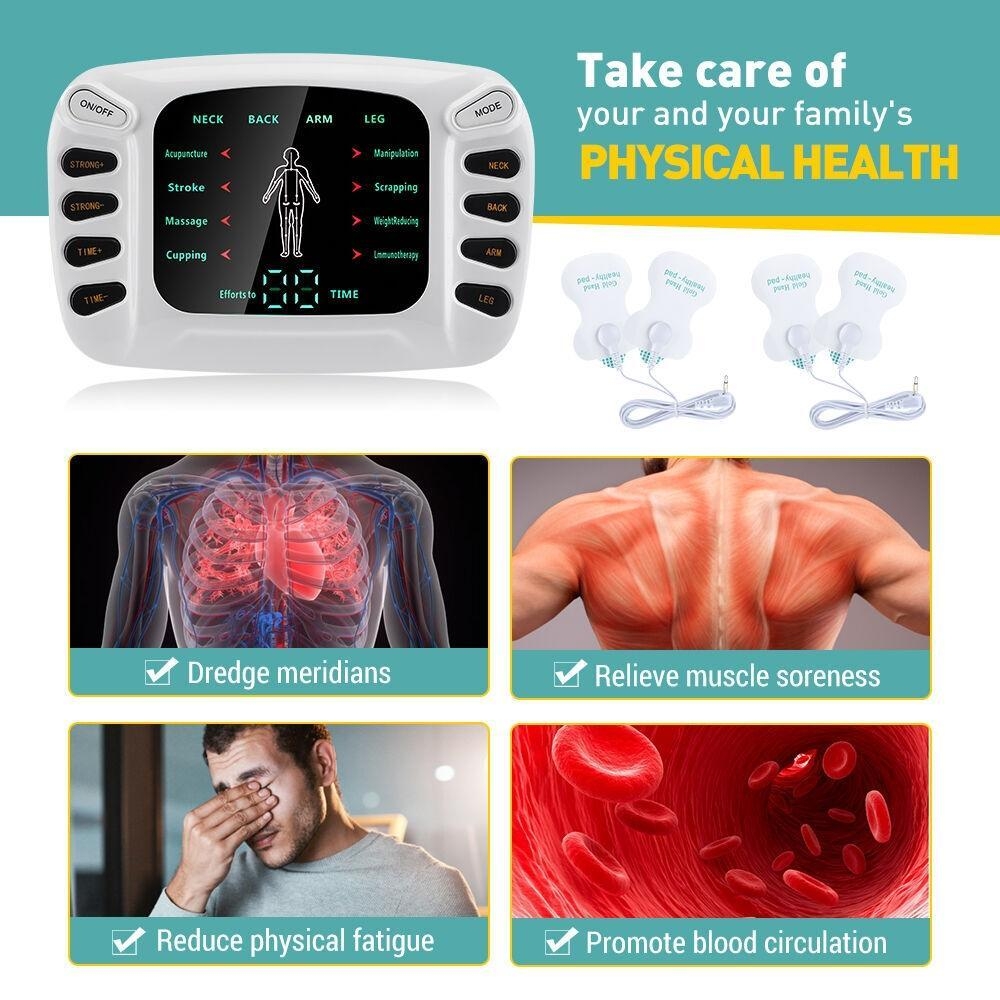

Blueidea Electronic Pulse Massager with LCD Display, Electrode Pads & Massage Slippers

Electronic Body Pulse Massager for Muscle Relaxation, Pain Relief, Weight Reduction, TENS Acupuncture Therapy Machine

Tired of persistent muscle aches and body fatigue?

Bring the relief of a professional physiotherapy session right into the comfort of your home. The Blueidea BLD-321 Electronic Pulse Massager uses advanced TENS/EMS technology to send gentle electrical pulses that block pain signals, stimulate muscles, and instantly boost blood circulation. Whether you are recovering from a hard workout, a long day at the office, or managing chronic joint discomfort, this all-in-one therapy kit delivers targeted relief exactly where you need it.

This electronic pulse massager offers several massage modes, including acupuncture, tapping, massage, cupping, and slimming-style massage; it also has a unique immune-regulating function and medical physical therapy electrodes, which make the therapy more effective. It is suitable for people who lack sleep, have hypertension, stroke, or experience cervical pain. The massager is based on the principles of physics, bionics, bioelectricity, and traditional Chinese medicine's science of channels and collaterals.

Features

• Digital display for treatment guidance.
• The default physiotherapy time is 15 minutes.
• It is portable, effective, and good for health.
• Suitable for waist, shoulder, leg, and foot massage and physical therapy.
• 8 Multi-Functional Therapy Modes: Choose from 8 specialized physical therapy routines, including Acupuncture, Stroke, Massage, Cupping, Manipulation, Scraping, Weight Reducing, and Immunotherapy.
• The electronic pulse promotes blood circulation, relieves pain, and promotes metabolism.
• Usage: Turn the switch knob clockwise to start the device and increase the power intensity. Turn it counterclockwise to reduce the intensity and stop the device.

Specifications

• Current: 300 mA.
• Frequency: 1–50 Hz.
• Power supply: DC 4.5 V.
• Pulse intensity: 10 levels.
• Powered by 3 × AA batteries (not included).
• It can also be powered or used with a power bank

Tips

1. Please place two electrode pads on the same person and on the same side of the body before turning on the power.
2. Remember that electrode pads are not hot-touch accessories.
3. Do not use the device in wet areas, such as the bathroom or kitchen.

Preparing and Setting Up the Electrodes

1. First, correctly connect the electrode cord to the electrode pads or magnetic shoes.
2. Second, insert the plug of the electrode cord into the unit's electrode jack.
3. Third, peel off the protective film from the electrode pads.
4. Fourth, use a damp towel to wipe the area of skin where you will be placing the pads to remove any oil, cosmetics, or dirt.
5. Fifth, if the electrode pads become soiled, both their adhesiveness and the number of times they can be used will be reduced.
6. Sixth, apply the electrode pads to the area of the body you wish to massage. The unit cannot operate unless both pads from at least one channel are applied.

Button Description and Functions

1. ON/OFF Button: Turns the device on or off.
2. MODE Button: Allows you to select or change the massage mode.
3. STRONG+ Button: Increases the massage intensity.
4. STRONG− Button: Decreases the massage intensity.
5. TIME+ Button: Increases the treatment time.
6. TIME− Button: Decreases the treatment time.
7. NECK Button: Selects the neck massage area.
8. BACK Button: Selects the back massage area.
9. ARM Button: Selects the arm massage area.
10. LEG Button: Selects the leg massage area.

Display Functions

1. Massage Modes: The display shows the available massage modes, including Acupuncture, Stroke, Massage, Cupping, Manipulation, Scrapping, Weightlifting, and Immunity.
2. Body Area Indicator: The display shows a body diagram to indicate the selected massage area.
3. Timer Display: Shows the remaining or selected treatment time.

Troubleshooting Problem: No Stimulation at All

1. Are the pads and the cord connected properly?
   Check the connections to make sure they are correct.
2. Are the electrodes positioned properly?
   Refer to the instructions above on how to position them correctly.
3. Have the batteries run down?
   If so, replace them with new ones.
4. Are the batteries installed properly?
   Refer to the instructions above on how to insert them correctly.

Problem: The Display and Treatment Mode Light Up, but There Is No Stimulation

1. Are the electrodes positioned properly?
   The power to the connected channel automatically turns off after approximately 10 seconds if one of the two electrode pads is removed from the skin. Therefore, place the pads firmly against your skin.
2. What is the intensity level set to?
   Press the intensity control button and stop at a level where the stimulation is moderate.
3. Are the electrode pads overlapping?
   Position the pads so that they do not overlap in any way.

Problem: Skin Turns Red

1. Is the treatment time too long?
   Limit your treatment time to 10–15 minutes.
2. Are the pads dried out?
   Wet the surface of the pads and try again. If that does not solve the problem, or if the pads are heavily soiled, replace them with new ones.
3. Are the pads firmly attached?
   Position them so that they fit closely against your skin.

People Who Should Not Use the Electrode Pulse Massager for Low-Frequency Treatment

People who have any of the following conditions or symptoms should not use the electrode pulse massager:

1. Heart disease.
2. Use of a pacemaker.
3. High fever.
4. Acute (painful) diseases.
5. Abnormal blood pressure.
6. Menstruation, pregnancy, or the period after giving birth.
7. On or around cuts and/or skin diseases.
8. Malignant tumors.
9. When the body is wet from bathing, showering, or sweating.
10. Tuberculous disease.
11. People receiving medical treatment should consult a physician before using the device.

Caution

1. Please remove the batteries if the product will not be used for a long time.
2. Never apply the electrode pads to your skin while the power is on; otherwise, this may result in a sudden electric shock.
3. Make sure to turn off the power before moving the electrode pads to another part of your body or to another person's body.
4. If you feel anything unusual in either the main unit or your body, stop using the device immediately.
5. Do not use the unit in a room with high humidity or while bathing, driving, or sleeping.

Product Details

• Item Type: Massage Relaxation
• Material: Plastic
• Package Weight: 0.560 kg
• Product Size (L × W × H): 15.00 × 10.00 × 5.00 cm / 5.91 × 3.94 × 1.97 inches
• Package Size (L × W × H): 17.00 × 14.00 × 8.00 cm / 6.69 × 5.51 × 3.15 inches

Package Contents

• 1 × Electronic pulse massager control unit (BLD-321)
• 1 × Pair of massage slippers
• 4 × Electrode pads
• 2 × Connecting cables
• 1 × USB cable
• 1 × Power adapter
• 1 × User manual
