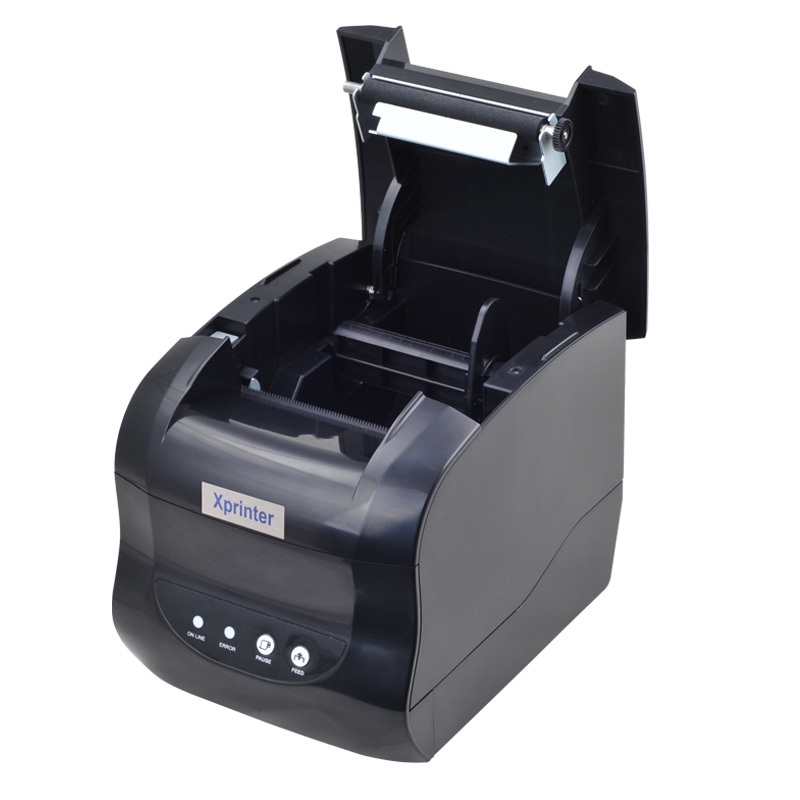

XPrinter XP-365B Label Printer Thermal Barcode Printer Sticker Printer 20-80mm Paper

Search products, brands and categories

Search

Hi, Onyema

Help

Cart

HomeComputingComputersPrintersLabel PrintersXP-365B Label Printer Thermal Barcode Printer Sticker Printer 20-80mm Paper

Manual: https://www.xprintertech.com/pos-printer-user-manual

application : https://www.xprintertech.com/xprinter-application

Barcode edit SDK : https://www.xprintertech.com/sdk

here is driver link : https://www.xprintertech.com/drivers-2

Note: the driver need to download at official website, please contact us if you need.

Lable sticker paper :

● No ink or ribbon required , more envmentally friendly

● Printing speed 127mm/s Max. in its cla

● Can contain up to 82 mm diameter paper roll

Production:

Model

XP-365B

Print mode

Label print mode

Receipt print mode

Printing Features

Resolution

203 DPI

Printing method

Direct Thermal

Max.print speed

127 mm/

90 mm/

Max.print width

76 mm

Media

Media type

Thermal roll paper, thermal adhesive paper

Media width

20~80 mm

Media thickne

0.06 ~ 0.19 mm

Media roll diameter

Max.82 mm

Supply method

Easy Paper Loading

Performance Features

Ram

4 M

Flash

4 M

Interface

USB/USB+Lan/USB+Serial+Lan

（Optional : WIFI/Bluetooth)

r

Print head temperature r/ Paper end/ Cover open / Gap

Print head temperature r/ Paper end/ Cover open

Drawer port

1 ports (Pin 2 for cashdrawer)

Fonts/Graphics/Symbologies

Character size

Commonly used in single-byte fonts; FONT 0 to FONT 8, K, TST24.BF2,TSS24.BF2

1D barcode

CODE128、EAN128、ITF、CODE39、CODE39C、CODE39S、CODE93、EAN13、EAN13+2、EAN13+5、EAN8、EAN8+2、EAN8+5、CODABAR、POSTNET、UPC-A、UPCA+2、UPCA+5、UPCE、UPCE+2、UPCE+5、MSI、MSIC、PLESSEY、ITF14、EAN14

2D bar code

PDF417、QRCODE、 DataMatrix

Emulaion

TSPL

ESC/POS

Physical Features

Dimension

212*140*144mm (D*W*H)

Weight

0.94 kg

Reliability

Print head life

100 km

Software

Driver

Window

SDK

iOS/ Android/ Window

Power supply

Input

DC 24V/2.5A

Envmental Conditions

Operation

envment

5～45℃ Humidity:RH  20 ~ 80%

Storage envment

-40～55 ℃ Humidity:93% RH
