WORK MASTER Circular saw machine 1600w

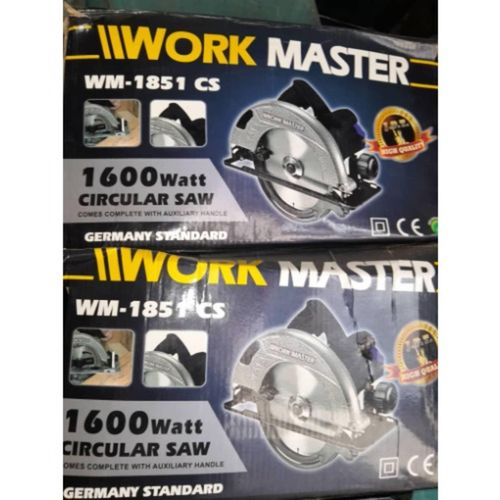

This is a Work Master WM-1851 CS 1600W circular saw, a high-power tool designed for cutting wood, plastic, and even light metals.

Key Specifications

• Power: 1600 Watts.
• Blade Size: 185mm (7-1/4 inches), typically with 18 or 40 teeth.
• Cutting Capacity: Up to 64mm at 90° and 46mm at 45°.
• Speed: Approximately 4,800 to 5,000 RPM (no-load).
• Features: Adjustable cutting depth, bevel adjustment (0–45°), and an auxiliary handle for better control.

Basic Usage Steps

1. Safety First: Always wear eye and hearing protection. Ensure the saw is unplugged before making any adjustments.
2. Adjust Depth: Set the blade depth so it extends no more than 5mm (or 1/4 inch) below the material you are cutting.
3. Prepare the Cut: Secure your workpiece with clamps and mark your cut line clearly.
4. Make the Cut:
   • Align the notch on the saw's base with your cut line.
   • Pull the trigger and let the blade reach full speed before touching the wood.
   • Push the saw forward smoothly—do not force it.

Maintenance Tips

• Blade Changes: Use the included hex wrench to loosen the arbor bolt (note: some saws have reverse threading) while engaging the spindle lock.
• Cleaning: Use the dust extraction adapter to connect a vacuum and keep the work area clear.
• Inspection: Periodically check the carbon brushes and power cord for wear.
