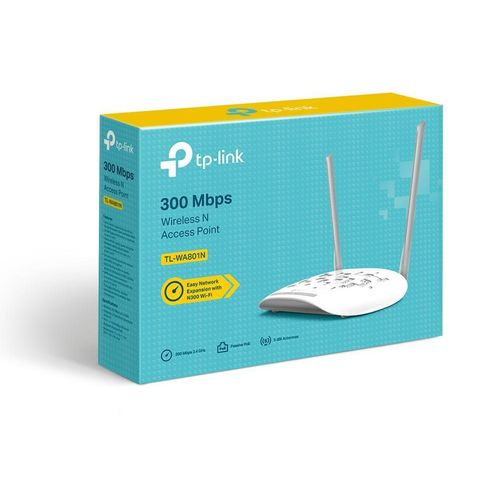

TP-Link 300 Mbps Wireless N Access Point

   Key Features

• Wireless N Performance: Delivers speeds up to 300 Mbps on the 2.4 GHz frequency band, making it well-suited for everyday tasks like web browsing, HD video streaming, and online gaming.

• MIMO Technology: Utilizing 2×2 Multi-Input Multi-Output technology and dual omnidirectional antennas, it minimizes signal degradation over long distances or through physical barriers like concrete walls.

• Flexible Deployment (Passive PoE): It includes a Passive PoE Injector, allowing the device to receive both power and data through a single Ethernet cable up to 30 meters (100 feet) away. This means you can install it on walls or ceilings where power outlets aren't available.

• One-Touch Security: Features a physical WPS button for instant, encrypted device pairing.

Multiple Operating Modes

The TL-WA801N is a multi-functional networking tool that supports 4 distinct operational modes:

1. Access Point Mode (Default): Transforms an existing wired network into a wireless network.
2. Range Extender Mode: Copies and boosts an existing wireless signal to expand Wi-Fi coverage into dead zones.
3. Client Mode: Acts as a wireless adapter, enabling wired-only devices (such as a desktop PC or printer) to connect to a Wi-Fi network via an Ethernet cable.
4. Multi-SSID Mode: Allows you to broadcast up to four separate wireless networks (SSIDs) simultaneously with distinct security protocols and VLAN settings (great for separating guest and main office traffic).

                                                          Technical Specifications
