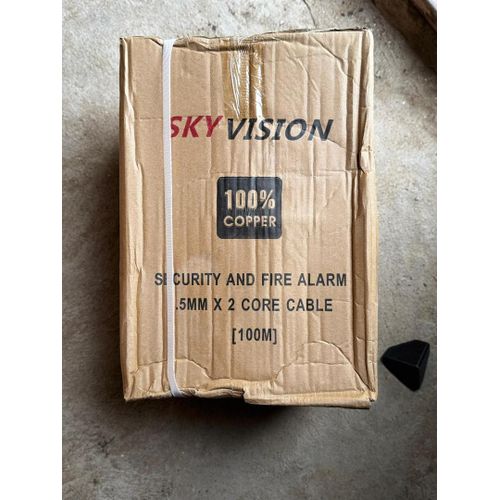

Quality Fire alarm 100m copper cable

A Security and Fire Alarm Cable is a low-voltage cable used for transmitting signals in fire detection, alarm systems, and security applications. It is designed to meet strict safety and fire-resistance standards.

1. Conductor
Material: Copper (Solid or Stranded)
Gauge (AWG): Common sizes include 12 AWG, 14 AWG, 16 AWG, 18 AWG, and 22 AWG
Number of Conductors: Typically 2 to 6, depending on the system requirements
2. Insulation
Material:
PVC (Polyvinyl Chloride) – Standard insulation for general use
FEP (Fluorinated Ethylene Propylene) – High-temperature resistance
Polyethylene (PE) – Used for enhanced durability and flexibility
Fire-Resistant Properties: Designed to withstand high temperatures and fire exposure
3. Shielding (Optional, Based on Application)
Unshielded (FPL, FPLR, FPLP) – Suitable for environments with minimal electrical interference
Shielded (FPLR-S, FPLP-S) – Reduces electromagnetic interference (EMI) in high-noise environments
Shield Types: Aluminum foil, braided copper, or Mylar
4. Outer Jacket
Material:
PVC (Standard use, cost-effective)
LSZH (Low Smoke Zero Halogen) for enhanced fire safety
Types:
FPL (General Purpose Fire Alarm Cable) – For basic applications, not for risers or plenums
FPLR (Riser-Rated Fire Alarm Cable) – Used for vertical runs in buildings (between floors)
FPLP (Plenum-Rated Fire Alarm Cable) – Used in plenum spaces (air-handling areas like ducts)
5. Voltage & Temperature Rating
Voltage Rating: Typically 300V (Power-Limited Applications)
Temperature Rating: Ranges from -20°C to 120°C, depending on insulation material
6. Fire Safety Standards & Certifications
UL 1424 – Standard for power-limited fire alarm cables
UL 1666 – Riser-rated fire-resistant cable standard
NEC (National Electrical Code) – Compliance with fire and electrical safety regulations
NFPA 70 & 72 – Fire alarm and emergency system codes
RoHS Compliance – Ensures environmentally safe materials
