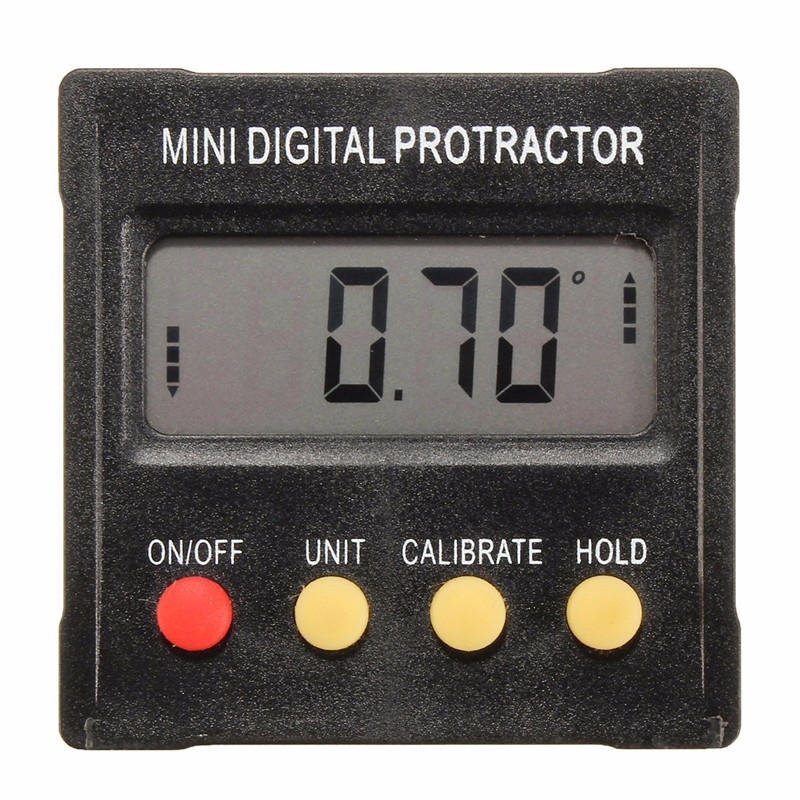

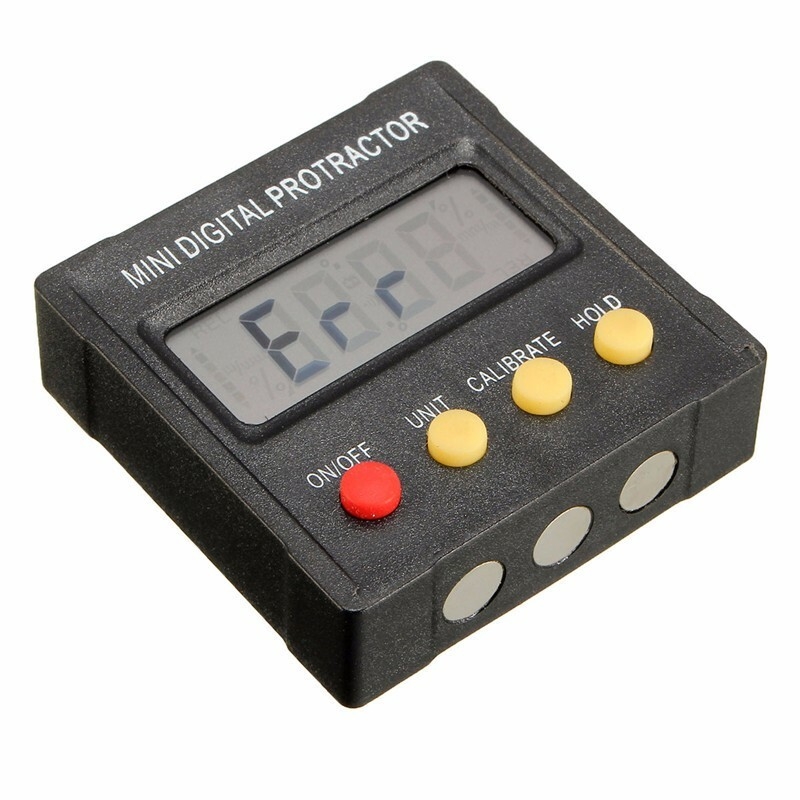

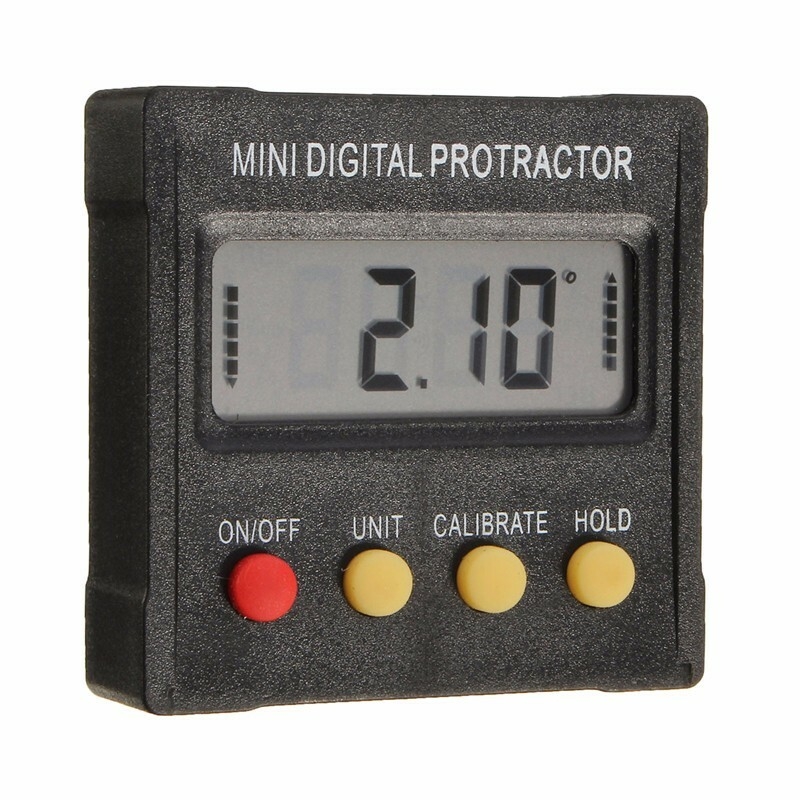

Mini Digital Protractor Inclinometer Clinometer Angle Finder

360 Mini digital protractor inclinometer clinometer angle finder Upright Magnet



Brief Description



This mini Digital Inclinometer is used to measure slope angles 4 x 90?
(total 360?) range with resolution 0.1? for wide variety of
applications. Readings can be shown in Degree or Percentage. Compared
with traditional inclinometers, this product equips 3pcs of strong
magnet so that it can firmly be attached to metal surfaces.



The
inclinometer is featured with large and clear LCD. It is ultra-slim and
more convenient for users to measure on small machines and easy for
carrying. You can even put it into your clothing pockets for field
works. In addition, the reading is always displayed upright even the
inclinometer is upside down.



Moreover, you can simply place the
meter on a reference surface zero to measure relative angle, then it
will give a result of measured slope angle. With absolute angle
measurement, you will able to test whether the working surface is on the
level. You can use this function to check roof slopes and wheel
alignment etc. This meter works great for miter and table saws, detailed
applications are listed as follows.



Applications



Drainage angles and run-off slopes

Tool setting on Lathes

Setting blade angle of Circular Saws

Setting blade angle of Miter Saws

Setting work piece angle for milling

Grader and tractor work alignment

Platform monitoring

Check drill press table setting, table saw, jointer table, band saw, jointer fence or band saw table



Features



Ultra-slim size

Portable design & simple operation

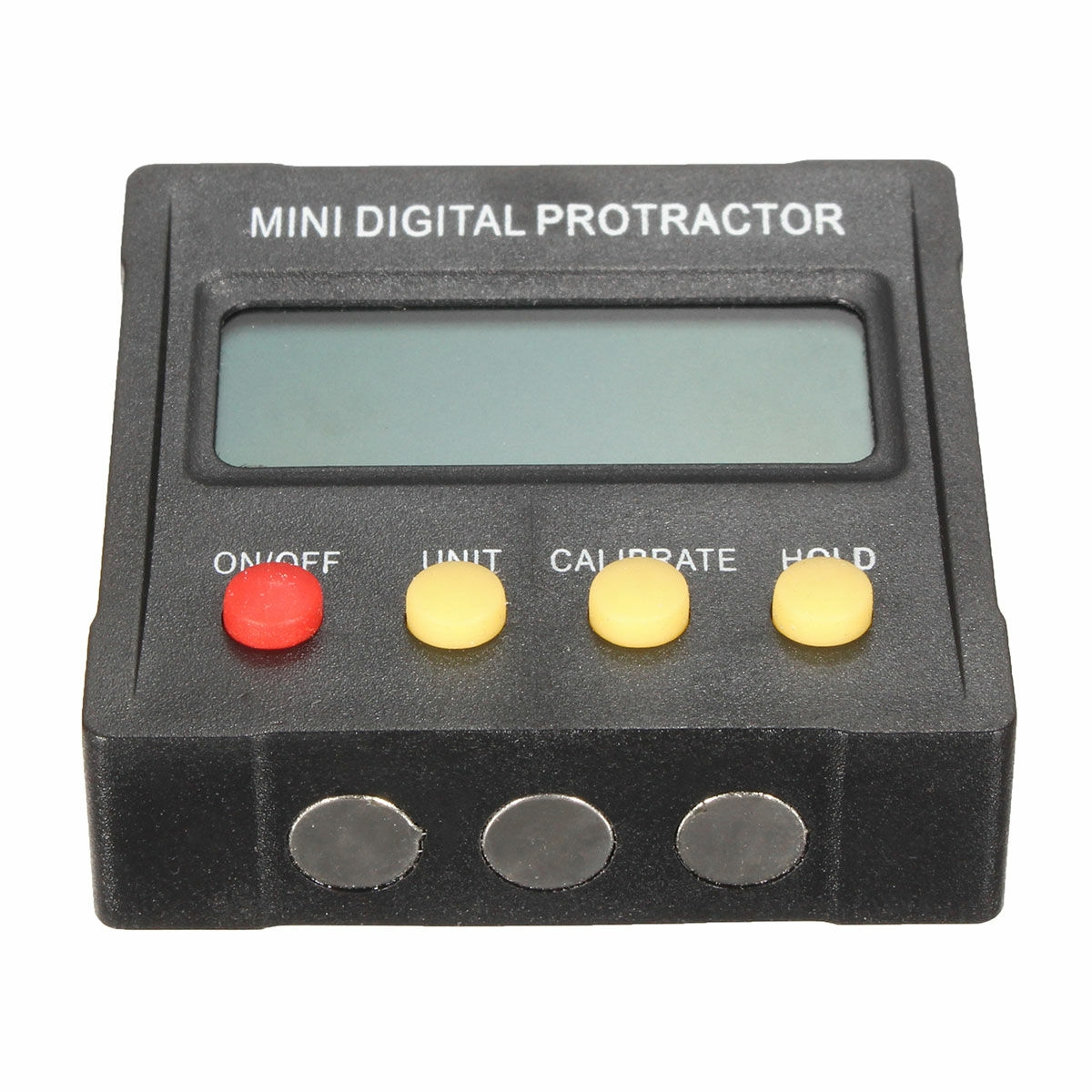

Built-in 3pcs of strong magnet for attaching on metal surfaces

High accuracy and resolution

Measuring range of 4 x 90? (total 360?)

Degree and Percentage of slope in conversion

Absolute & relative measurement modes

Large and clear LCD display

Measured data hold

Calibrate button to calibrate the meter to any reference surface

Displayed readings remain upright to enable easy viewing at all angles



Specifications



3pcs of magnet on base

Measuring Range: 4 x 90?

Resolution: 0.1?

Operating Temperature: 0 ~ 40 ?C

Operating Humidity: 40 ~ 80%

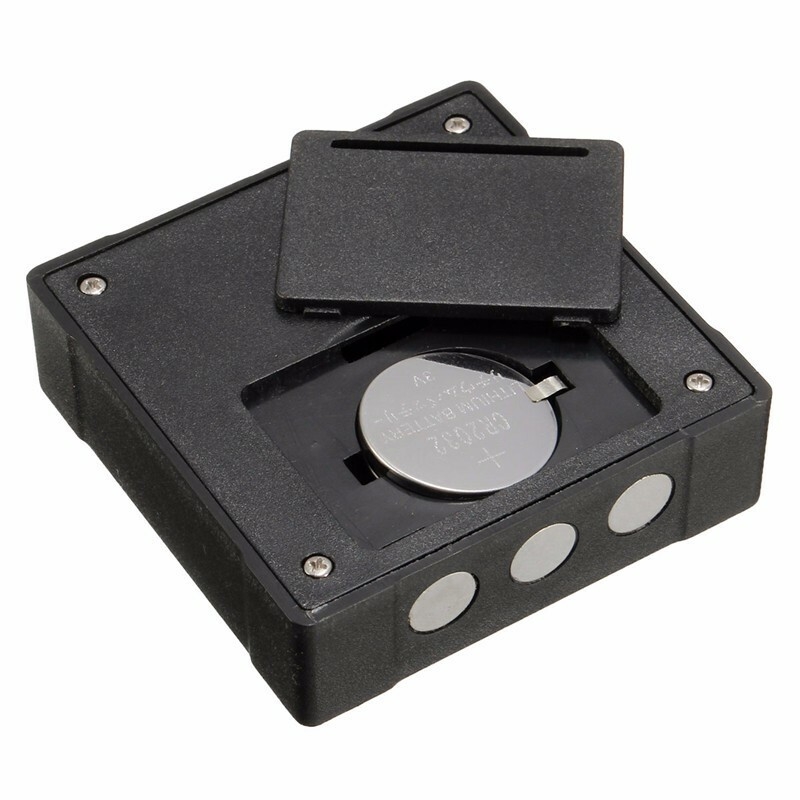

Power: 3 x 3V CR2032 Batteries (not included)

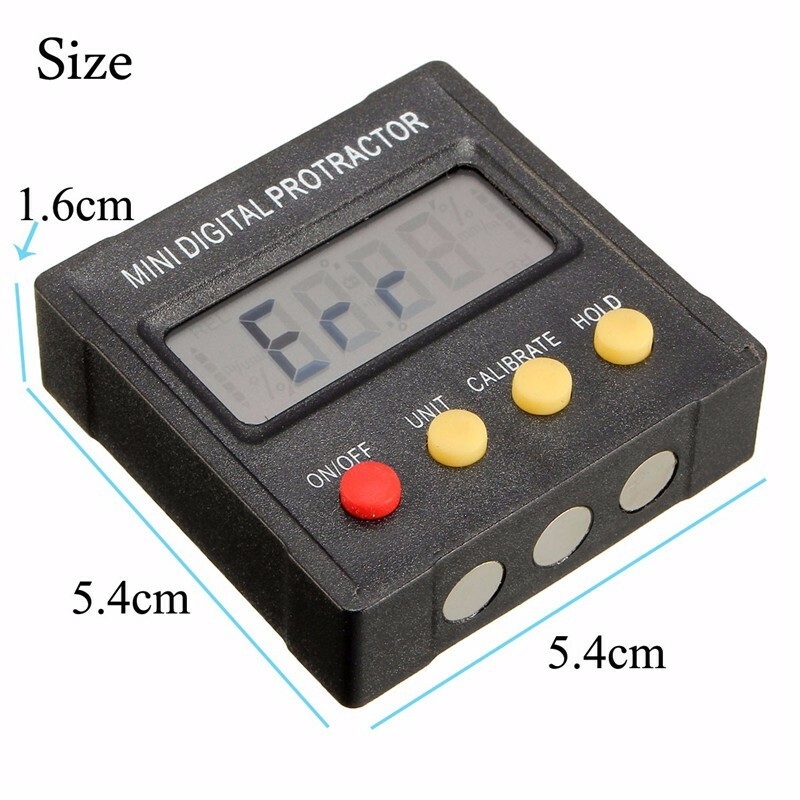

Dimensions: approx. 54 (L) x 54 (W) x16(D) mm (2’ x 2’ x 1’ inch)

Weight: 40g
