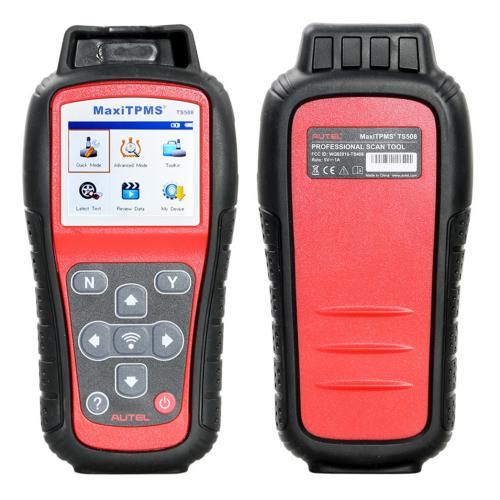

Autel MaxiTPMS TS508WF OBDiii TPMS Sensor Programmer

The MaxiTPMS TS508WF is a new generation TPMS diagnostic & service tool specially designed to activate all known TPMS sensors, read TPMS sensor status, check TPMS system health condition, program MX-sensors and conduct TPMS relearn. With Quick Mode and Advanced Mode options, you can save time and energy by choosing the most suitable way to complete TPMS work. TS508K, the starting TPMS kit with one tool and 8 sensors, can be your right choice to experience AUTEL TPMS lines.
■ Languages
English, French, German, Spanish, Portuguese, Dutch, Polish, Swedish, Korean, Japanese, Russian, ItalianActivates ALL magnetic, frequency and tire deflation triggered sensors using 125Khz continuous or modulated waive signals
 4 ways to program Autel MX-Sensors
1.Copy By Activation;2.Copy By Manual Input;3.Auto Create 1-16;4.Copy By OBD;
TPMS Diagnosis
Read / clear DTCs of TPMS and resets Malfunction Indicator Light
OBDII Connection
Provides fast  and accurate communication with Vehicle's ECU to run TPMS Diagnosis

Autel MaxiTPMS508 will performs the following functions.
Select Tire Type/PressureCopy By OBDOBD2 RelearnAdvance ModeQuick ModeCopy by Manual inputCopy by ActivationAuto CreateProgram MX-SensorCheck Key FobRelearn Procedure GuideScan TPMS SensorsRead Sensor DataHistorical Test RecordsMultilingual SupportSoft UpdatePrint Data Via PCBuilt-in Lion Battery.
---------------------------------------------------

1. Vehicle Specific Database (Domestic, Asian and European)
 2. Read TPMS sensor status and check TPMS system health condition
 3. Read Data including tire pressure, temperature, battery condition, OEM Part number and relearn information.
 4. Read / clear DTCs of TPMS and resets Malfunction Indicator Light
 5. Read / write sensor IDs from vehicle ECU
 6. Shows ID matching in color and Low Battery Indicator for Sensor
 7. Checks Remote Keyless Entry (Key FOB) for transmissions
 8. Program vehicle ECU to learn sensor IDs and positions
 9. Program Autel Wireless MX-Sensors and Receives 315MHz or 433MHz signals
10. Batch Programming - Program multiple sensors with one touch (up to 16 sensors at a time)
11. Relearn procedures at the touch of help button and Displays different sensor relearn procedures for different OEM sensors
12. TPMS Status Screens and On-screen code definitions for Easy Diagnosis
13. Auto Selection of Frequency for Fast Scanning
14. Activates ALL magnetic, frequency and tire deflation triggered sensors using 125Khz continuous or modulated waive signals
15. Displays OBD locations for test vehicles
16. OEM sensor information display based on vehicle Make/Model/Year
17. Pre-selection process offers faster activation and diagnostics
18. Provides visual and audible responses to confirm sensors are working properly
19. Proper LF signal to prevent being fooled by other RF signals
20. Code Notification Information
21. Built-in rechargeable 3.7 v Li-polymer battery and Automatic power-off to preserve battery life
22. Ergonomic design features strong housing and protective rubber boot
23. TFT Color Display (320 X 240 dpi) and 8.0" LED Capacitive touchscreen with 1024 X 766P resolution



Package
1 *  Host1 * OBD1 Cable1 * USB Cable1 * User Manual
