MAX4466 Electret Microphone Amplifier Module

The MAX4466 Electret Microphone Amplifier Module is a high-sensitivity, low-noise analog audio sensor designed specifically for microcontrollers and development boards like Arduino. It combines a small electret condenser microphone with a specialized operational amplifier (Maxim MAX4466) that features excellent power supply noise rejection and an adjustable volume gain.

Specifications:

Pinout Configuration:

The module features a simple 3-pin setup:

• VCC: Power input (2.4V – 5.5V). For the cleanest audio, connect this to a filtered 3.3V pin rather than a noisy digital 5V line.
• GND: Ground connection connected directly to your microcontroller's ground.
• OUT: Analog output signal. This pin outputs a varying voltage that tracks the audio waveform. Connect this directly to an Analog-to-Digital Converter (ADC) pin.

Signal Architecture & DC Bias:

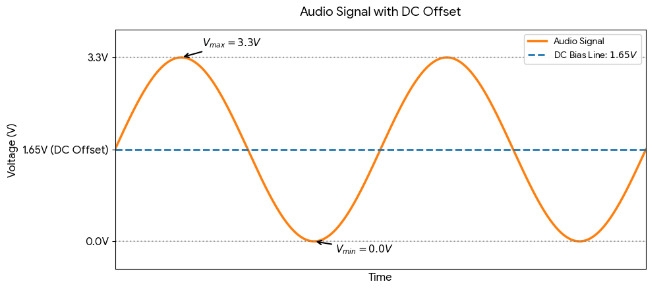

The MAX4466 utilizes a rail-to-rail output system biased halfway up to the supply voltage. When the environment is completely silent, the OUT pin sits steadily at exactly \(\frac{VCC}{2}\). As sound waves hit the microphone, the voltage fluctuates above and below this center bias point.

Because of this DC bias, you must manage how you route the output signal based on your use case: [1]

1. Microcontroller ADC Input: Directly wire the OUT pin to the ADC. Your code will read the center point (e.g., 512 on a 10-bit 5V ADC or ~512 on a 3.3V ADC) as "silence" and compute audio peaks relative to that number.
2. Audio Line-In / Amplifiers: If you are wiring the module into an external audio amplifier or a speaker line-in, you must drop a 10µF decoupling capacitor in series with the OUT line. This acts as a high-pass filter that removes the DC offset voltage, leaving behind a clean, AC audio signal.

Quick Pro-Tips for Clean Audio

• Avoid Power Ripple: Microcontroller 5V lines share power rails with noisy components like Wi-Fi chips, motors, and digital clocks. Always run the MAX4466 off a 3.3V pin if available to dramatically lower background hiss.
• Adjusting Gain: Use a small screwdriver on the backside potentiometer clockwise to increase sensitivity, or counter-clockwise to lower it if your audio keeps clipping. At lowest gain, it sits cleanly at a standard 200mVpp line level.
