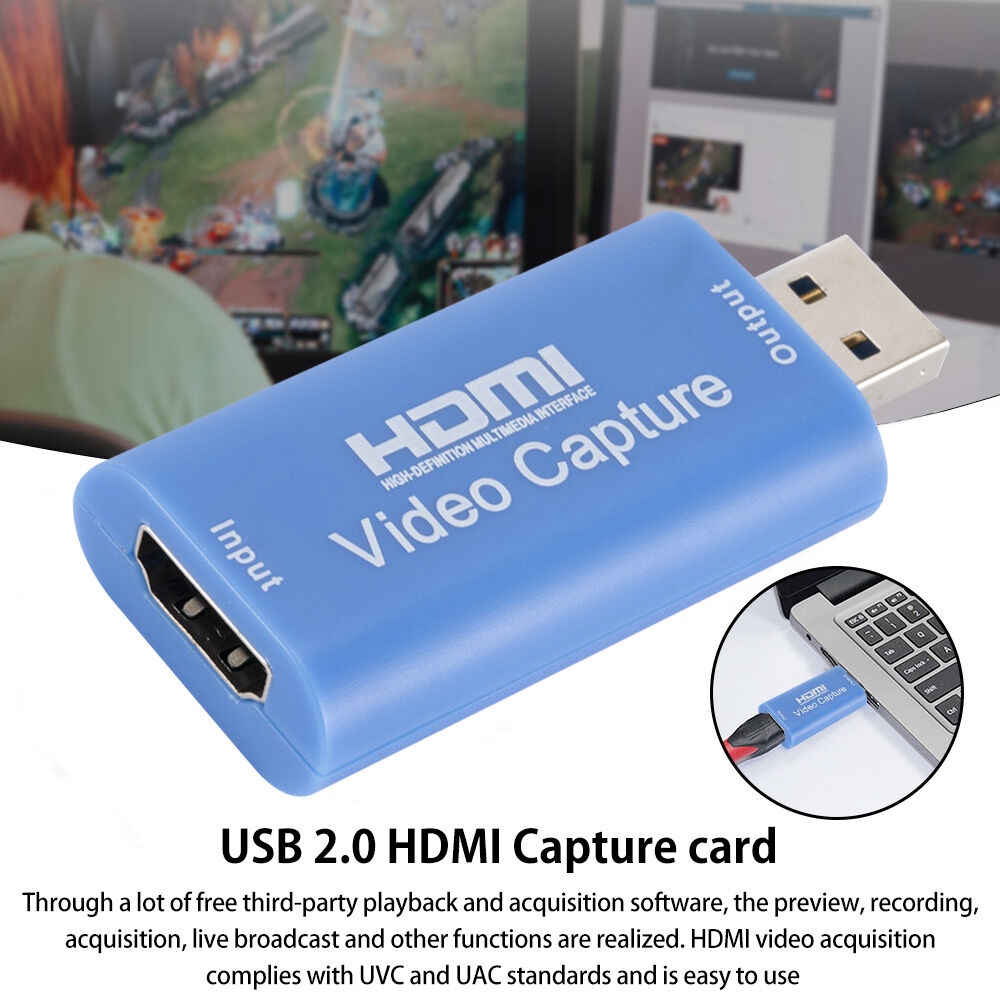

HDMI Video Capture

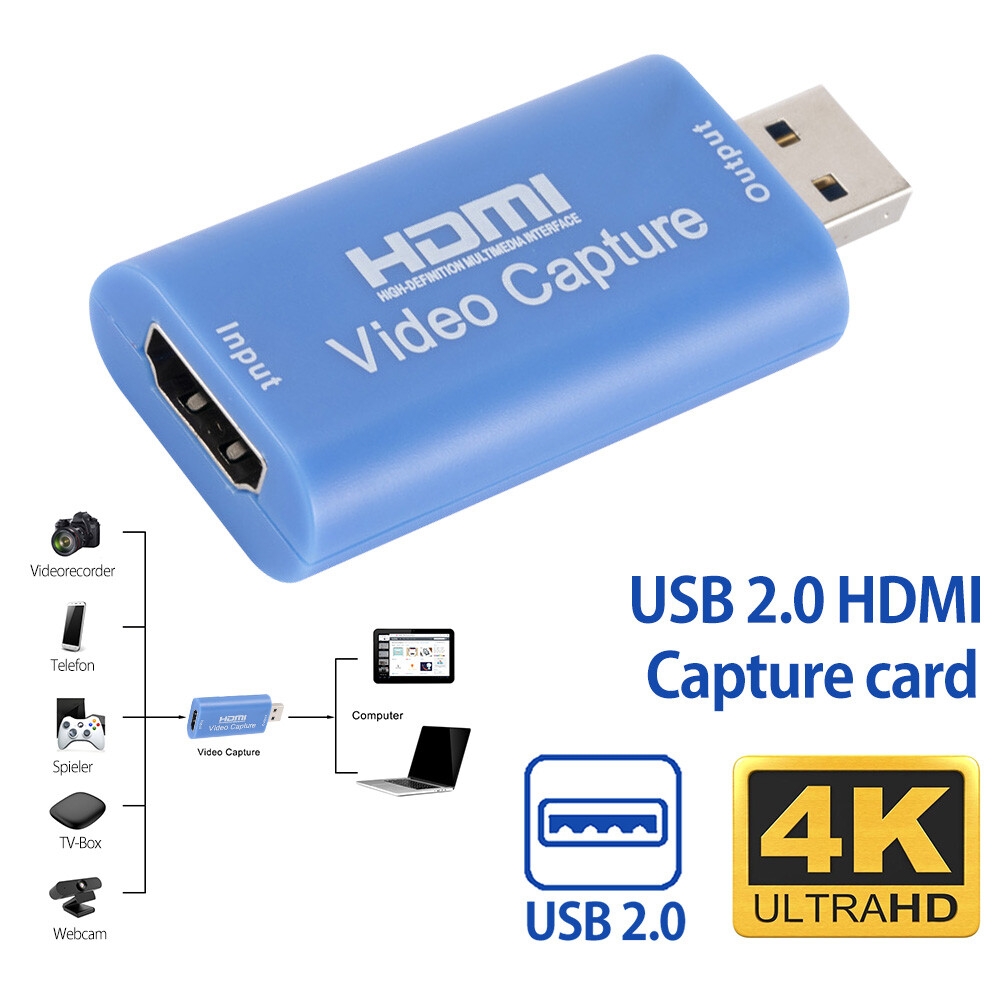

Specification: Input interface: 1*HDMI-compatible interface Output interface: 1*USB2.0 interface HDMI-compatible input: maximum resolution 3840 x 2160@30Hz USB output: maximum resolution 1920 x 1080@30Hz Video output format: YUV, JPEG Audio output format: L-PCM Input cable distance: ≤15m, AWG26 HDMI-compatible standard cable Audio and video capture: comply with UVC (USB video cla) and UAC (USB audio cla) standards Maximum working current: 0.4A/5V DC Working temperature: -10-55 degrees Celsius Size: 63 x 28 x 13 mm (L x W x H) (Due to manual measurement, there will be an error of 1-3 cm.) Support input maximum resolution 3840 x 2160@30Hz Support maximum output resolution 1920 x 1080@30Hz Support 8/10/12 bit deep color Support AWG26 HDMI-compatible standard cable: input up to 15 meters (1080P and below resolution) Support most acquisition software, such as VLC, OBS, Amcap, etc. Supports for Windows, Android and MacOS operating syst Support all third-party player software compatible with UVC and UAC protocols. Connection instructions: 1.Use an HDMI-compatible cable to connect the UHD signal source to the HDMI-compatible input of the video capture. 2.Use a USB cable to connect the computer to the USB port of the video capture. 3.USB video capture (OBS) operation steps: open the software, select the source "+" sign, "video capture device", set the image size, select "studio mode", select "start recording". Feature: 1.The capture card is compact and portable. 2.Plug and play without power supply. 3.High-definition non-stuttering, it can collect HDMI-compatible video and HDMI-compatible audio at the same time, and can transmit audio and video signals to computers and smart phones for preview and storage. 4.Suitable for high-definition acquisition, teaching recording, medical imaging, etc., through many free third-party playback and acquisition software, to achieve preview, recording, acquisition, live broadcast and other functions, HDMI-compatible video acquisition conforms to UVC and UAC standards, easy to use. 5.Easy and convenient to operate and use, very practical and useful. Package Including: 1 x USB capture card

About shipping
Shipping and Packaging All itwill be double checked and well packed before sending.Itwill be dispatched within 2 business days after buyers pay for the order. It usually takes about 14 to 18 working days for delivering the package to the destination(for remote areas,it may take a little longer).

Special Announcement:
Please fill in the correct and detailed consignee, address and phone number in the order. For fast and correct delivery.If you do not receive order within 30 working days,please feel free to contact Customer Service before leaving Negative and Neutral Feedback, we will do our best to help you resolve the problem.TaxNo, you will only pay what is quoted as total cost at checkout, no more. You are not expected to pay any additional duties ores. If you are asked by Customs or our logistic partner to pay duties, please contact our Customer Service .

Your 100% satisfaction is very ant to us
If the product is not on good condition, You can return this product within 14 working days, please contact customer service center before returning.FeedbackYour satisfaction is our first priorityIf you receive the order and it is in good condition,we would be grateful if you would leave us 5 star Positive Feedback for the transaction.
