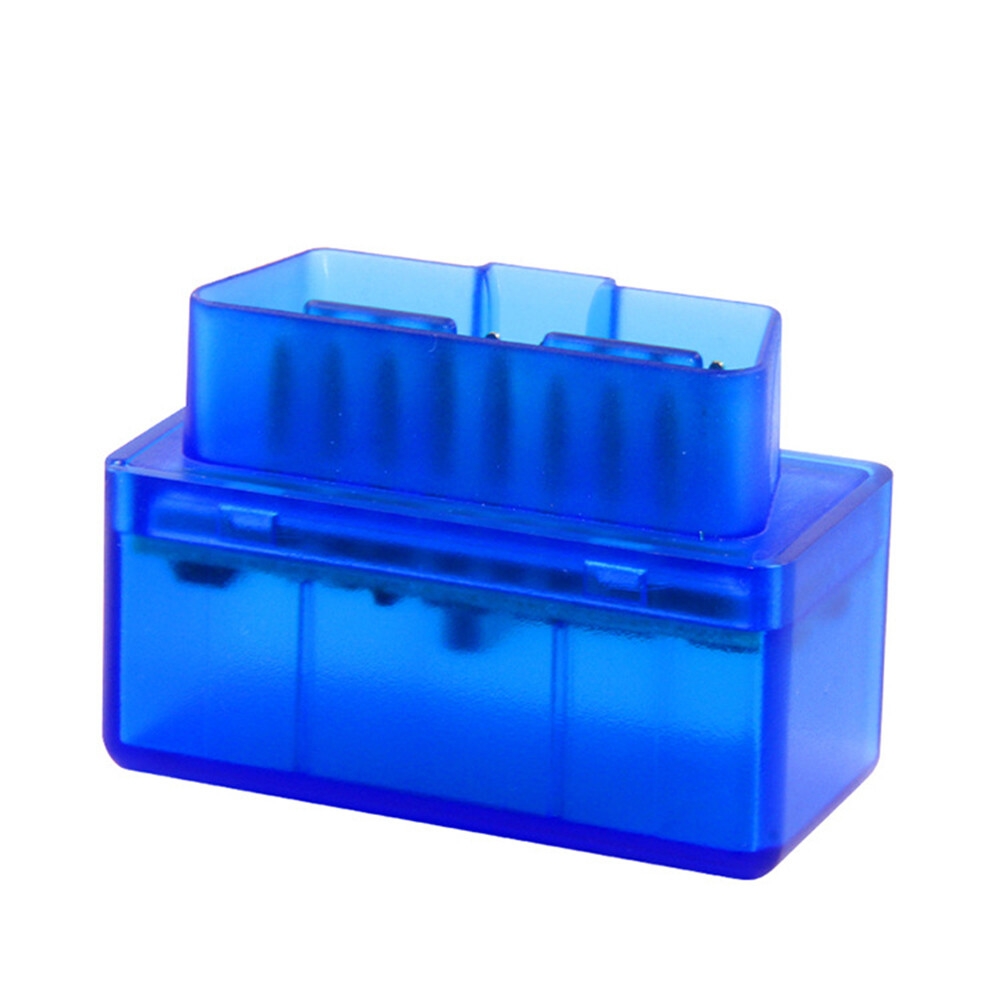

ELM327 OBD2 Car Bluetooth Diagnostic Scan Tool -engine Code Reader

Super Mini Elm327 Bluetooth V2.1 Latest Version

ATTENTION:

1. It only works with car (can not support Diesel or Truck).

2. It only works with Android 4.0-Android 4.4 version.

3. Please connect the item to your phone through bluetooth OBD II option.

4. ELM327 can do MOST of the OBDII vehicles, but it CAN NOT do all models.

5. It CAN NOT work on IOS, if you need an item which work on IOS, pls buy our WIFI ELM327

Highlights:

It supports almost OBD-II protocols.

It is the latest version 2.1

Bluetooth connection, no Batteries, Cables, or Switches.

Bluetooth 5~ 10 meters

Retrieve Fault Codes (DTCs) and clear Check Engine lights.

Can also be used with a PC with a Bluetooth Card.

Features:

Read diagnostic trouble codes, both generic and manufacturer-specific, and display their meaning (over 3000 generic code definitions in the database).

Clear trouble codes and turn off the MIL ("Check Engine" light)

Set the maximum number of responses to obtain

Remove spaces from ECU responses (to speed data transmission)

Store a unique identifier in EEPROM

Set the CAN mask and filter with one command

Easily switch between variable and fixed CAN message lengths

Send CAN remote frames (RTRs)

Display current sensor data, including:

Engine RPM

Calculated Load Value

Coolant Temperature

Fuel System Status

Vehicle Speed

Short Term Fuel Trim

Long Term Fuel Trim

Intake Manifold Pressure

Timing Advance

Intake Air Temperature

Air Flow Rate

Absolute Throttle Position

Oxygen sensor voltages/associated short term fuel trims

Fuel System status

Fuel Pressure

Many others...

Our scanner is suitable to all car brands, but not all car models. Before you make order, please check whether your car model has one of the following protocols.

Support OBDII Protocols:

ISO 9141-2 (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (5 baud init, 10.4 kbaud)

ISO 14230-4 KWP (fast init, 10.4 kbaud)

ISO 15765-4 CAN (11 bit ID, 500 kbaud)

ISO 15765-4 CAN (29 bit ID, 500 kbaud)

ISO 15765-4 CAN (11 bit ID, 250 kbaud)

ISO 15765-4 CAN (29 bit ID, 250 kbaud)

Vehicle Coverage:

Works on almost OBD2 Vehicles (1996 onwards in USA) and EOBD vehicles

for Alfa Romeo/ for Audi / for Bentley/ for BMW/ for Cadillac/ for Chevrolet/ for Chrysler / for Citroen/ for Daewoo/ for Fiat/ for Ford/ for G-M/ for Honda / for Hyundai/ for Isuzu/ for Jaguar/ for Jeep/ for Kia/ for LandRover/ for Lexus/ for Mazda/ for Mercury/ for Mini/ for Nissan/ for Mitsubishi/ for Opel/ for Peugeot/ for Posch/ for Renault/ for Rover/ for Saab/ for Seat/ for Skoda/ for Toyt/ for Vauxhall/ for Volvo/ for VW

For your information:

For your vehicle to be OBD II compliant it must have a 16-pin DLC (Data Link Connector) under the dash and the Vehicle Emission Control Information Label must state that the vehicle is OBD II compliant.

Software Included:

Scantool_net113win (Full Version)

EasyOBDII V2.2 (Free Version)

OBD2Spy (Demo Version)

Scan Master-ELM (Demo Version)

wOBDCRAZY  (Demo Version)

This hardware can match much other software still! But most of them are not free!

Works for Windows98/ME/2000/XP/Vista & Win 7!

This tool does not match abs and airbag system!

Bluetooth pair code: 1234
