Product details
Features:

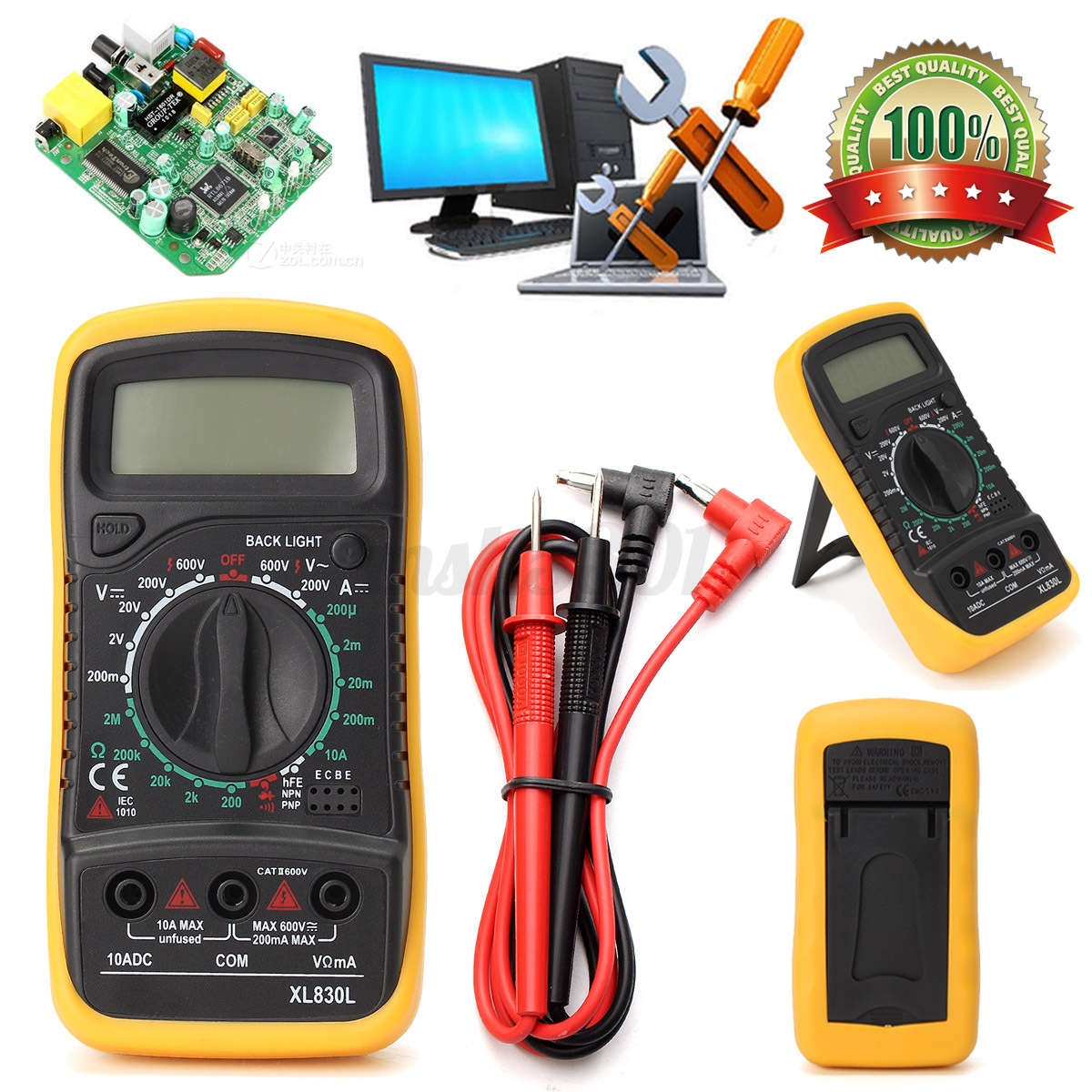

The meter is a held 31/2 digital multimeter for measuring DC and AC Voltage,DC and AC current,Resistance,Diode,Transistor,freguency,trmperature,capacitance and Continuity Test. The Back light of display is optional.
Specifications:
Display: Blue Back-light LCD, 1999 counts, updates 2-3/sec
Measuring method: Dual-slope integration A/D Converter
Operating Environment: 0 to 40 ?C
Power: 9V Battery, NEDA 1604 or 6F22 Type(Not included)
Fuse Protection: 200mA/250V
Size: 138mm x 69mm x 31mm
Weight: Approx. 280g
DC Voltage:
Measurement Range 200VmV-600V ?0.5% of rdg ? 2 digits
Overload Protection: 250V rms
AV Voltage:
Measurement Range 200V-600V ?1.2% ? 10 digits
Overload Protection: 600VDC or rms
DC Current:
Measurement Range DC 2000-10A ?1% of rdg ? 2 digits
Overload Protection: F 200mA/250V fuse (10A range unfused)
Resistance: Measurement Range 200 Ohms - 2M Ohms ?0.8% of rdg ? 3 digits
Maximum Open Circuit Voltage: 3.2V
Overload Protection: 250VDC or rms
Transistor: Measurement Range hFE TEST (0-1000)
Package Included:
1* Digital Multi meter
1 Set of test leads
1* User Manual

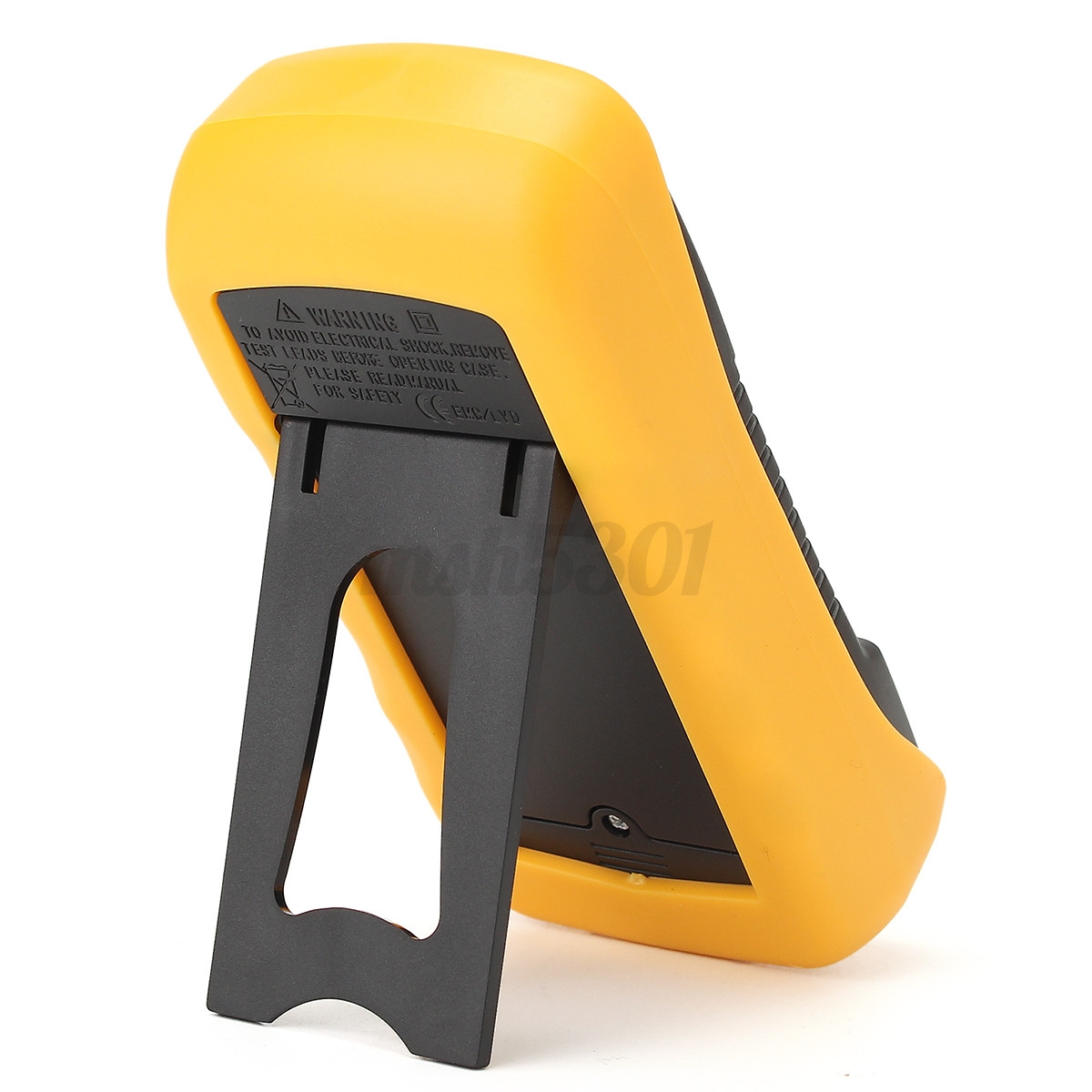

Detail Image
The meter is a held 31/2 digital multimeter for measuring DC and AC Voltage,DC and AC current,Resistance,Diode,Transistor,freguency,trmperature,capacitance and Continuity Test. The Back light of display is optional.
Specifications:
Display: Blue Back-light LCD, 1999 counts, updates 2-3/sec
Measuring method: Dual-slope integration A/D Converter
Operating Environment: 0 to 40 ?C
Power: 9V Battery, NEDA 1604 or 6F22 Type(Not included)
Fuse Protection: 200mA/250V
Size: 138mm x 69mm x 31mm
Weight: Approx. 280g
DC Voltage:
Measurement Range 200VmV-600V ?0.5% of rdg ? 2 digits
Overload Protection: 250V rms
AV Voltage:
Measurement Range 200V-600V ?1.2% ? 10 digits
Overload Protection: 600VDC or rms
DC Current:
Measurement Range DC 2000-10A ?1% of rdg ? 2 digits
Overload Protection: F 200mA/250V fuse (10A range unfused)
Resistance: Measurement Range 200 Ohms - 2M Ohms ?0.8% of rdg ? 3 digits
Maximum Open Circuit Voltage: 3.2V
Overload Protection: 250VDC or rms
Transistor: Measurement Range hFE TEST (0-1000)
Package Included:
1* Digital Multi meter
1 Set of test leads
1* User Manual
Detail Image
Specifications
Key Features
What’s in the box
1 Set of test leads
1* User Manual
Specifications
- SKU: GE779IP1LIWKENAFAMZ
- Product Line: tosyno
- Model: N/A
- Production Country: China
- Size (L x W x H cm): 15.00x10.00x5.00
- Weight (kg): 0.196
- Color: N/A
- Main Material: PVC
